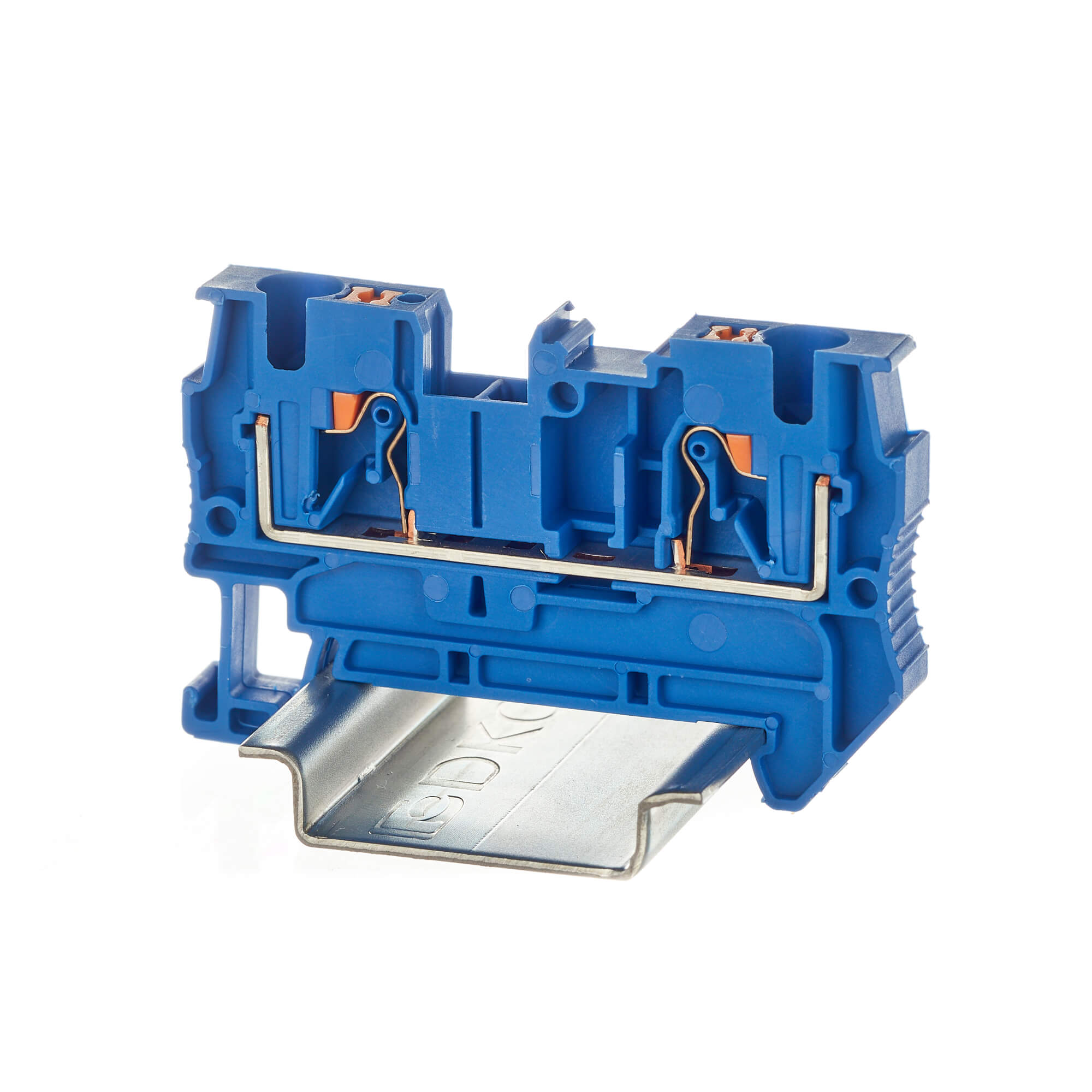

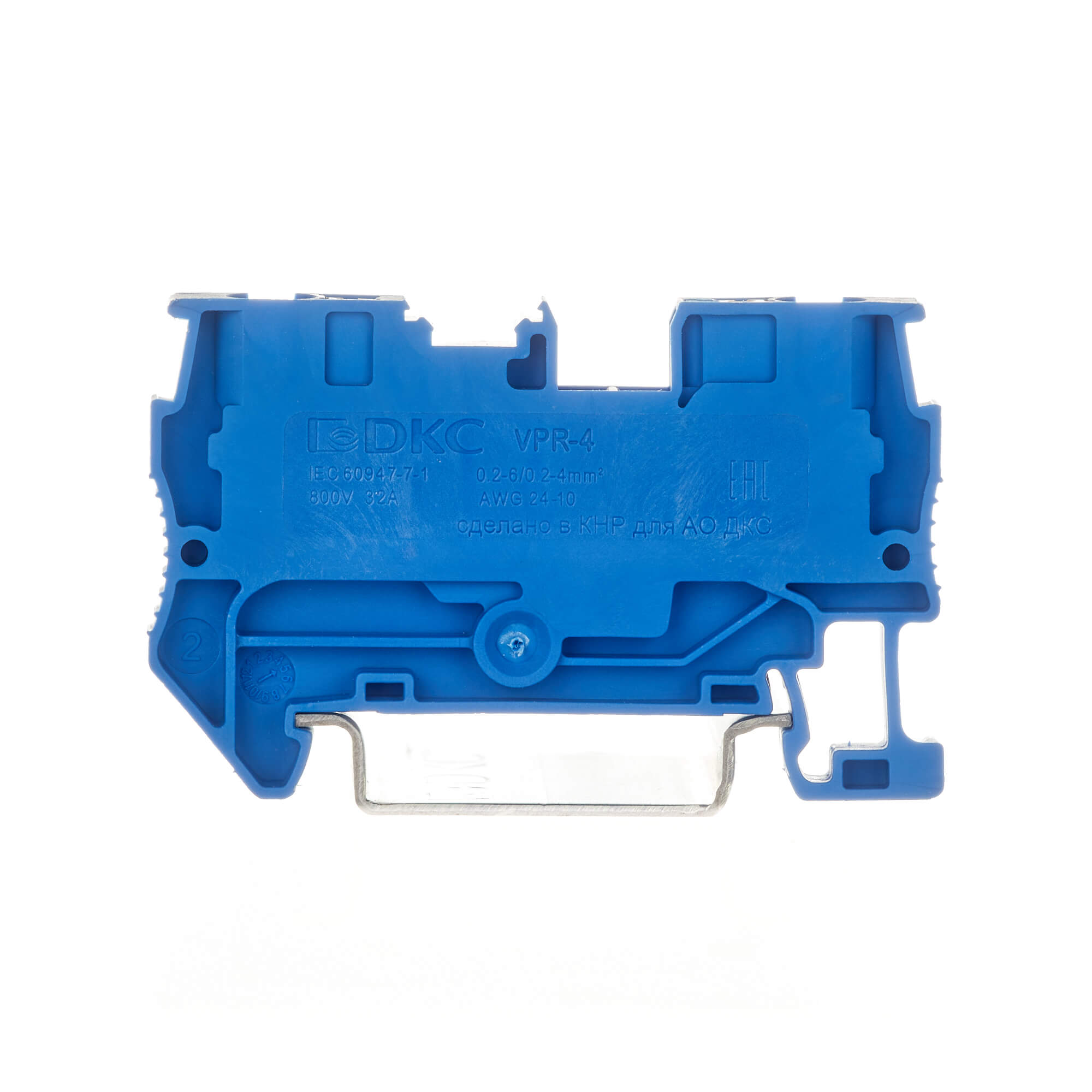

VPR-4-BU
Code:
VPR-4-BU
VPR-4-BU
Code:
VPR-4-BU
Rated current In, A | 32 |
Rated voltage, V | 800 |
Colour | Blue |
Length, mm | 55.9 |
Width/grid dimension, mm | 6.2 |
Height at lowest possible mounting height, mm | 36.8 |
Material insulation body | Thermoplastic |
Operating temperature, °C | -40...105 |
Inflammability class of insulation material according to with UL94 | V0 |
Mounting method | DIN rail (top hat rail) 35 mm |
Connectable conductor cross section solid-core, mm² | 0.2...6 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.2...4 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.14...4 |
Connectable conductor cross section multi-wired, mm² | 0.14...4 |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Number of levels | 1 |
Number of clamp positions per level | 2 |
Closing plate required | Yes |
Internally connected stages | No |
Connection position | Above |
Explosion-tested version 'Ex e' | No |
Number of poles | 2 |
Product type | Terminal block |
Function | entrance |
Clamp type | Push-in |
Width | 6,2 mm |
Number of levels | 1 |
Number of connection points | 2 |
Rated cross-section | 4 mm² |
Max. cross-section | 6 mm² |
Two wires same cross-section | 0,5−1 mm² |
Stripping length | 10−12 mm |
Rated impulse withstand voltage | 8 kV |
Pollution severity | 3 |
Max.current | 32 A |
Blade size | 0,6 × 3,5 |
Material of case | PA |
