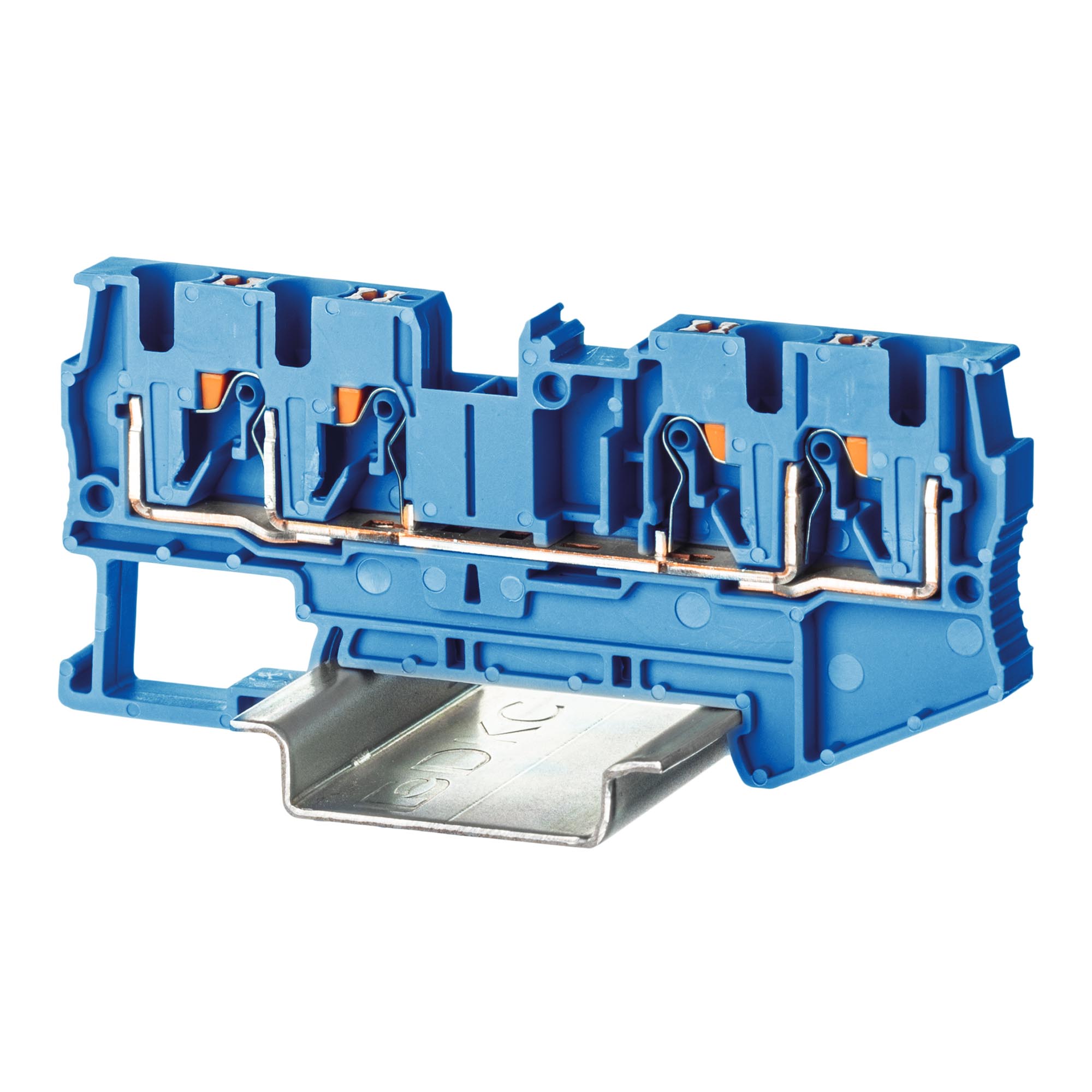

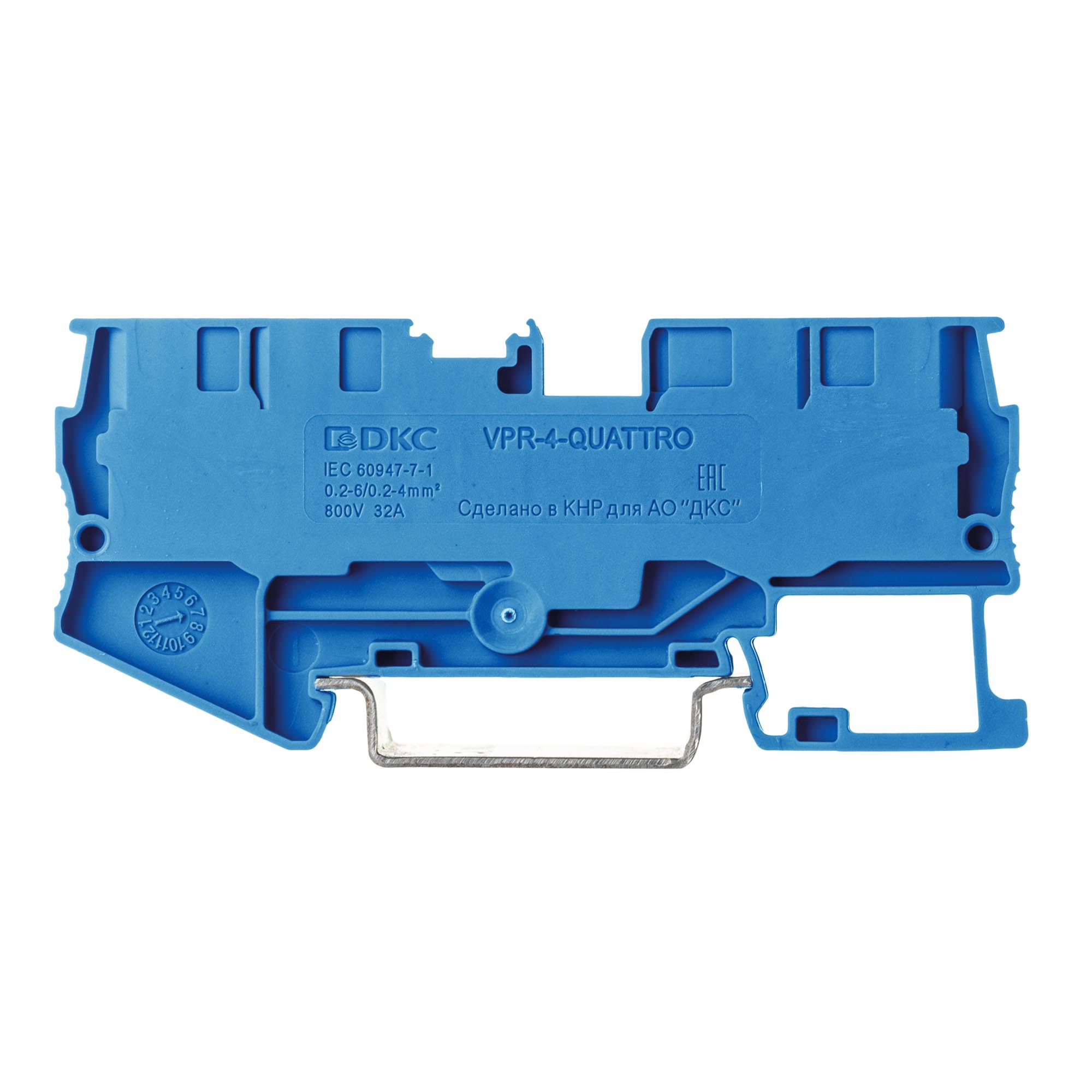

VPR-4-QUATTRO-BU

Code: VPR-4-QUATTRO-BU

VPR-4-QUATTRO-BU

Code: VPR-4-QUATTRO-BU
Rated current In, A 32
Rated voltage, V 800
Colour Blue
Length, mm 79
Width/grid dimension, mm 6.2
Height at lowest possible mounting height, mm 36.9
Material insulation body Thermoplastic
Operating temperature, °C -40...105
Inflammability class of insulation material according to with UL94 V0
Mounting method DIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core, mm² 0.2...6
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.2...4
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.14...4
Connectable conductor cross section multi-wired, mm² 0.14...4
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Number of levels 1
Number of clamp positions per level 4
Closing plate required Yes
Internally connected stages No
Connection position Above
Explosion-tested version 'Ex e' No
Number of poles 4
Product type Terminal block
Function entrance
Clamp type Push-in
Width 6,2 mm
Number of levels 1
Number of connection points 4
Rated cross-section 4 mm²
Max. cross-section 6 mm²
Two wires same cross-section 0,5−1 mm²
Stripping length 10−12 mm
Rated impulse withstand voltage 8 kV
Pollution severity 3
Max.current 32 A
Blade size 0,6 × 3,5
Material of case PA
