No name
Code:
VPR-P-2.5-1
No name
Code:
VPR-P-2.5-1
Model | Pin insert |
Rated voltage, V | 500 |
Rated current In, A | 24 |
Connectable conductor cross section, mm² | 0.14...4 |
Width/grid dimension, mm | 5.2 |
Type of electric connection | Spring clamp connection |
Number of poles | 1 |
Total number of poles (without ground contact) | 1 |
Tackable | No |
Connectable conductor cross section solid-core, mm² | 0.14...4 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.14...2.5 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.14...2.5 |
Connectable conductor cross section multi-wired, mm² | 0.14...2.5 |

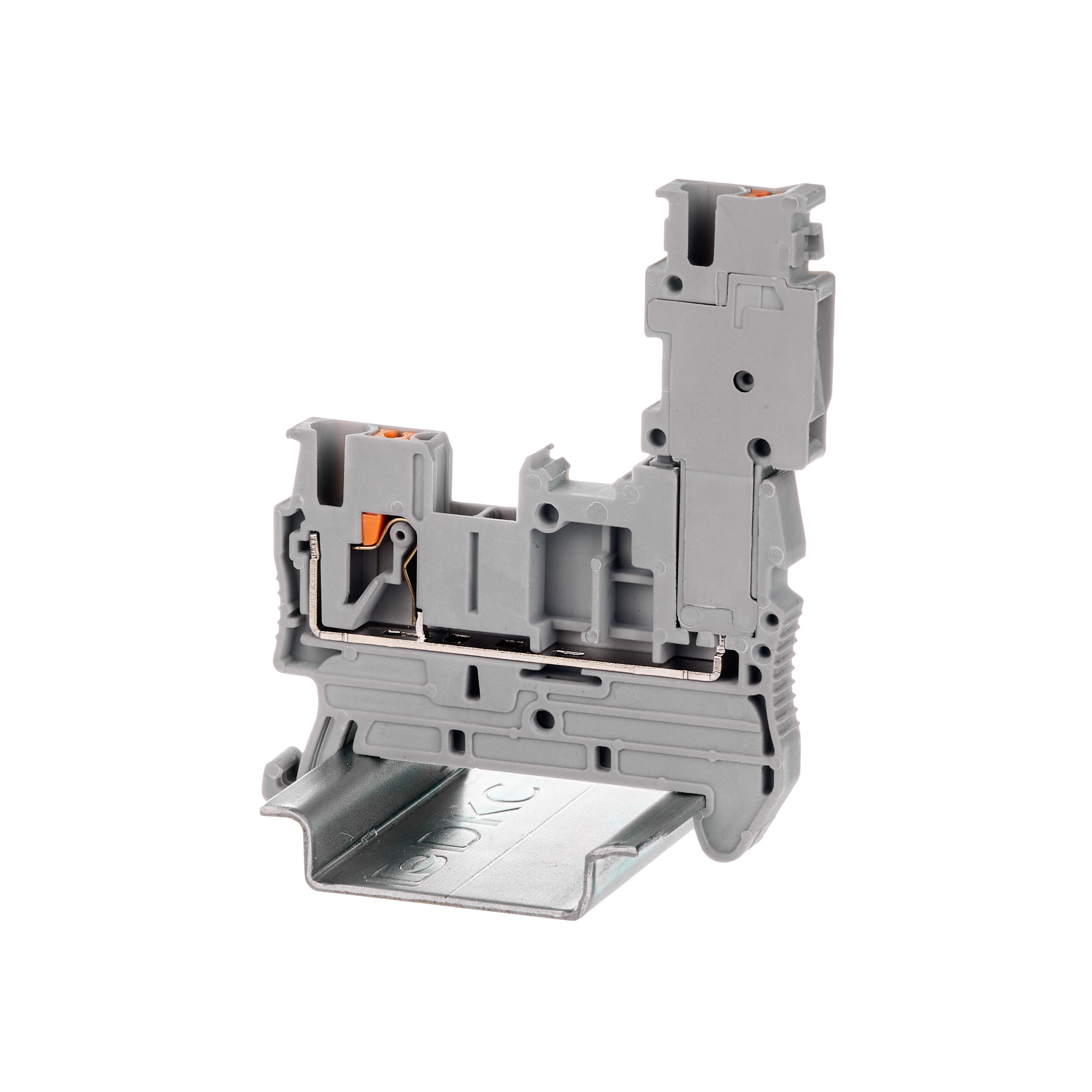

Product type | Terminal block |
Function | Pluggable |
Clamp type | Push-in |
Width | 5,2 mm |
Length | 16 mm |
Height | 40 mm |
Number of levels | 1 |
Number of connection points | 1 |
Rated cross-section | 2,5 mm² |
Max. cross-section | 4 mm² |
Two wires same cross-section | 0,5 mm² |
Stripping length | 8−10 mm |
Rated impulse withstand voltage | 6 kV |
Pollution severity | 3 |
Max.current | 24 A |
Blade size | 0,6 × 3,5 |
Material of case | PA |
