No name

Code: VPR-P-2.5-M

No name

Code: VPR-P-2.5-M

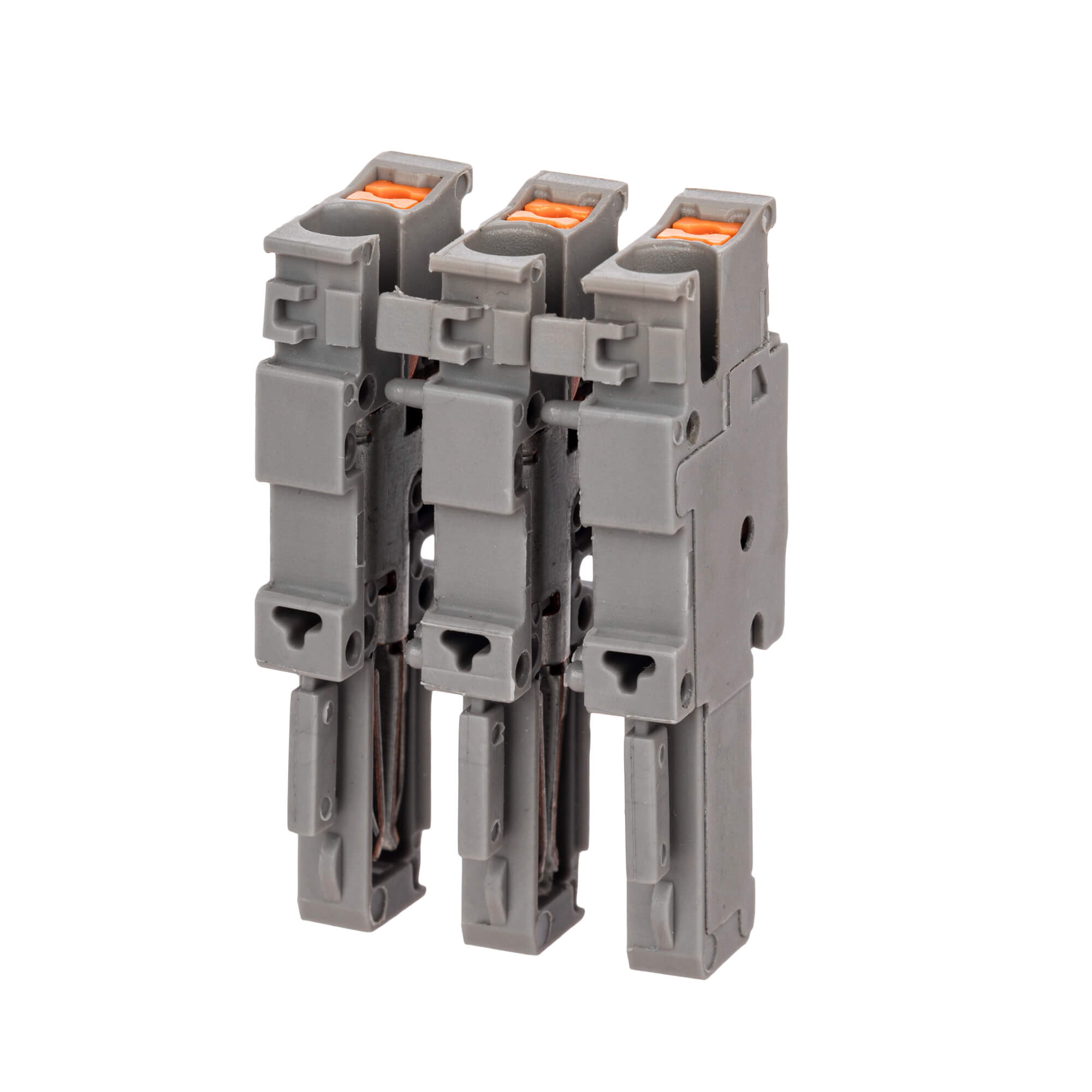

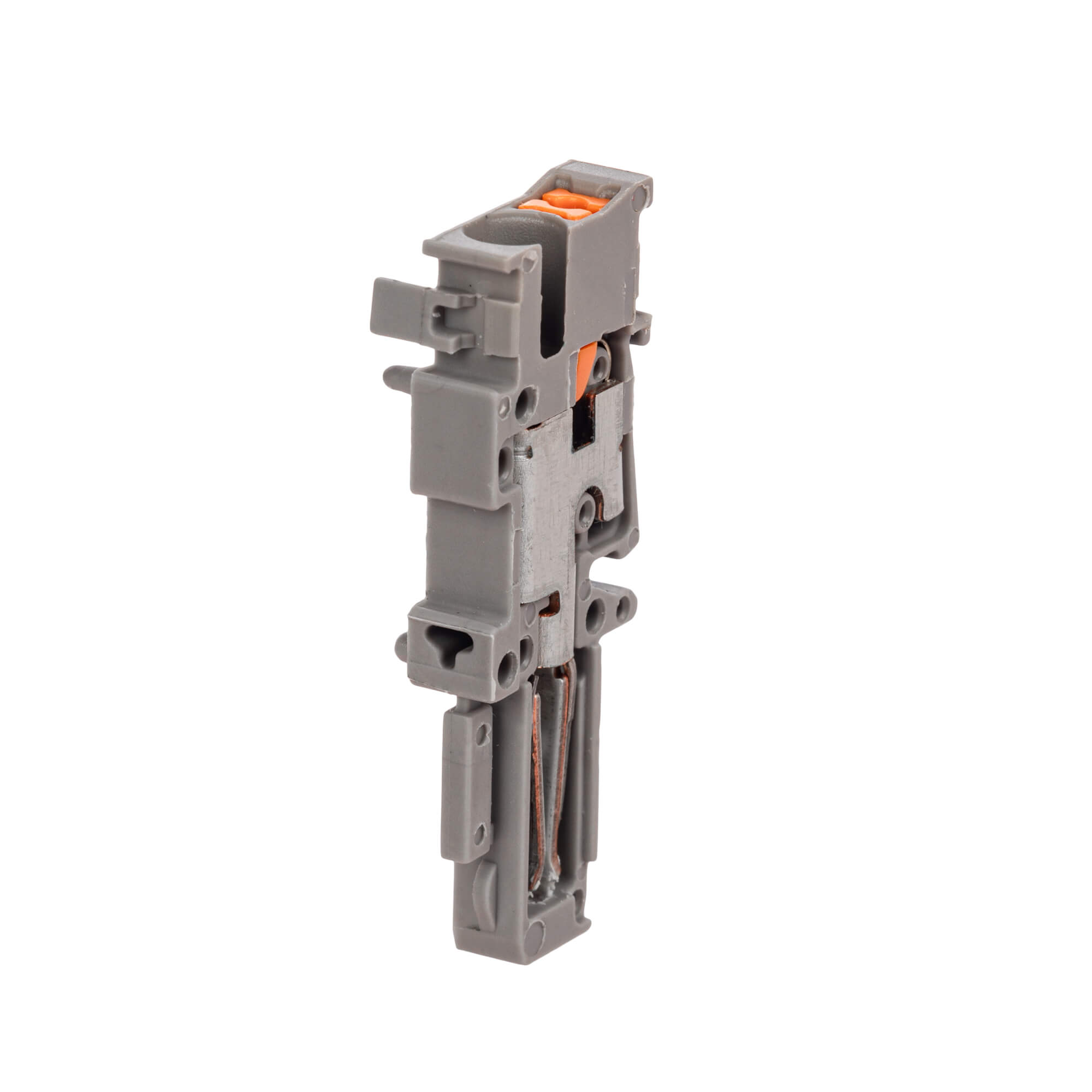

Model Pin insert
Rated voltage, V 500
Rated current In, A 24
Connectable conductor cross section, mm² 0.14...4
Width/grid dimension, mm 5.2
Type of electric connection Spring clamp connection
Number of poles 1
Total number of poles (without ground contact) 1
Tackable Yes
Connectable conductor cross section solid-core, mm² 0.14...4
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.14...2.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.14...2.5
Connectable conductor cross section multi-wired, mm² 0.14...2.5
Product type Terminal block
Function Pluggable
Clamp type Push-in
Width 5,2 mm
Length 16 mm
Height 40 mm
Assembly position Center
Number of levels 1
Number of connection points 1
Rated cross-section 2,5 mm²
Max. cross-section 4 mm²
Two wires same cross-section 0,5 mm²
Stripping length 8−10 mm
Rated impulse withstand voltage 6 kV
Pollution severity 3
Max.current 24 A
Blade size 0,6 × 3,5
Material of case PA
