Double-wall tube HDPE rigid for cabling system ? 110 mm, SN 12, 750N, 6 m, black color
Code: 160911A
Double-wall tube HDPE rigid for cabling system ? 110 mm, SN 12, 750N, 6 m, black color
Code: 160911A
Colour | Black |
Model | Rigid |

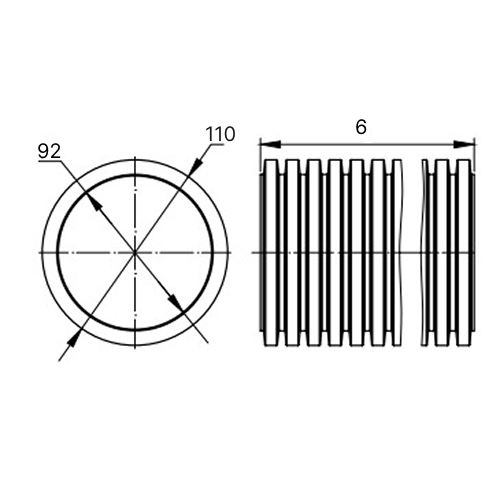

Outer diameter, mm | 110 |
Inner diameter, mm | 91 |
Surface protection | Untreated |
Material quality | Polyethylene (PE) |
Shape | Outer side ribbed, inner side plain |
Material | Plastic |
Transparent | Yes |
Surface polished | No |
Length | 6000 mm |
8 диаметров мм | 4400 mm |
Color | Black |
Material | PVC |
-5°С ... +60°С | -40°С ... +90°С |
Ingress Protection rating, IP | IP44 (IP55, IP67) |
от -25°С до +60°С | from -40°С to +90°С |
Cord for wires | No |
ТУ 2248-012-47022248-2009 | Technical specifications 2248-019-47022248-2008 |
3 года | 2 years |
15 лет | 50 years |
Ring stiffness | 12 kPa |
Compression resistance | 1030 N |
Complete set of broaching | No |
Packing type | Segments |
Packing standards | 630\6 m |
