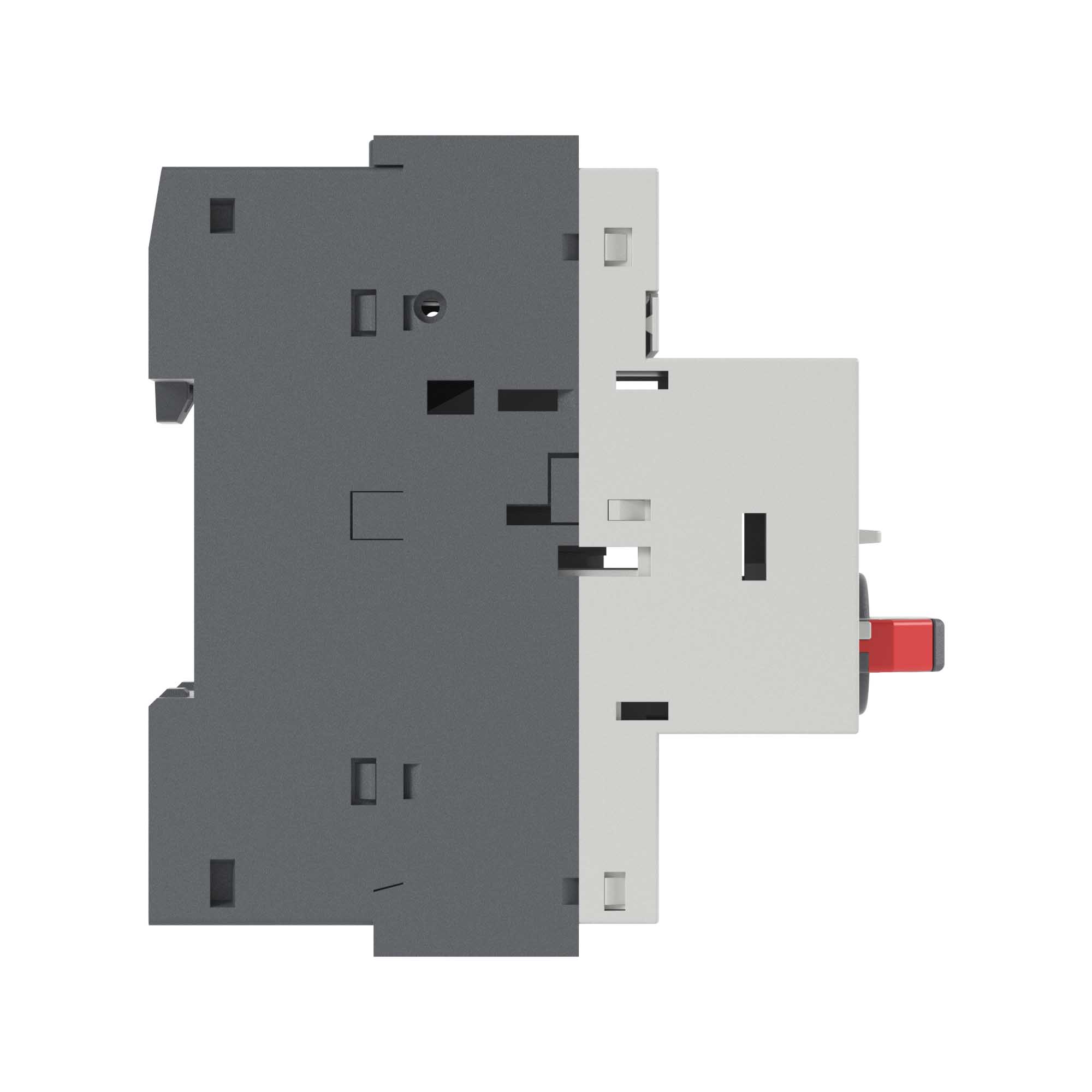

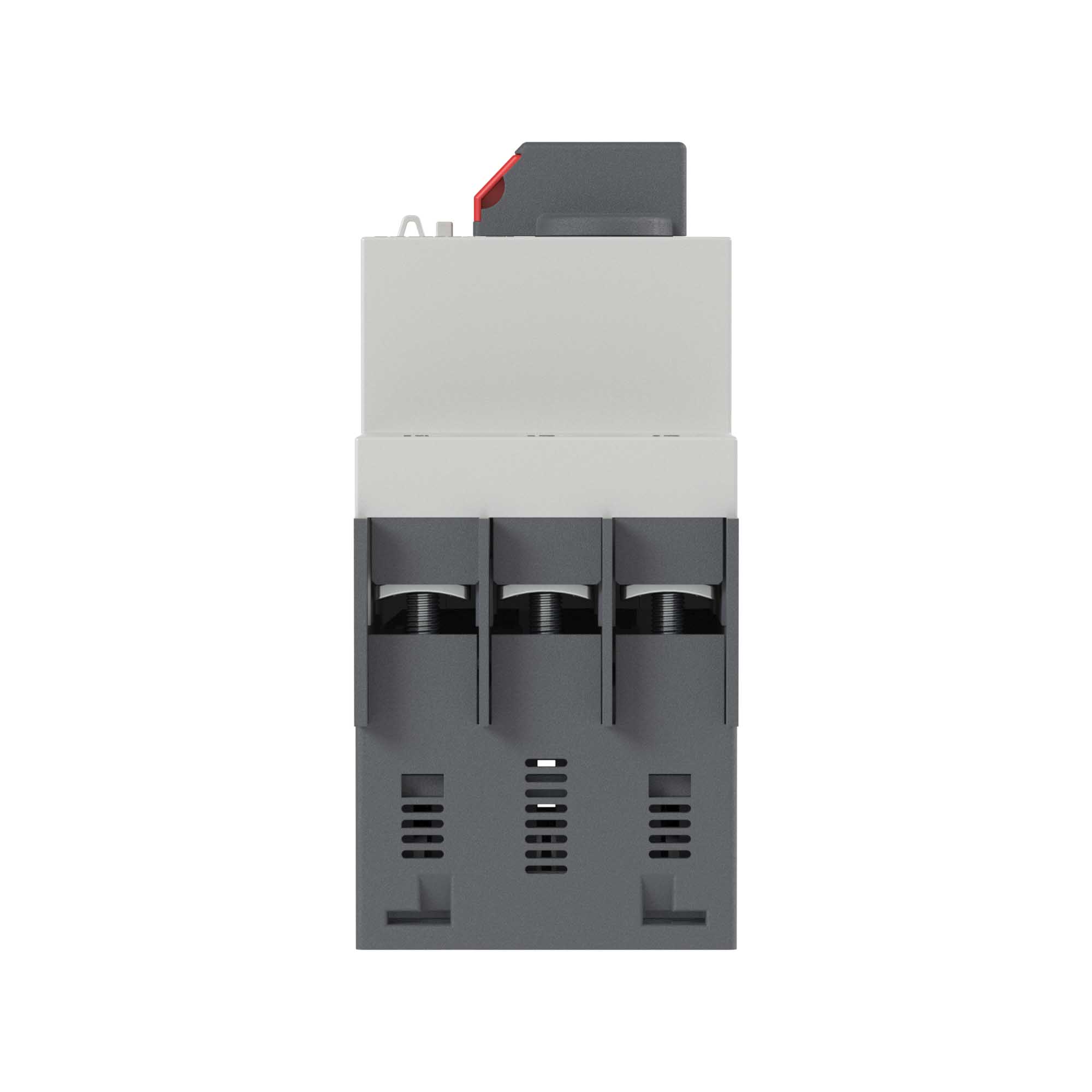

MP132MS2M16 MPCB 32A with Magnetic Trip 1.6 A
Code:
DMP32MT-1P60
MP132MS2M16 MPCB 32A with Magnetic Trip 1.6 A
Code:
DMP32MT-1P60
Width, mm | 45 |
Height, mm | 97.3 |
Depth, mm | 96 |
With integrated auxiliary switch | No |
With integrated under voltage release | No |
Number of poles | 3 |
Rated operating voltage, V | 400...400 |
Degree of protection (IP) | IP20 |
With thermal protection | No |
Type of electrical connection of main circuit | Screw connection |
Type of control element | Turn button |
Switch off technique | Magnetic |
Device construction | Complete device in housing |
Type of contactors | DMP32 |
Operating voltage | 400V |
Operating current | 1.6 A |
Tripping type | Magnetic |
Overload protection | No |
Short Circuit Breaking Capacity | 100 kA |
