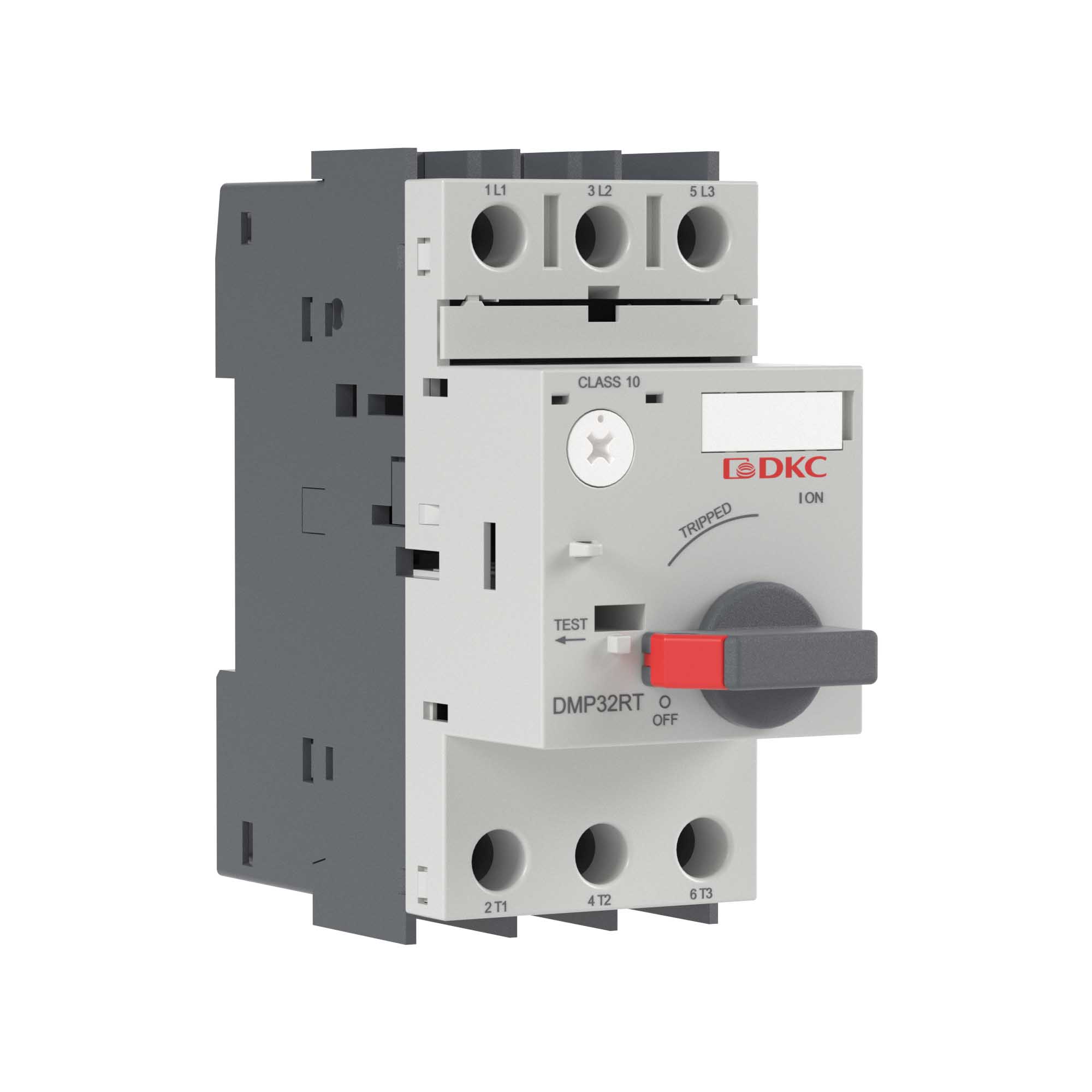

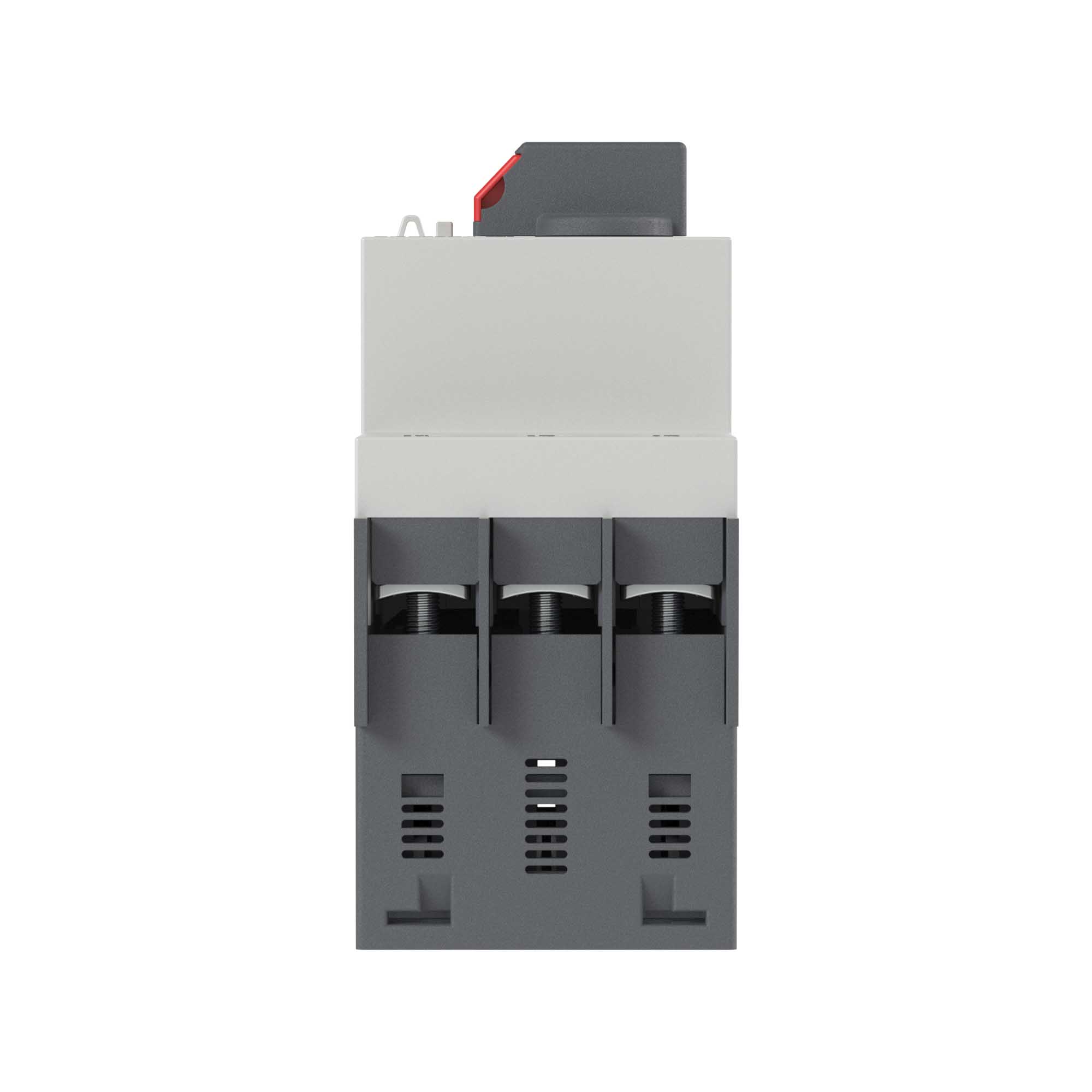

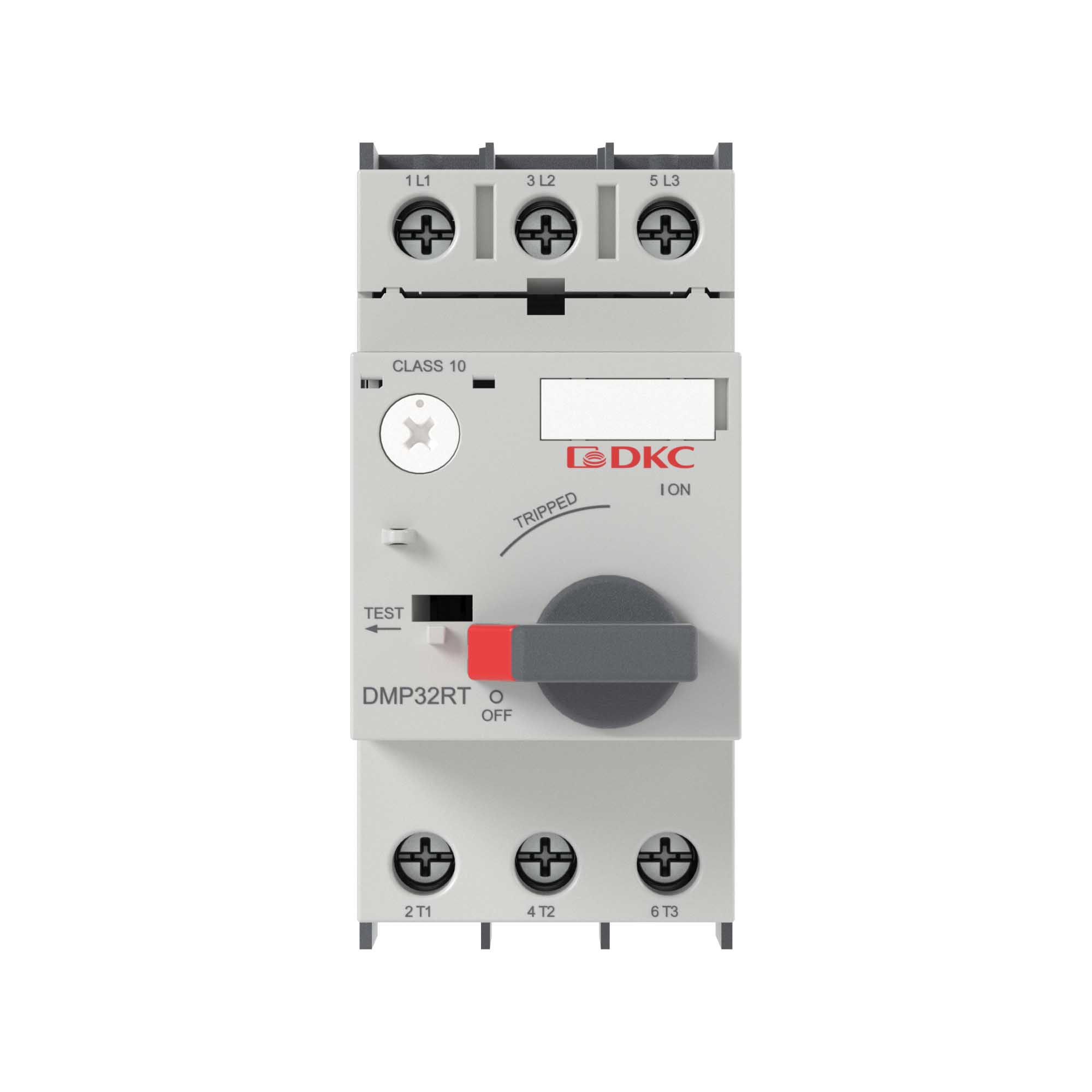

MP132TS2H10 MPCB 32A with Thermal and Magnetic Trip 6.3 ~ 10 A
Code:
DMP32RT-0010
MP132TS2H10 MPCB 32A with Thermal and Magnetic Trip 6.3 ~ 10 A
Code:
DMP32RT-0010
Width, mm | 45 |
Height, mm | 97.3 |
Depth, mm | 96 |
Rated operation power at AC-3, 400 V, kW | 4 |
With integrated auxiliary switch | No |
Rated permanent current Iu, A | 8.5 |
With integrated under voltage release | No |
Number of poles | 3 |
Rated operating voltage, V | 400...400 |
Overload release current setting, A | 6.3...10 |
Degree of protection (IP) | IP20 |
With thermal protection | Yes |
Type of electrical connection of main circuit | Screw connection |
Type of control element | Turn button |
Switch off technique | Thermomagnetic |
Rated operation power at AC-3, 230 V, kW | 2.2 |
Rated short-circuit breaking capacity lcu at 400 V, AC, kA | 100 |
Phase failure sensitive | Yes |
Device construction | Complete device in housing |
Type of contactors | DMP32 |
Operating voltage | 400V |
Operating current | 10A |
Tripping type | Thermal + Magnetic |
Overload protection | Yes |
Current Adjustment Range | 6.3 - 10 A |
Short Circuit Breaking Capacity | 100 kA |
