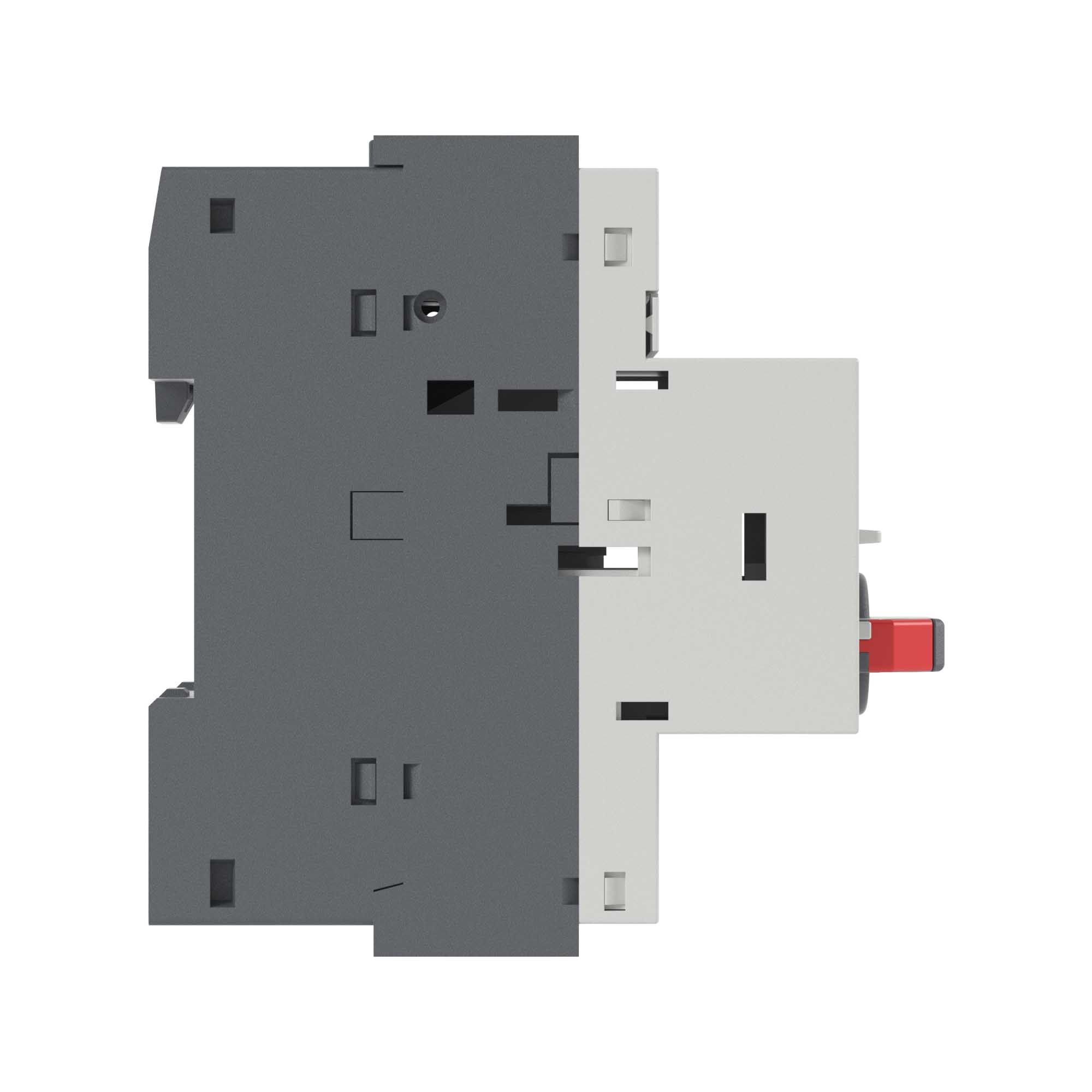

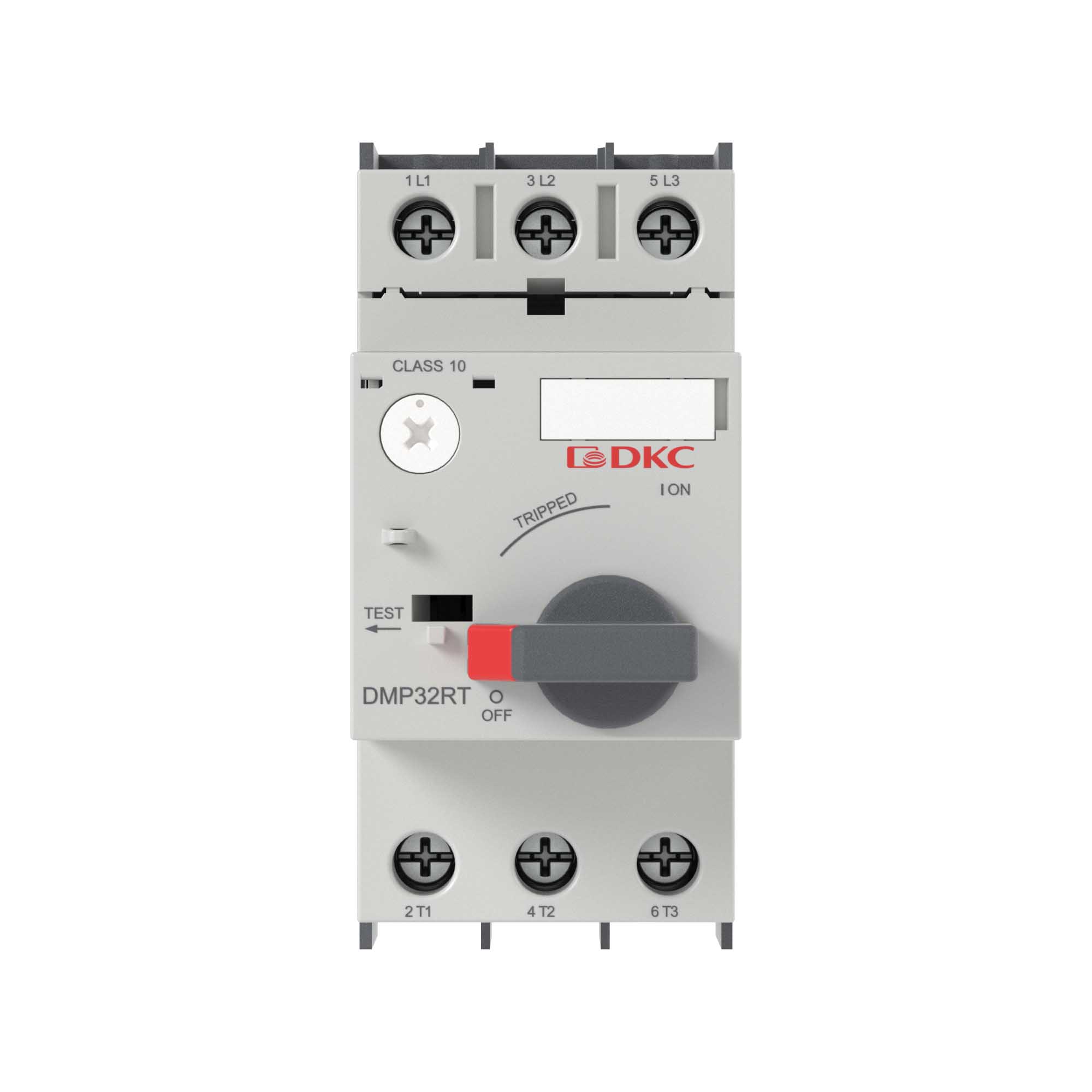

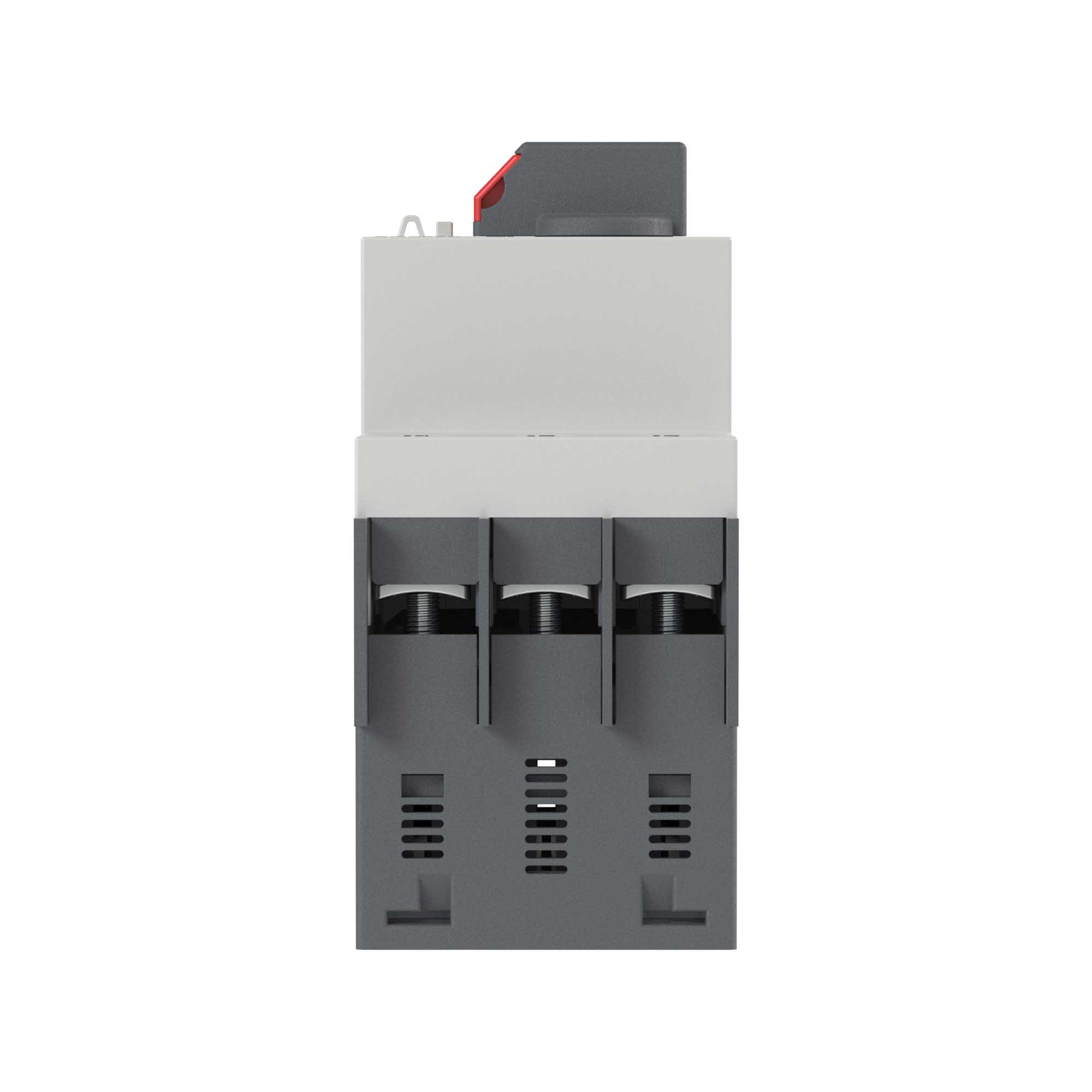

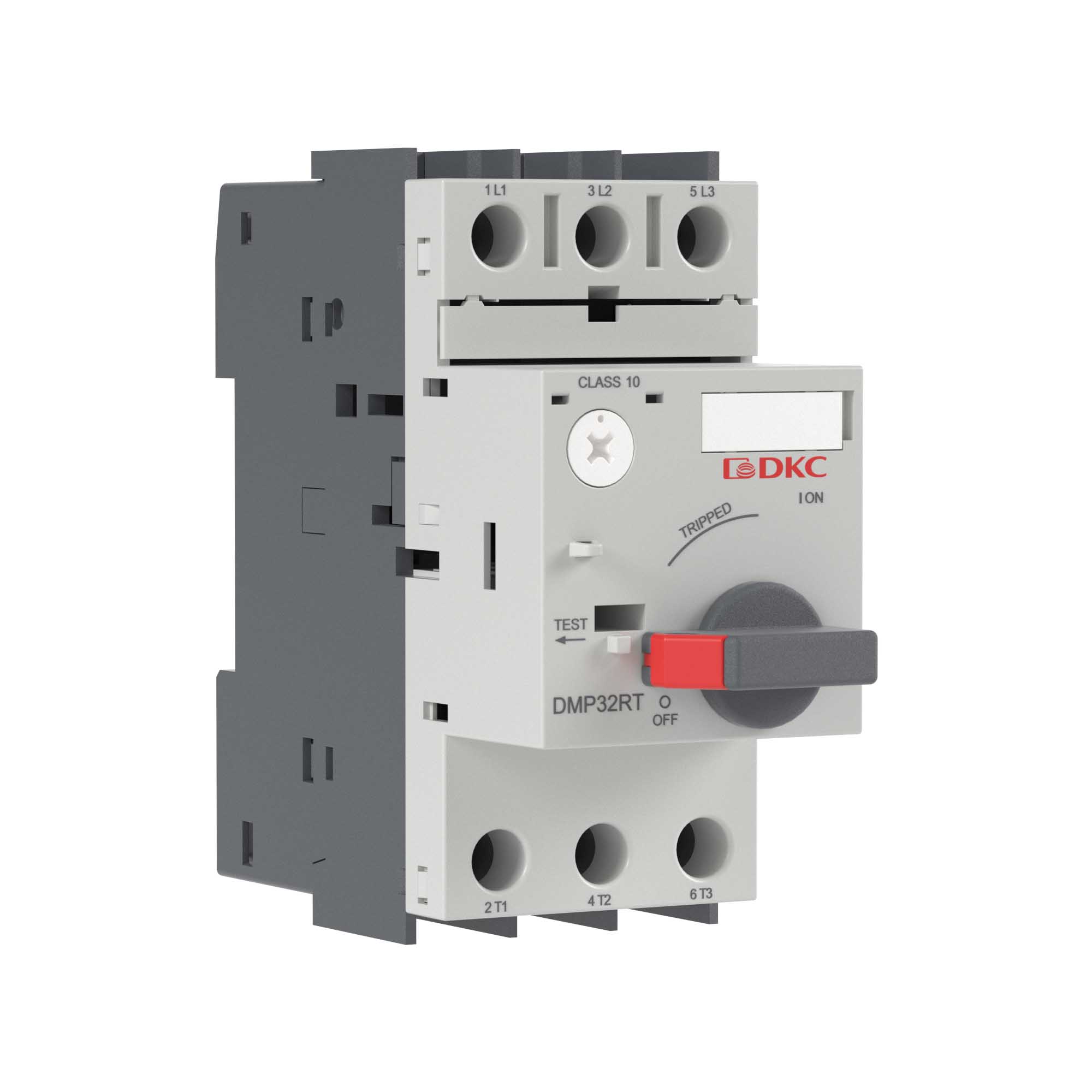

MP132TS2L25 MPCB 32A with Thermal and Magnetic Trip 0.16 ~ 0.25 A

Code: DMP32RT-0P25

MP132TS2L25 MPCB 32A with Thermal and Magnetic Trip 0.16 ~ 0.25 A

Code: DMP32RT-0P25
Width, mm 45
Height, mm 97.3
Depth, mm 96
Rated operation power at AC-3, 400 V, kW 0.06
With integrated auxiliary switch No
Rated permanent current Iu, A 0.2
With integrated under voltage release No
Number of poles 3
Rated operating voltage, V 400...400
Overload release current setting, A 0.16...0.25
Degree of protection (IP) IP20
With thermal protection Yes
Type of electrical connection of main circuit Screw connection
Type of control element Turn button
Switch off technique Thermomagnetic
Rated short-circuit breaking capacity lcu at 400 V, AC, kA 100
Phase failure sensitive Yes
Device construction Complete device in housing
Type of contactors DMP32
Operating voltage 400V
Operating current 0.25 A
Tripping type Thermal + Magnetic
Overload protection Yes
Current Adjustment Range 0.16 - 0.25 A
Short Circuit Breaking Capacity 100 kA
