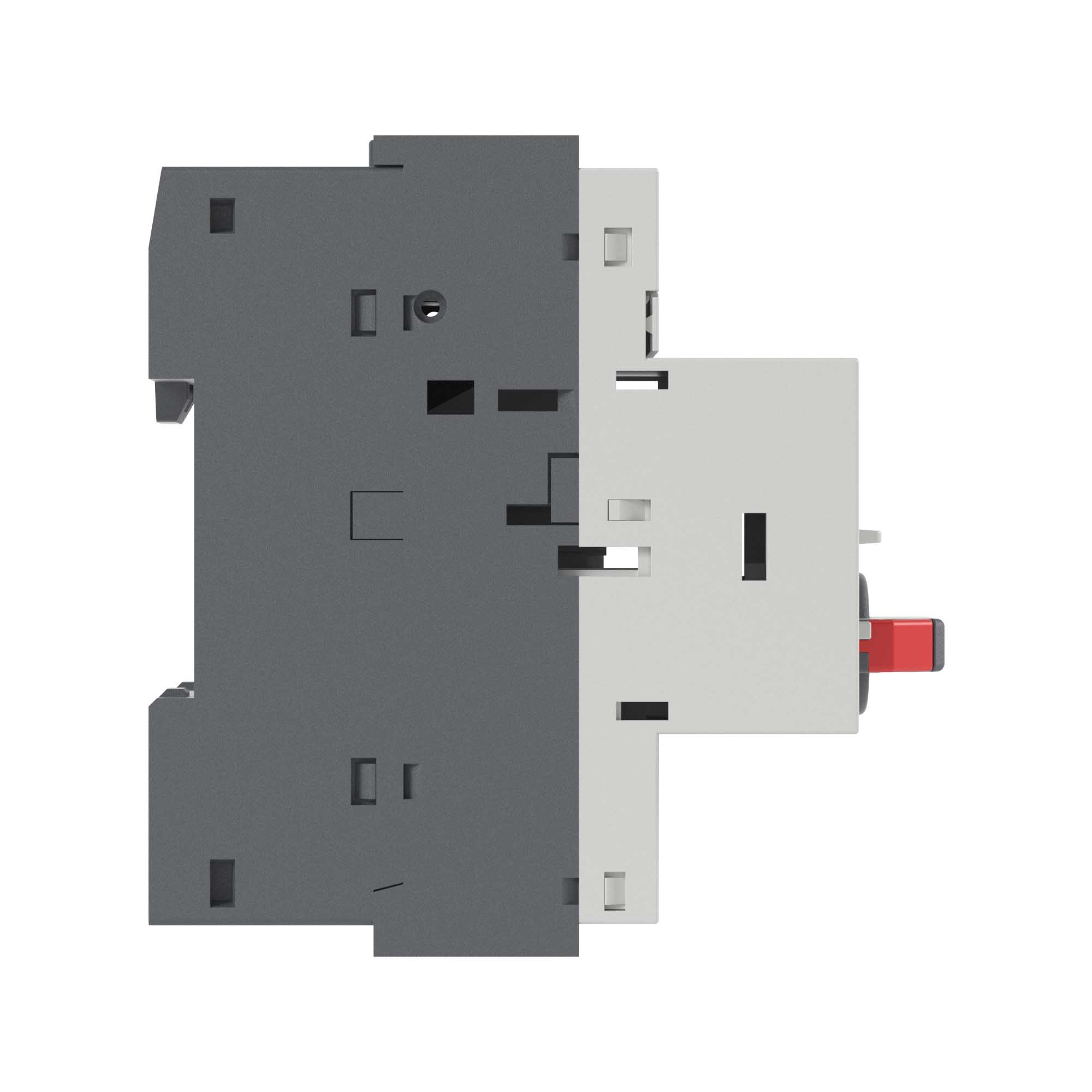

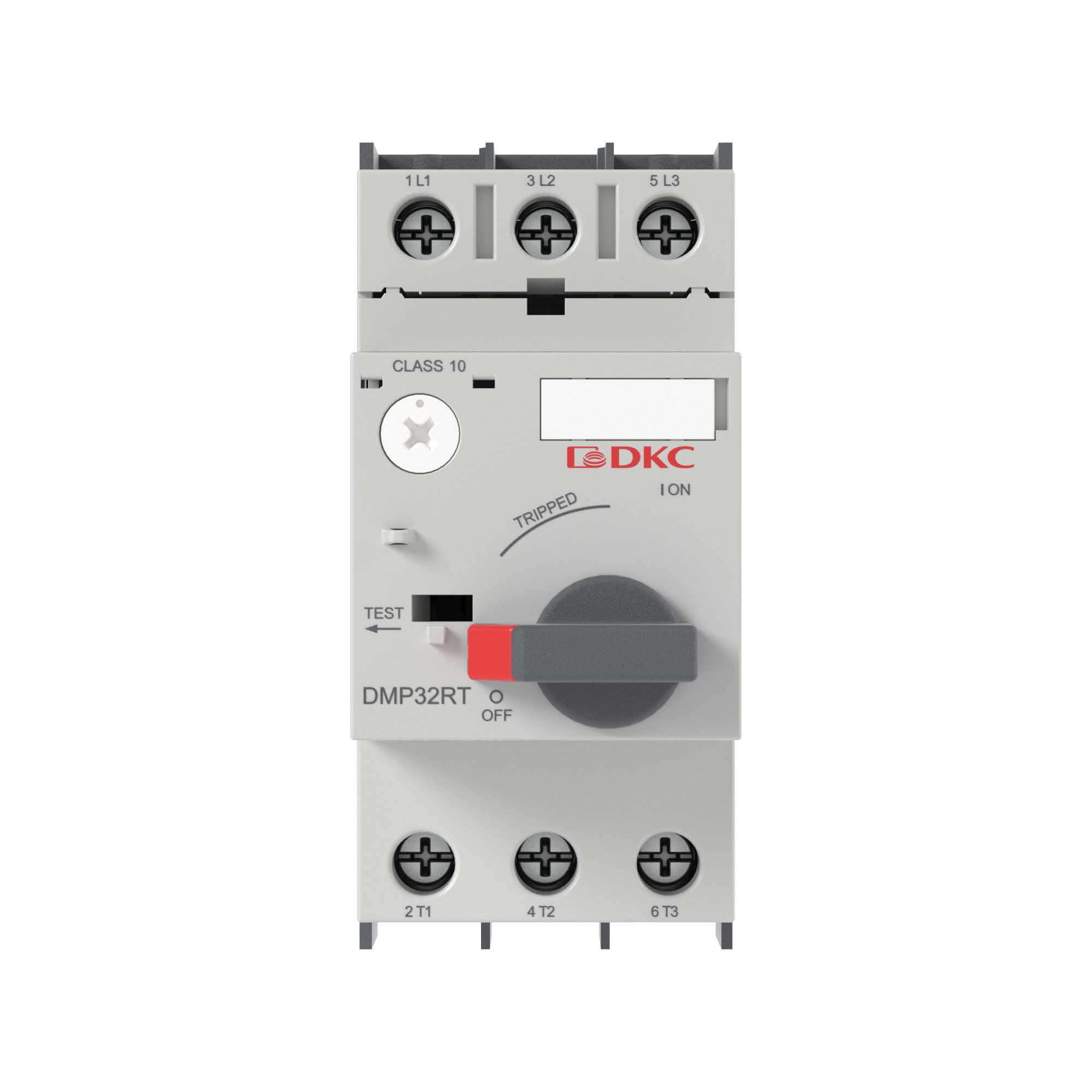

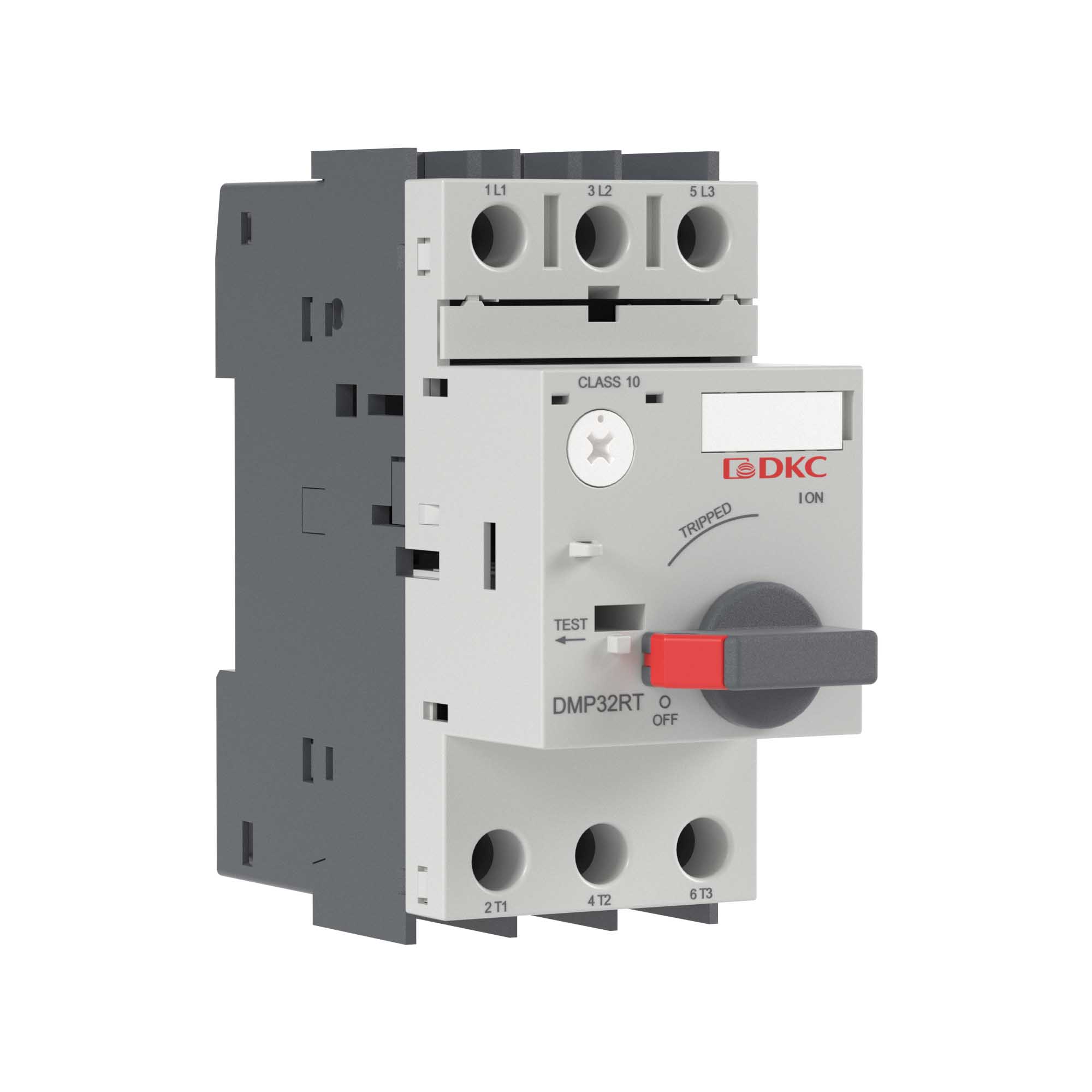

MP132TS2L40 MPCB 32A with Thermal and Magnetic Trip 0.25 ~ 0.4 A
Code:
DMP32RT-0P40
MP132TS2L40 MPCB 32A with Thermal and Magnetic Trip 0.25 ~ 0.4 A
Code:
DMP32RT-0P40
Width, mm | 45 |
Height, mm | 97.3 |
Depth, mm | 96 |
Rated operation power at AC-3, 400 V, kW | 0.09 |
With integrated auxiliary switch | No |
Rated permanent current Iu, A | 0.3 |
With integrated under voltage release | No |
Number of poles | 3 |
Rated operating voltage, V | 400...400 |
Overload release current setting, A | 0.25...0.40 |
Degree of protection (IP) | IP20 |
With thermal protection | Yes |
Type of electrical connection of main circuit | Screw connection |
Type of control element | Turn button |
Switch off technique | Thermomagnetic |
Rated short-circuit breaking capacity lcu at 400 V, AC, kA | 100 |
Phase failure sensitive | Yes |
Device construction | Complete device in housing |
Type of contactors | DMP32 |
Operating voltage | 400V |
Operating current | 0.40 A |
Tripping type | Thermal + Magnetic |
Overload protection | Yes |
Current Adjustment Range | 0.25 - 0.4 A |
Short Circuit Breaking Capacity | 100 kA |
