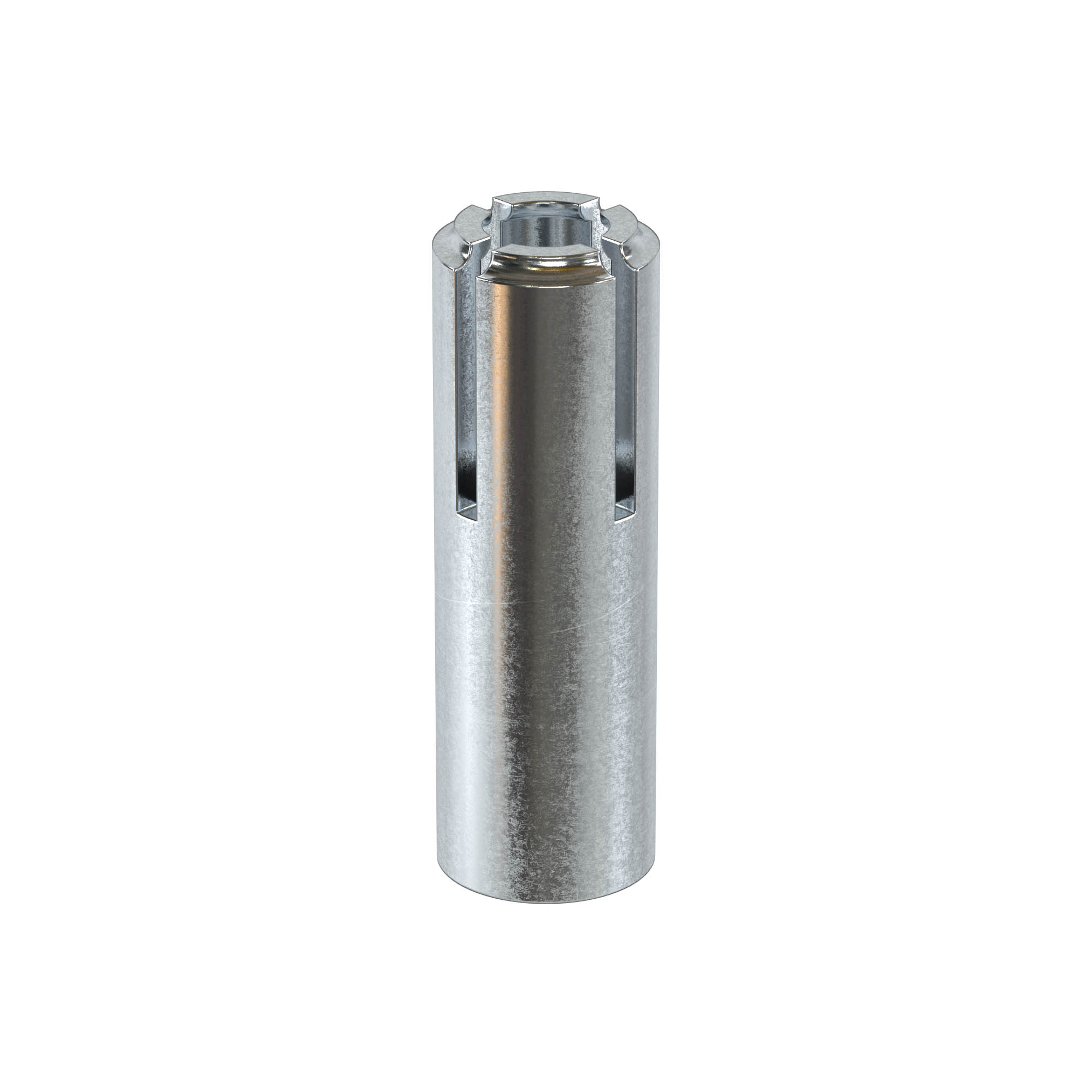

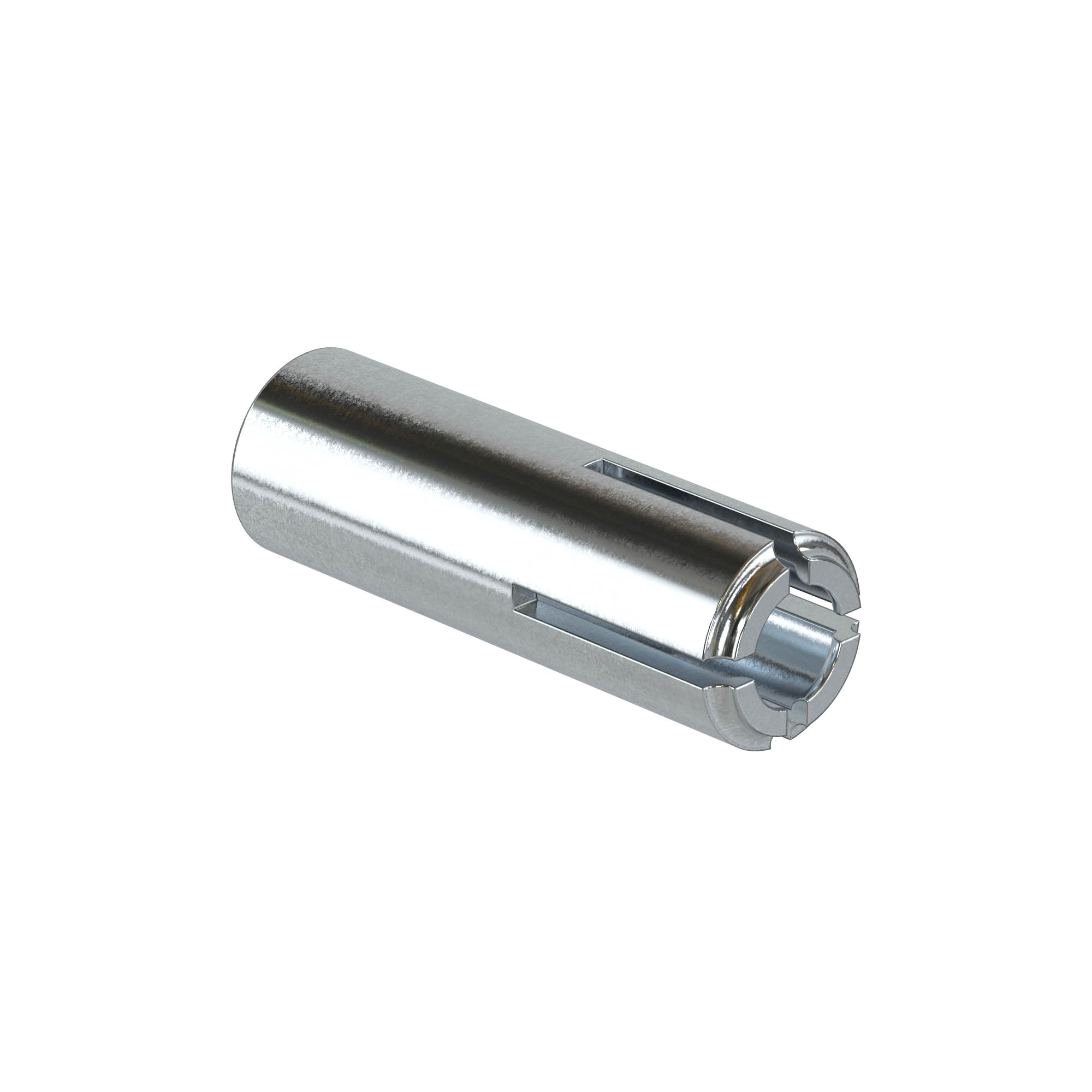

Drop in metal anchor М16

Code: CM401665

Drop in metal anchor М16

Code: CM401665
Model Impact
Surface protection Galvanic/electrolytic zinc plated
Min. drill hole depth, mm 68
Material sleeve Steel
Length, mm 65
Thread size (metric) 16
Drill hole diameter, mm 20
Self boring Yes
App. load pull zone, kN 26.9
With approval Yes
Fastening provision Stud
Material Pre-galvanized steel
Threading M16
Length 65 mm
Type Scoring anchor
