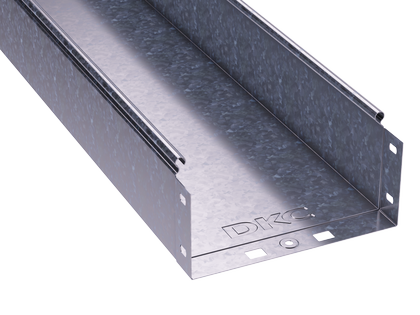

Non Perforated Straight Element 150х100 L 2000

Code: 35112

Non Perforated Straight Element 150х100 L 2000

Code: 35112
Colour Light grey
Width, mm 150
Model Without connector
Height, mm 100
Surface protection Sendzimir galvanized
Material thickness, mm 0.7
Side wall perforation Yes
Material quality Steel
Length, mm 2000
Material Steel
Mounting perforation in bottom No
Useful cross section, mm² 14800
Suitable for circuit integrity Yes
Product type Non perforated straight elements
Type Metal sheet trays - " S5 Combitech"
Height 100 mm
Length 2000 mm
Thickness 0.7 mm
Material Pre-galvanized
Width 150 mm
Accessories
Analogs

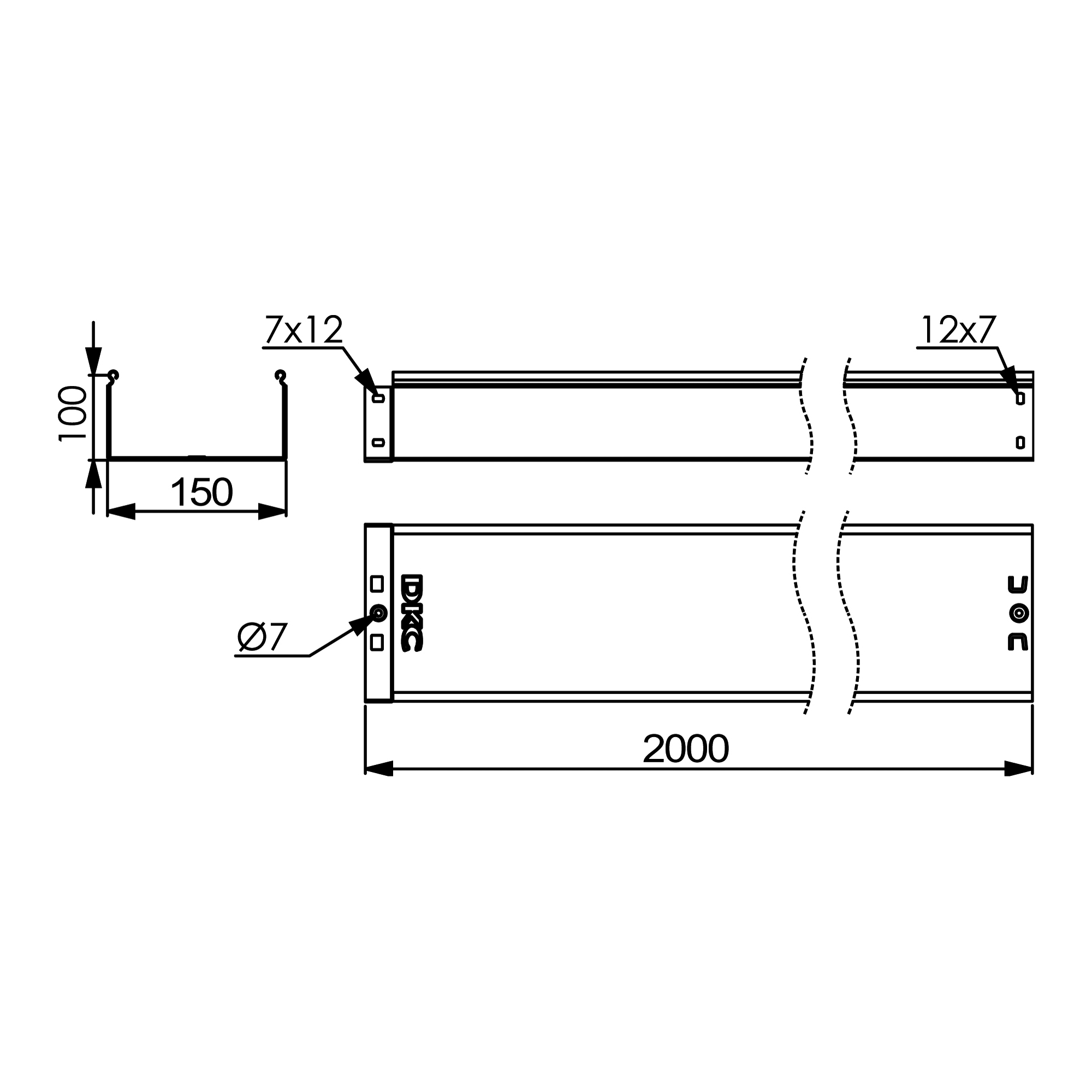

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
