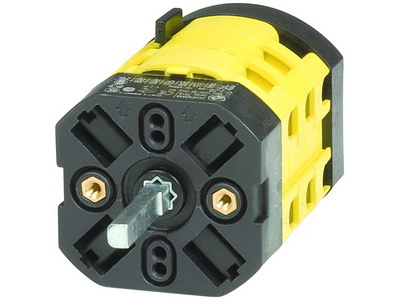

Cam-Switchs for 12 Amp. Schem 02. Mount on panel
Code:
AS1202R
Cam-Switchs for 12 Amp. Schem 02. Mount on panel
Code:
AS1202R
Model | Reverser |
Rated operation power at AC-3, 400 V, kW | 7.5 |
Rated permanent current Iu, A | 12 |
Number of poles | 2 |
With 0 (off) position | Yes |
Type of electrical connection of main circuit | Screw connection |
Suitable for floor mounting | Yes |
Suitable for front mounting | Yes |
Suitable for distribution board installation | Yes |
Suitable for intermediate mounting | Yes |
Complete device in housing | Yes |
Type of control element | Long turning handle |
Degree of protection (IP), front side | IP65 |
With retraction in 0-position | Yes |
Rated operation current Ie at AC-3, 400 V, A | 4 |
Product type | Cam switches |
