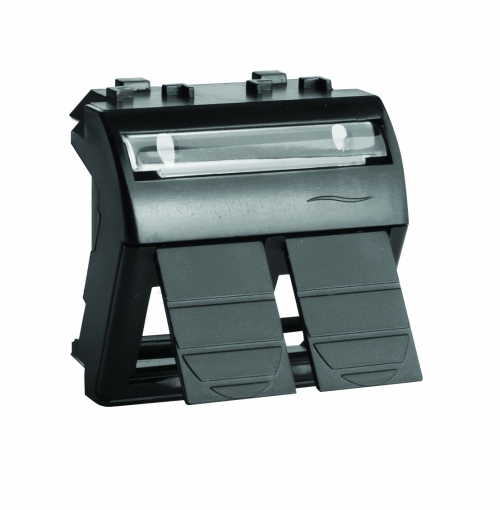

Adapter for 2 jacks Keystone, 2 mod., black

Code: 77614N
Code: 77614N
  • To ask a question
Assembly arrangement Central cover plate
Colour Black
With hinged lid No
Imprintable label With indication plate
Material Plastic
Type of fastening Engage (snap)
Surface finishing Glossy
Suitable for degree of protection (IP) IP20

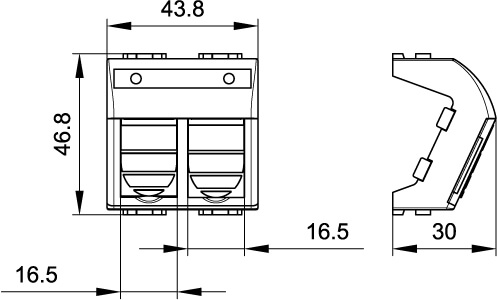

Width of device, mm 43
Height of device, mm 43
Number of modules (module system) 2
Mounting method Surface mounted (plaster)
Utilization For data connection housing
Material of case ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 43
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL3
Height (nominal), mm 43
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Color Black
Type of installation Modular product
Product type Adapter
Number of modules 2
