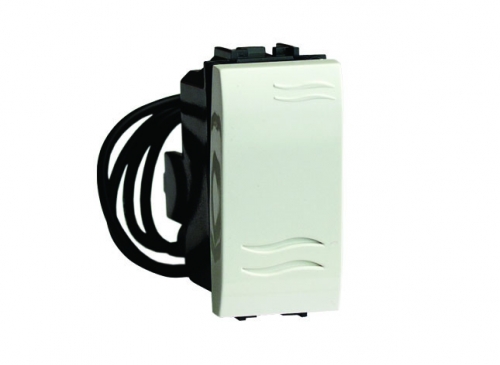

1-way switch, with backlight, 1 mod., white

Code: 76001BL

1-way switch, with backlight, 1 mod., white

Code: 76001BL
Nominal voltage, V 250
Mounting method Wall duct
Assembly arrangement Basic element
Method of operation Rocker/button
Colour White
Halogen free Yes
Illumination Illumination with LED
Surface protection Decor
Rated current, A 16
Label space/information surface No
Feedback-signal contact No
Material quality Thermoplastic
Material Plastic
Type of fastening Screw mounting
Wiring system Other
Number of rockers 1
Push button switch No
Washing machine switch No
Surface finishing Matt
Suitable for degree of protection (IP) IP20
Number of modules 1
Decoration Декор по эскизу
Connection type Screwed terminal
Color White
Temperature of mounting, °C ­5°С ... +60°С

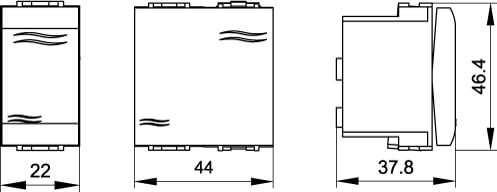

Width (nominal), mm 21.5
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL3
Height (nominal), mm 43
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Type of installation Modular product
Product type Switch
Number of modules 1
