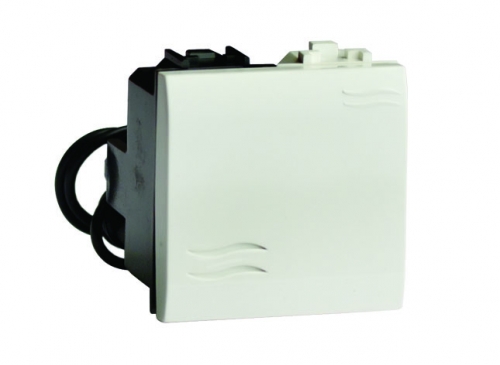

1-way switch, with backlight, 2 mod., white
Code:
76002BL
1-way switch, with backlight, 2 mod., white
Code:
76002BL
| Nominal voltage, V | 230 |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Rocker/button |
| Colour | White |
| Illumination | Illumination with LED |
| Surface protection | Decor |
| Rated current, A | 16 |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Screw mounting |
| Wiring system | Off switch 1-pole |
| Number of rockers | 1 |
| Push button switch | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Connection type | Screwed terminal |
| Modular version | Yes |

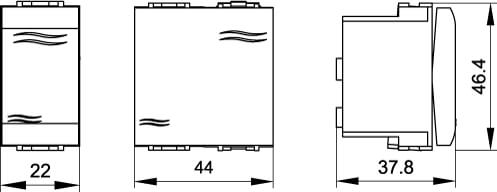

| Width of device, mm | 43 |
| Height of device, mm | 43 |
| Depth of device, mm | 37.8 |
| Label space/information surface | No |
| Number of modules (module system) | 2 |
| Mounting method | Surface mounted (plaster) |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 43 |
| Ingress Protection rating, IP | IP20 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL3 |
| Height (nominal), mm | 43 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Color | White |
| Type of installation | Modular product |
| Product type | Switch |
| Number of modules | 2 |
