1-way switch, with backlight, 1 mod., black
Code:
77001NL
1-way switch, with backlight, 1 mod., black
Code:
77001NL
| Nominal voltage, V | 250 |
| Mounting method | Wall duct |
| Assembly arrangement | Basic element |
| Method of operation | Rocker/button |
| Colour | Black |
| Halogen free | Yes |
| Illumination | Illumination with LED |
| Surface protection | Decor |
| Rated current, A | 16 |
| Label space/information surface | No |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Screw mounting |
| Wiring system | Other |
| Number of rockers | 1 |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Number of modules | 1 |
| Decoration | Декор по эскизу |
| Connection type | Screwed terminal |
| Color | Black |
| Temperature of mounting, °C | 5°С ... +60°С |

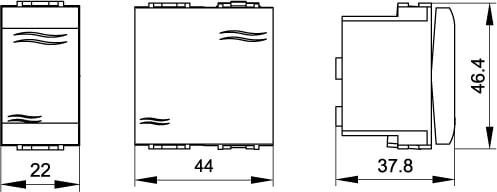

| Width (nominal), mm | 21.5 |
| Ingress Protection rating, IP | IP20 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL3 |
| Height (nominal), mm | 43 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Type of installation | Modular product |
| Product type | Switch |
| Number of modules | 1 |
