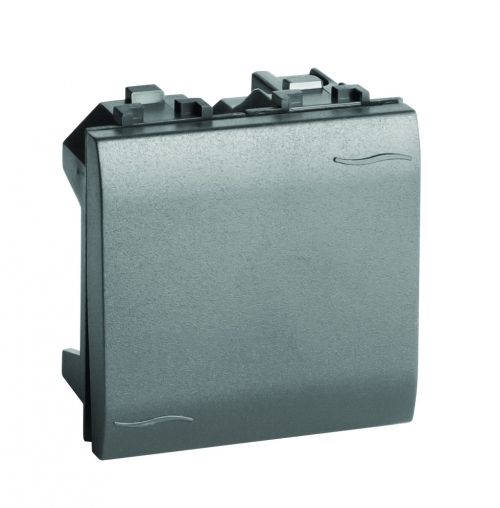

Single pole bellpush, 2 mod., black
Code:
77022N
Single pole bellpush, 2 mod., black
Code:
77022N
Nominal voltage, V | 250 |
Mounting method | Wall duct |
Assembly arrangement | Basic element |
Method of operation | Rocker/button |
Colour | Black |
Halogen free | Yes |
Illumination | Without illumination |
Surface protection | Decor |
Rated current, A | 16 |
Label space/information surface | No |
Feedback-signal contact | No |
Material quality | Thermoplastic |
Material | Plastic |
Type of fastening | Screw mounting |
Wiring system | Other |
Number of rockers | 1 |
Push button switch | Yes |
Washing machine switch | No |
Surface finishing | Matt |
Suitable for degree of protection (IP) | IP20 |
Number of modules | 2 |
Decoration | Декор по эскизу |
Connection type | Screwed terminal |
Color | Black |
Temperature of mounting, °C | 5°С ... +60°С |

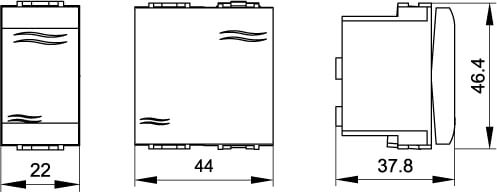

Width (nominal), mm | 43 |
Ingress Protection rating, IP | IP20 |
Temperature of operation, °C | 5°С ... +60°С |
Temperature of operation, °C | +60°C |
Climate version | UHL3 |
Height (nominal), mm | 43 |
Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
Type of installation | Modular product |
Product type | Switch |
Number of modules | 2 |
