End Cap 100x80
Code: 37262
End Cap 100x80
Code: 37262
Colour | Light grey |
Surface protection | Sendzimir galvanized |
Material quality | Steel |
Material | Steel |
Cable tray width, mm | 100 |
Cable tray height, mm | 80 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | Mounting accessories |
Type of accessories | Plug |
Height | 80 mm |
Thickness | 1.0 mm |
Material | Pre-galvanized |
Width | 100 mm |

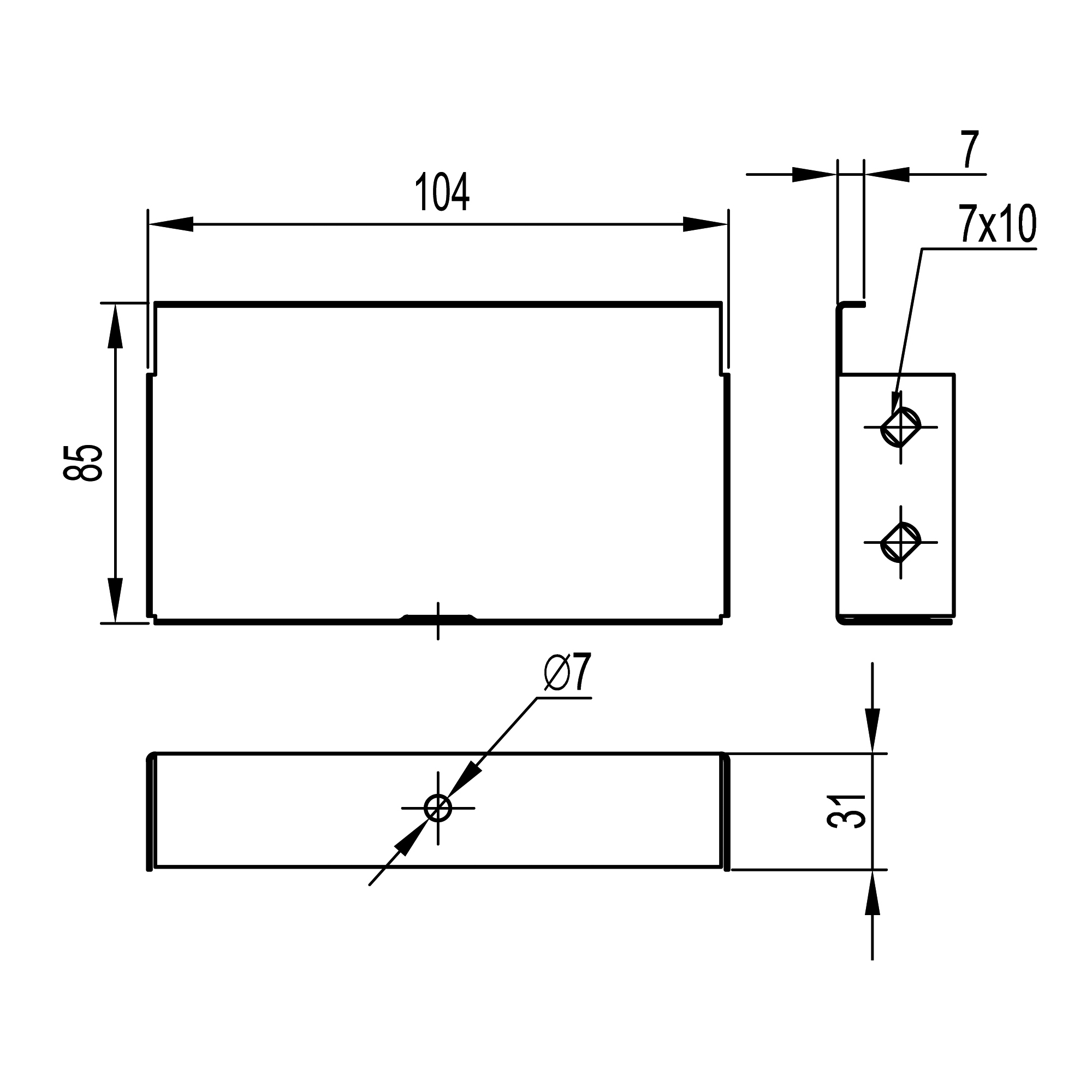

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
