Joint Plate h. 35
Code: SPG00350
Joint Plate h. 35
Code: SPG00350
Material | Steel |
Suitable for cable tray | Yes |
Suitable for cable management system height, mm | 35 |
Suitable for cable management system width, mm | 50...600 |
Surface protection | Sendzimir galvanized |
Type of connection | Screw connector |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Material quality | Steel |
Model | Joint clip bar |
Product type | Mounting accessories |
Type of accessories | Mounting accessories |
Height | 35 mm |
Material | Pre-galvanized |

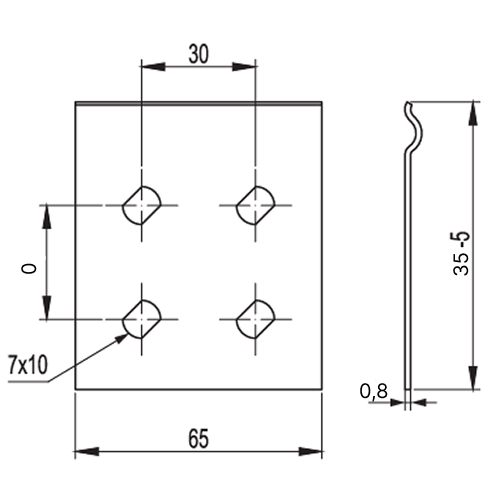

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
