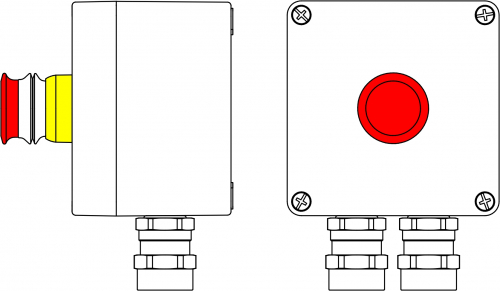

Aluminum terminal post 120x120x90мм (1Ex d e IIC T6 Gb X / Ex tb IIIB T80°C Db X / IP66)Temperature Classes Т6 40°CQuantity ofcontrol elements:Contact block 1NC/1NO + Danger button P3E Red 1 pcs.Quantity of clamp terminal blocks:Cable glands Side C:AASexp
Explosion-tested version | Yes |
Degree of protection (IP) | IP66 |
For Ex-zone gas | 1, 2 |
For Ex-Zone dust | 21, 22 |
Impact strength | IK07 |
Mounting method | Surface mounted (plaster) |
Cover attachment | Screwed |
Material | Aluminium |
Element controls 1 | Push-button |
Type 1 element | 1 pc. x emergency P3E 1NC+1NO |
Type of a cable gland for: | armored cable, single seal |
Installation side: C | 2 pcs. x outer D & inner d: 5,5-13 mm |
Material | Aluminium alloy |
Ex | d e, tb |
Electrical equipment group | IIC hydrogen |
Geometric dimensions | 120x120x90 mm |
Number of controls | 1 pc. |
