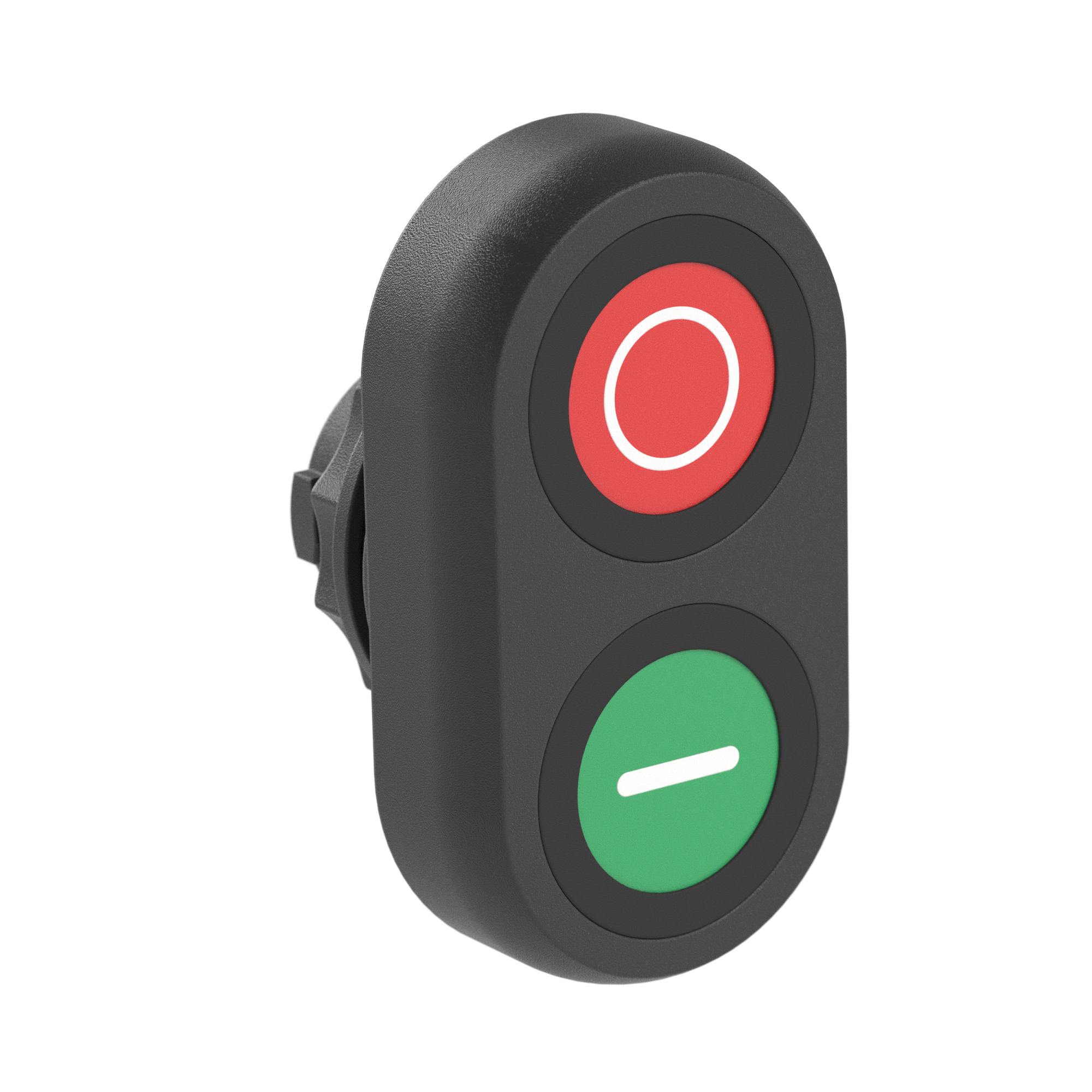

Explosion-proof operation head-rubber sheath double button green and red

Code: 2361.0100.610.00

Explosion-proof operation head-rubber sheath double button green and red

Code: 2361.0100.610.00
Hole diameter, mm 30.6
Number of switch positions 2
Number of command positions 2
Unlocking method None
Spring-return Yes
Diameter cap 39
Type of button Flat
Width opening, mm 30.6
Height opening, mm 30.6
Colour front ring Natural colour
Material front ring Plastic
Colour button Red/green
Degree of protection (IP), front side IP66
Type of element Double. Stateless
Marking Ex e IIС Gb U; Ex tb IIIC Db U
Degree of protection 66
Color Green & red
Temperature range From –60 to +60 °C
Control element Push-button
