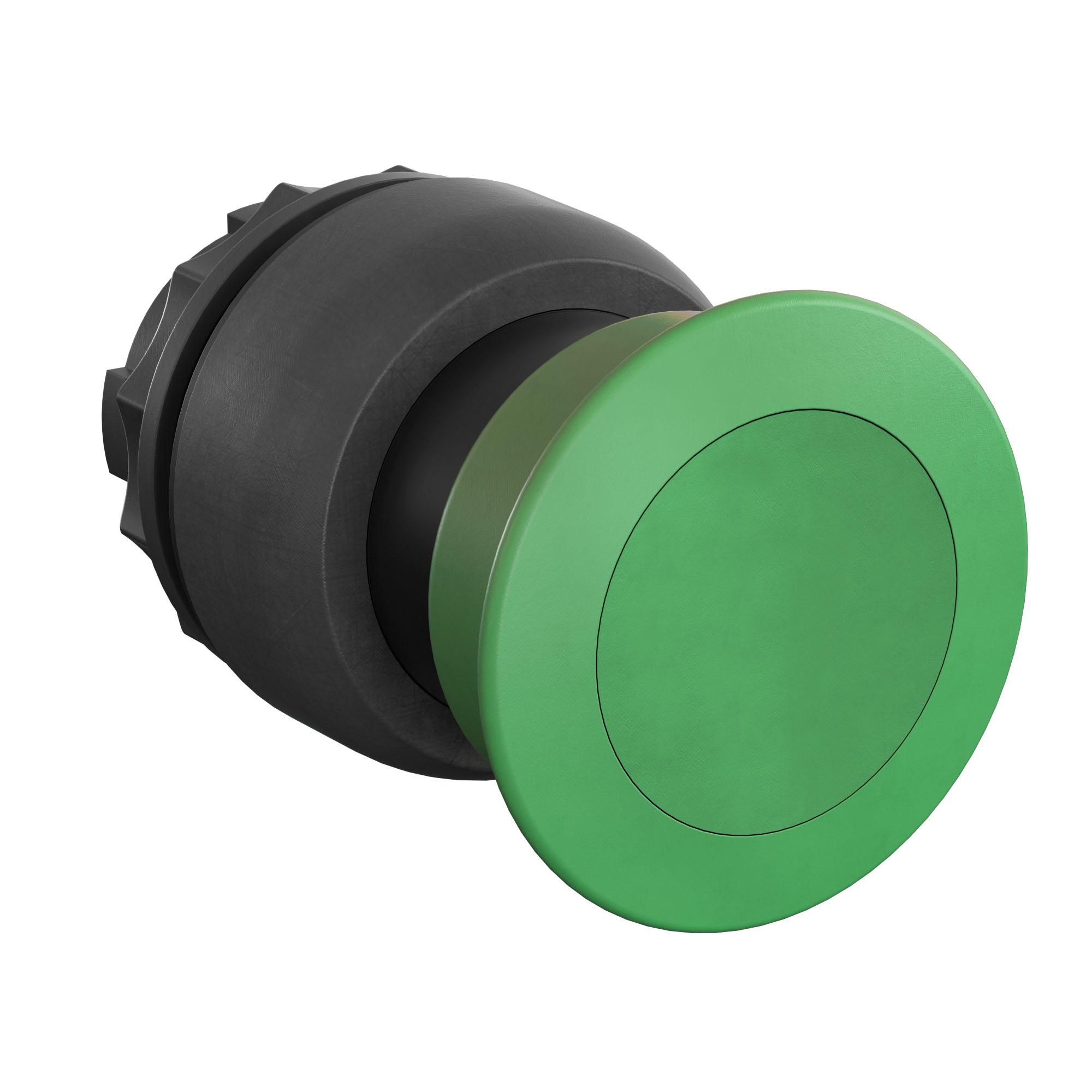

Explosion-proof operation head-mushroom head button green. ф37mm

Code: 2361.0400.615.00
  • To ask a question
Hole diameter, mm 30.6
Number of switch positions 1
Number of command positions 1
Unlocking method None
Spring-return Yes
Diameter cap 37
Type of button High
Width opening, mm 30.6
Height opening, mm 30.6
Colour front ring Natural colour
Material front ring Plastic
Colour button Green
Degree of protection (IP), front side IP66
Control element Push-button
Type of element Mushroom. Stateless
Color gray
Degree of protection 66
Temperature range From –60 to +60 °C
Marking Ex e IIС Gb U; Ex tb IIIC Db U
