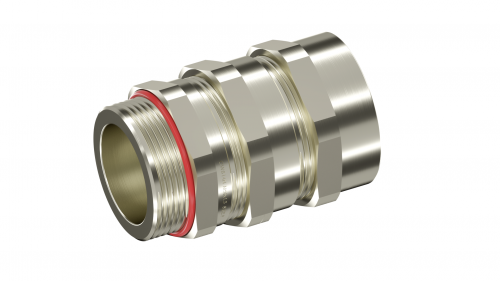

ADS explosion-proof cable gland for armoured cable, double sealing M32x1,5 d15-24mm D20-31mm. Nickel-plated brass. IP66/68
Code:
6018ADSDKGM4SB
Code:
6018ADSDKGM4SB
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| Explosion-tested version | Yes |
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Surface protection | Nickel-plated |
| Material quality | Brass |
| Thread type | Metric |
| For Ex-Zone dust | 20, 21, 22 |
| Shock resistant | Yes |
| Type of sealing | Sealing ring |
| Pitch thread, mm | 1.5 |
| Flat cable coupling | No |
| Suitable for cable diameter, mm | 15...24 |
| Nominal thread size metric/PG | 32 |
| Type of a cable gland for: | Armoured cable, double seal |
| Threading | M32х1,5 Metric |
| Diameter of cable, mm | from 20 to 31 |
| Marking | II 2G Ex db IIC Gb / II 2G Ex eb II Gb / II 2D Ex tb IIIC Db |
| Temperature range during operation, °С | from - 65 to +130 |
| Product type | Cable input for tubes |
| Type of a cable gland for: | Armoured cable, double seal |
| Material | Nickel plated brass |
