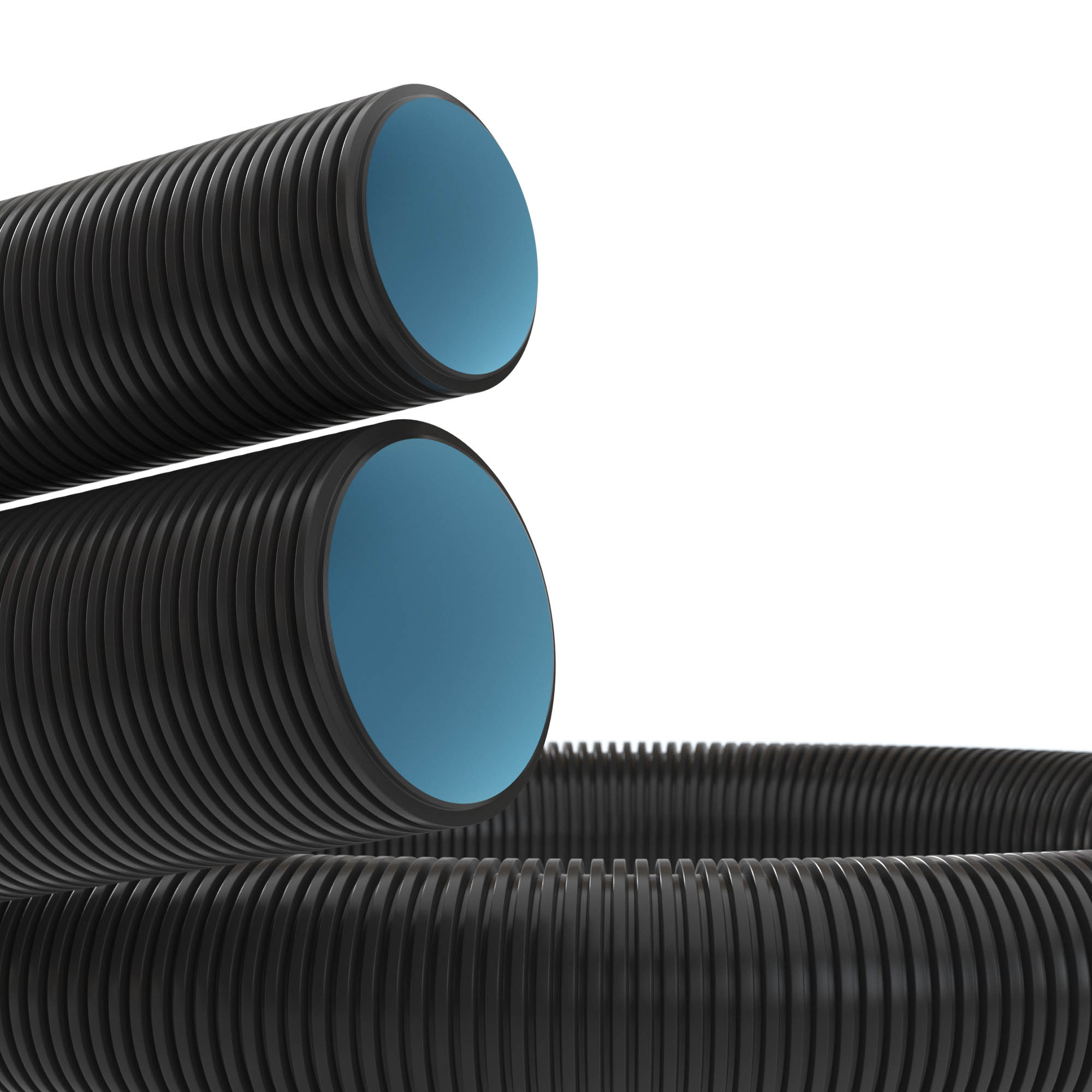

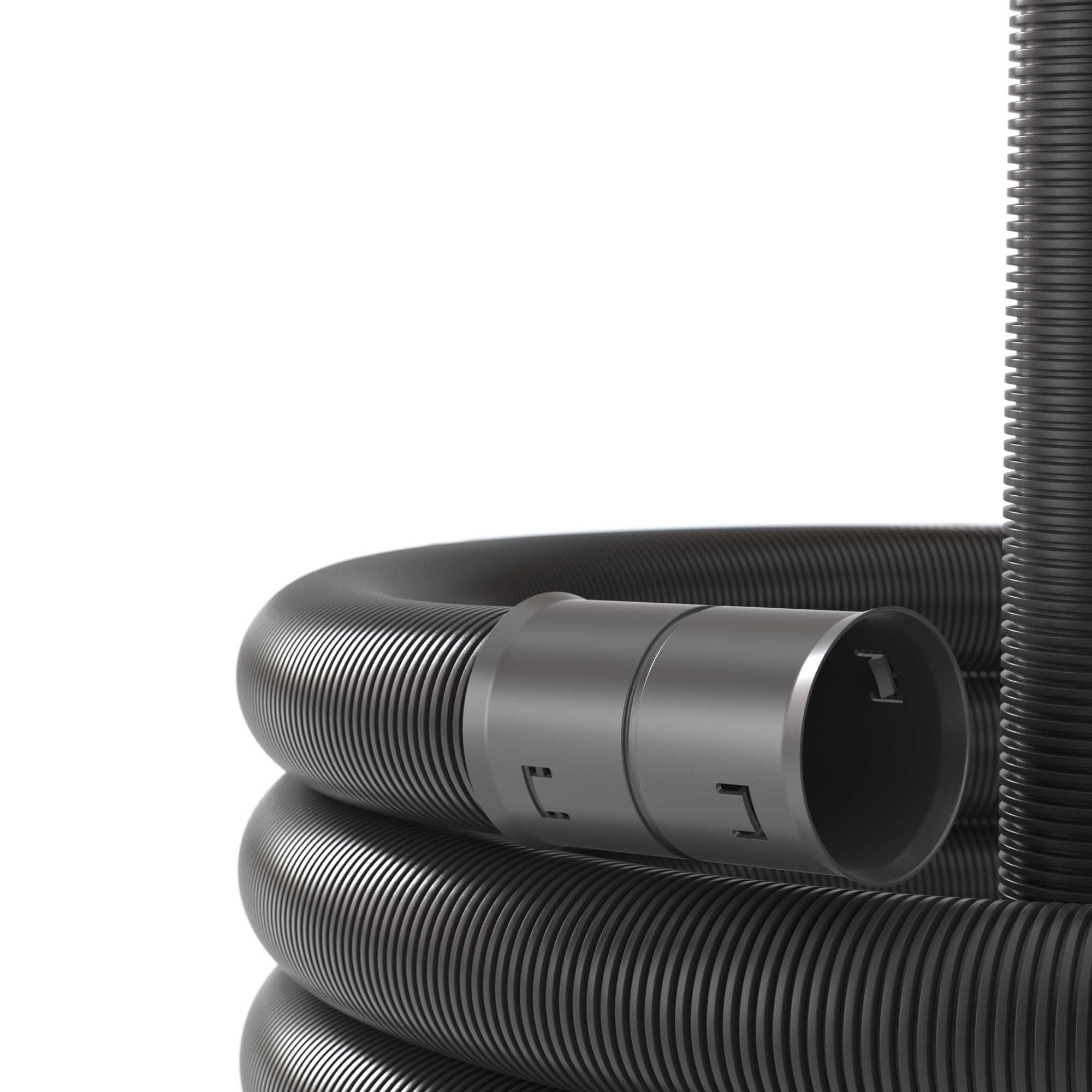

Double-wall tube HDPE outdoor flex. ? 160 mm, SN 6, V0, UF, with pull, 50 m in coil, black color
Code: 151916
Double-wall tube HDPE outdoor flex. ? 160 mm, SN 6, V0, UF, with pull, 50 m in coil, black color
Code: 151916
Colour | Black |
Outer diameter, mm | 160 |
Inner diameter, mm | 137 |
Material | Polyethylene |
Surface mounted | Да |
Outdoor installation | Да |
Suitable for underground installation | No |
With sleeve | Да |
High conducting inner coating | Да |
Color | Black |
Material | PVC |
-5°С ... +60°С | -25°С ... +90°С |
Ingress Protection rating, IP | IP44 (IP55) |
от -25°С до +60°С | from -55°С to +90°С |
Cord for wires | Yes |
ТУ 2248-012-47022248-2009 | Technical specifications 2248-047-47022248-2015 |
3 года | 2 years |
15 лет | 2 years |
Length | 50000 mm |
8 диаметров мм | 8 diameters mm |
Product type | Double-walled pipes |
Ring stiffness | 6 kPa |
Compression resistance | 680 N |
Complete set of broaching | Yes |
Packing type | Coil |
Packing standards | 50 m |
