| Colour | Black |
| Model | Internal toothing |
| Length belt/tape/tie, mm | 530 |
| Text strip | None |
| Surface protection | Plastic-coated |
| Material quality | Polyamide (PA) |
| Material | Plastic |
| Operating temperature, °C | -40...85 |
| Inflammability class of insulation material according to with UL94 | V2 |
| Tie thickness, mm | 1.9 |
| Band closure | Plastic lip/-cam |
| Max. bundle diameter, mm | 156 |
| Min. holding force, N | 1200 |
| Band width, mm | 12.4 |
| Mounting temperature, °C | -20...85 |
| Halogen free | Yes |
| Solvable fastener | Yes |
| Transparent | Yes |
| Reflective (fluorescent) | Yes |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|

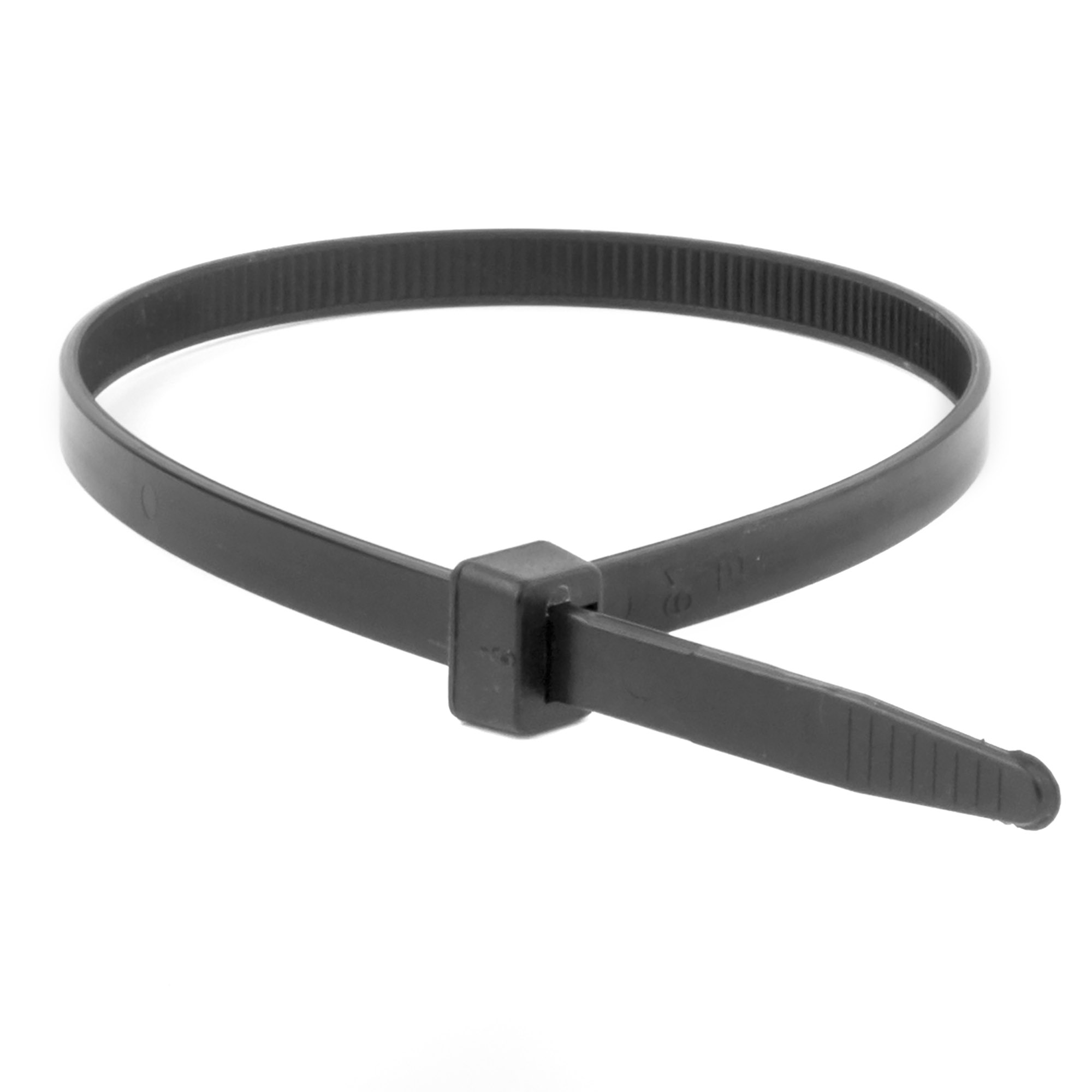

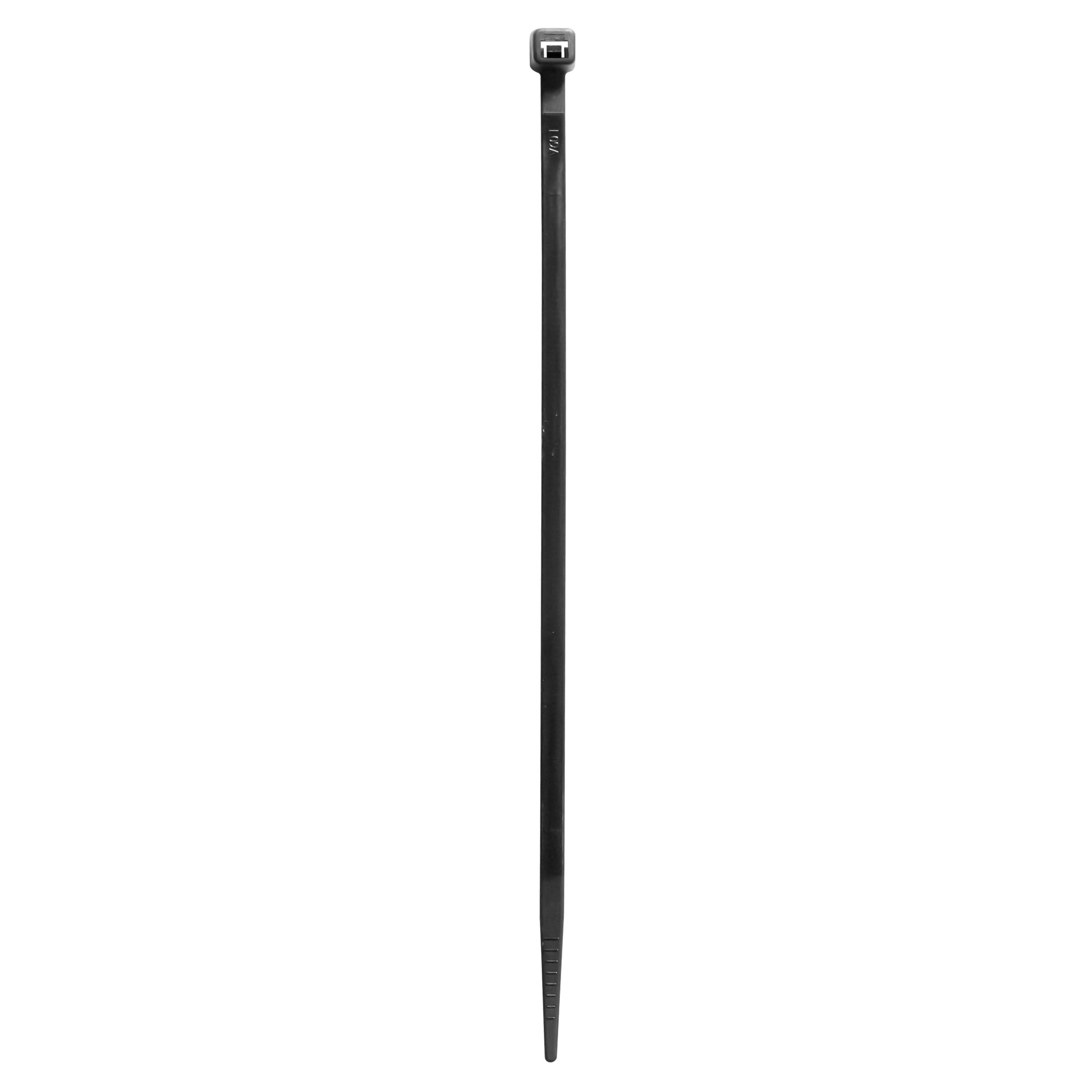

Cable ties - "Quadro"
|
