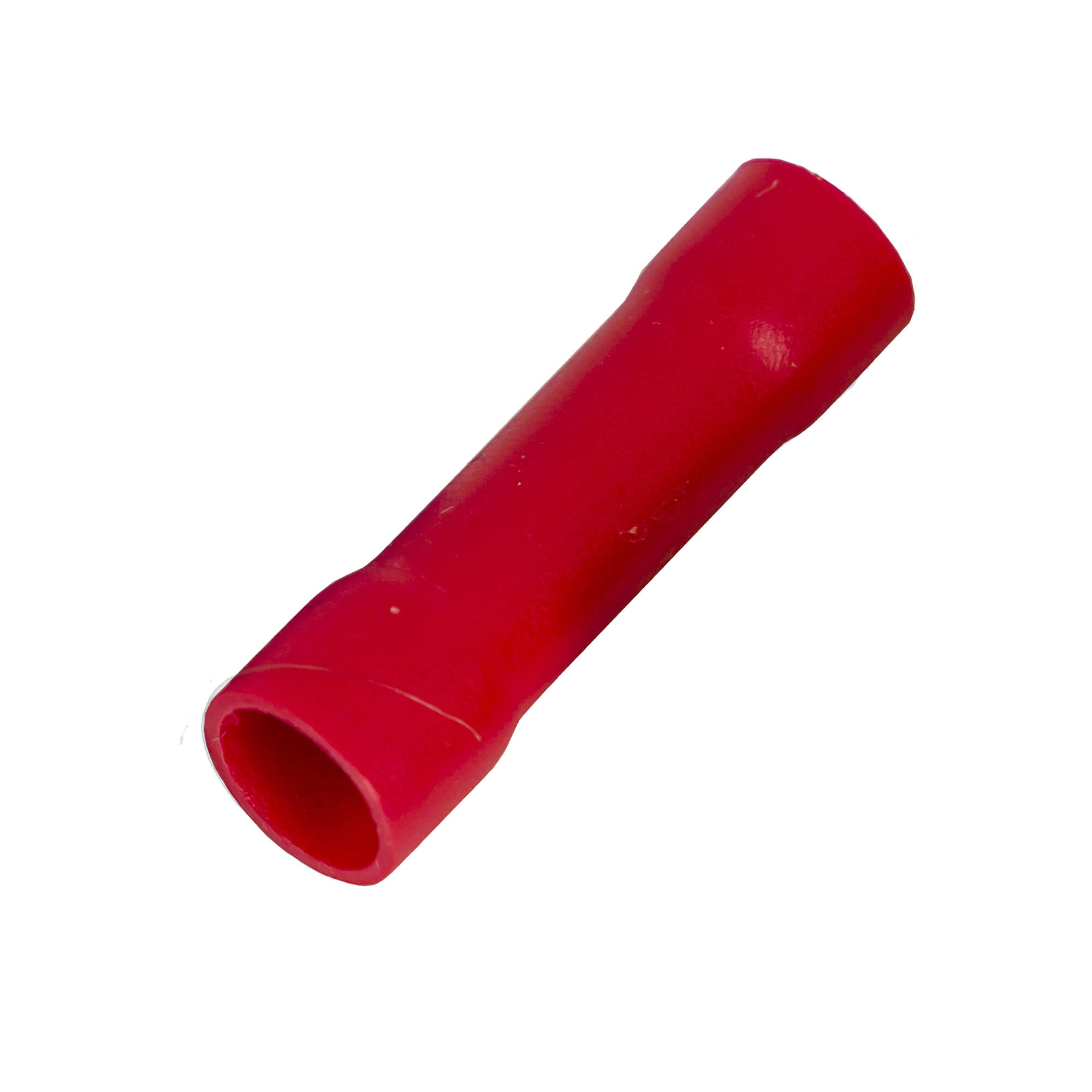

Connector, PVC 6-10 sq.mm
Code: 2D20P
Connector, PVC 6-10 sq.mm
Code: 2D20P
| Type of connection | End connector |
| Surface protection | Tinned |
| Insulation | Polyvinyl chloride (PVC) |
| Oil stop/centre bar | No |
| For pull protected connections | No |
| Voltage level | Up to 600 V |
| Colour insulation | Red |
| Material | Copper |
| Number of branches | 1 |
| AWG-range | 8 |
| Nominal cross section, mm² | 6...10 |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Sleeve form | Long |
| Nominal current, A | 62 |
| Sleeve type | single |
