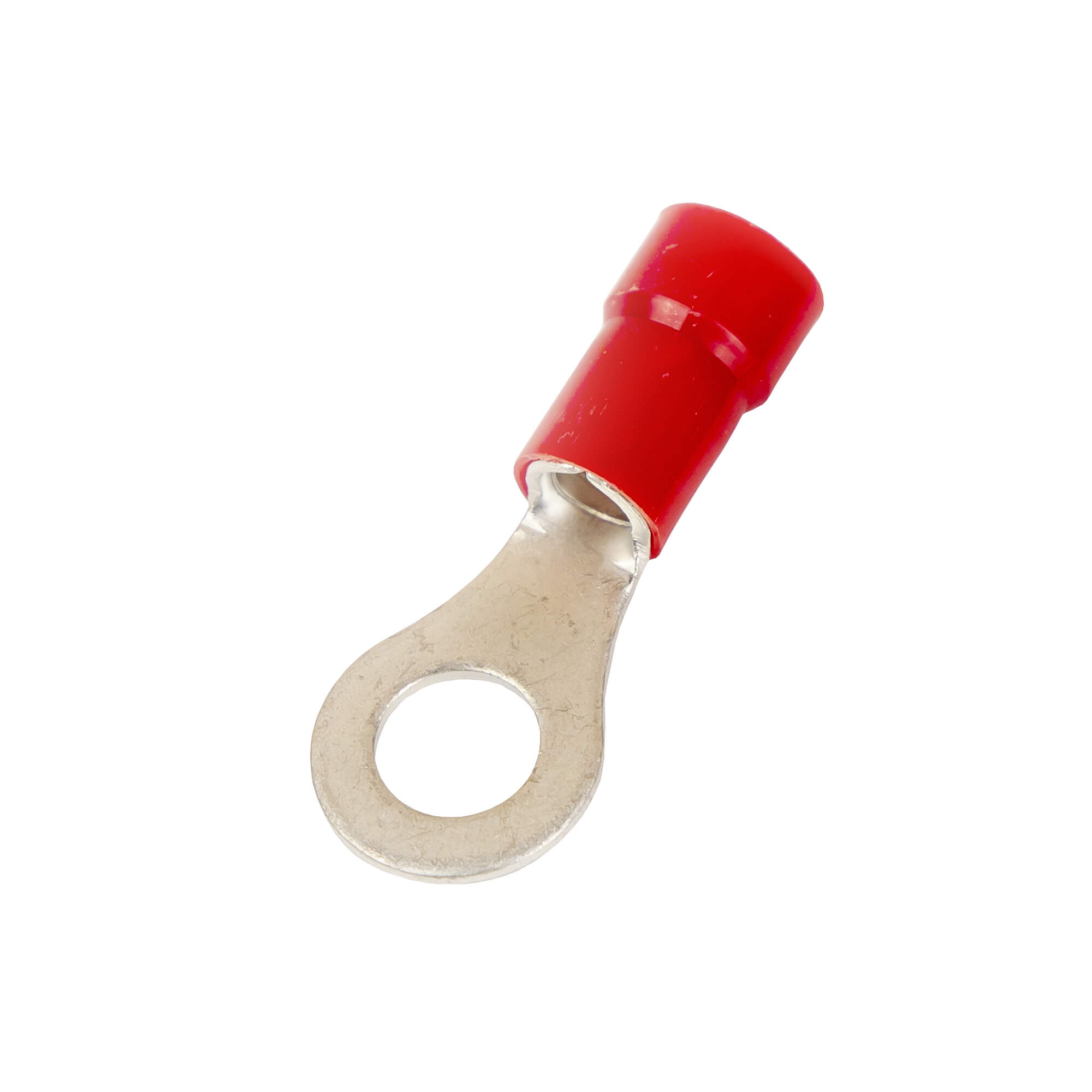

| Insulated | Yes |
| Flange shape | Ring shape |
| Bolt dimension (metric) | 8 |
| Nominal cross section, mm² | 10 |
| According to DIN | Yes |
| Material | Copper |
| Surface protection | Tinned |
| Insulation | PA |
| Max. current (Imax), A | 62 |
| For pull protected connections | No |
| Reel/roll packaging | No |
| AWG-range | 8 |
| Suitable for fine strand conductors | Yes |
| Suitable for flat conductors | No |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | Yes |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Sleeve type | single |
