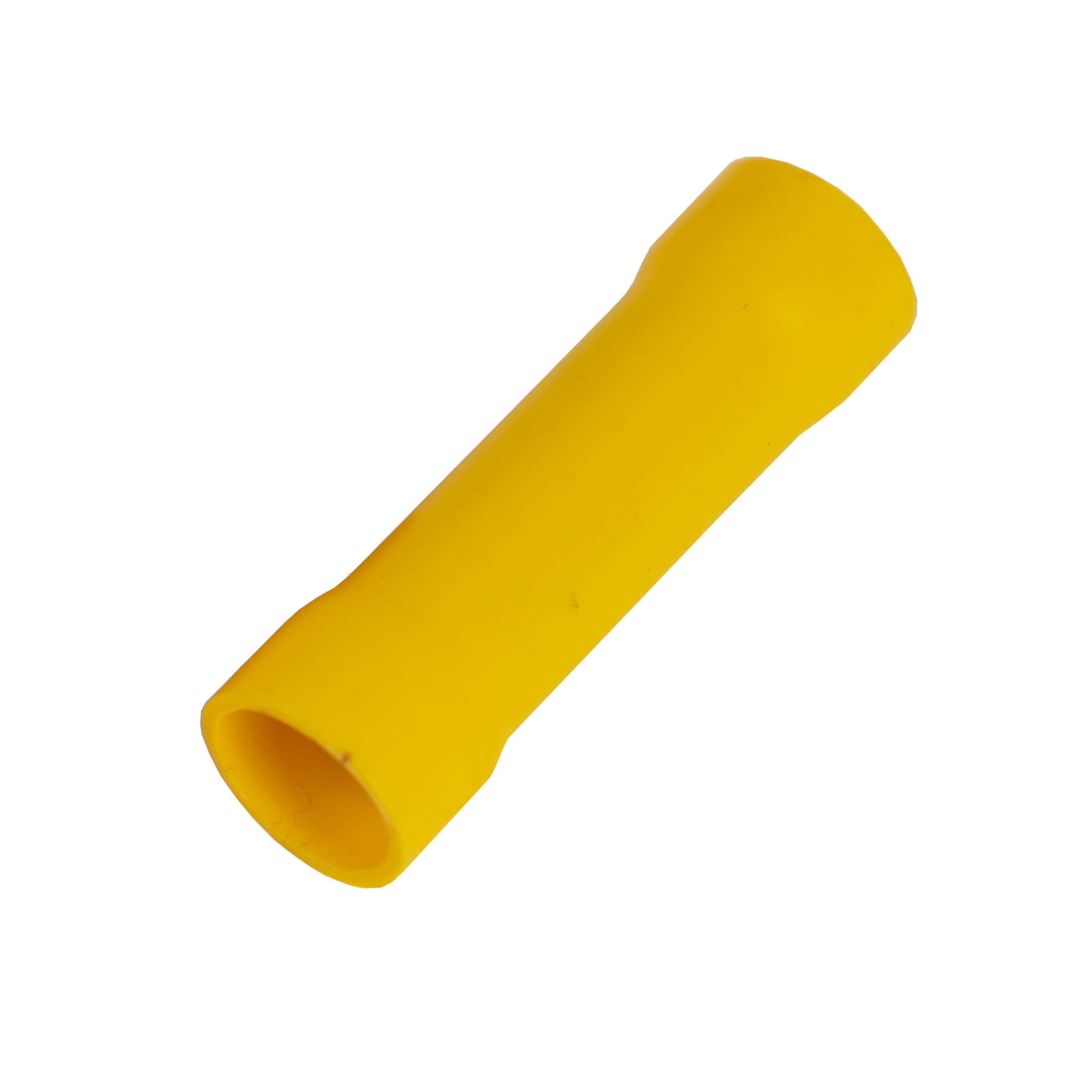

Connector, PVC 16-25

Code: 2F20P
  • To ask a question
Type of connection End connector
Surface protection Tinned
Insulation Polyvinyl chloride (PVC)
Oil stop/centre bar No
For pull protected connections No
Voltage level Up to 600 V
Colour insulation Yellow
Material Copper
Number of branches 1
AWG-range 4
Nominal cross section, mm² 16...25
Suitable for fine strand conductors Yes
Suitable for high temperatures (to 650 °C) No
Suitable for insulated varnish No
Suitable for solid cores Yes
Useful for stranded conductors Yes
Suitable for round conductors Yes
Sleeve form Long
Nominal current, A 115
Sleeve type single
Seria Name Eplan
Cable terminals -"Quadro"
