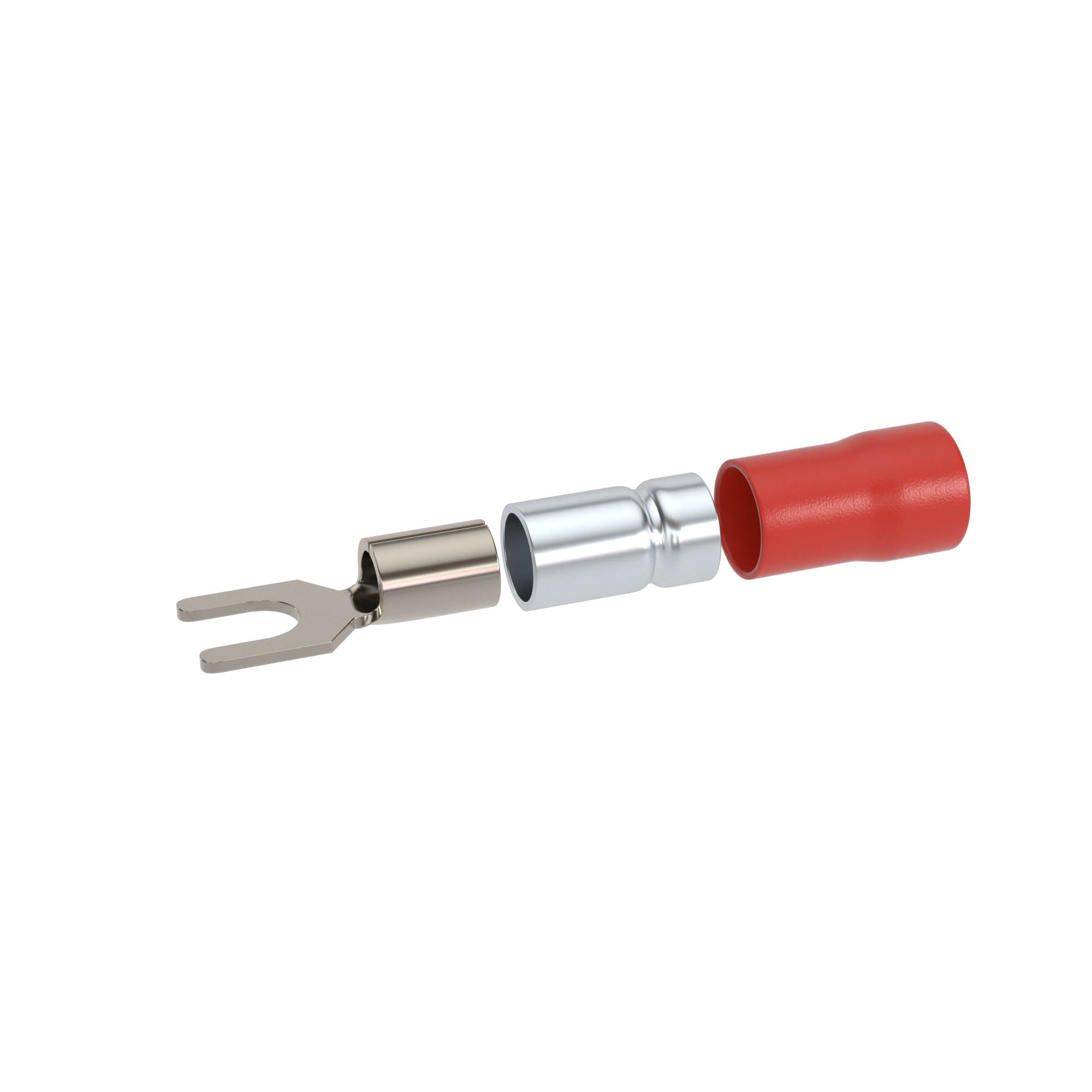

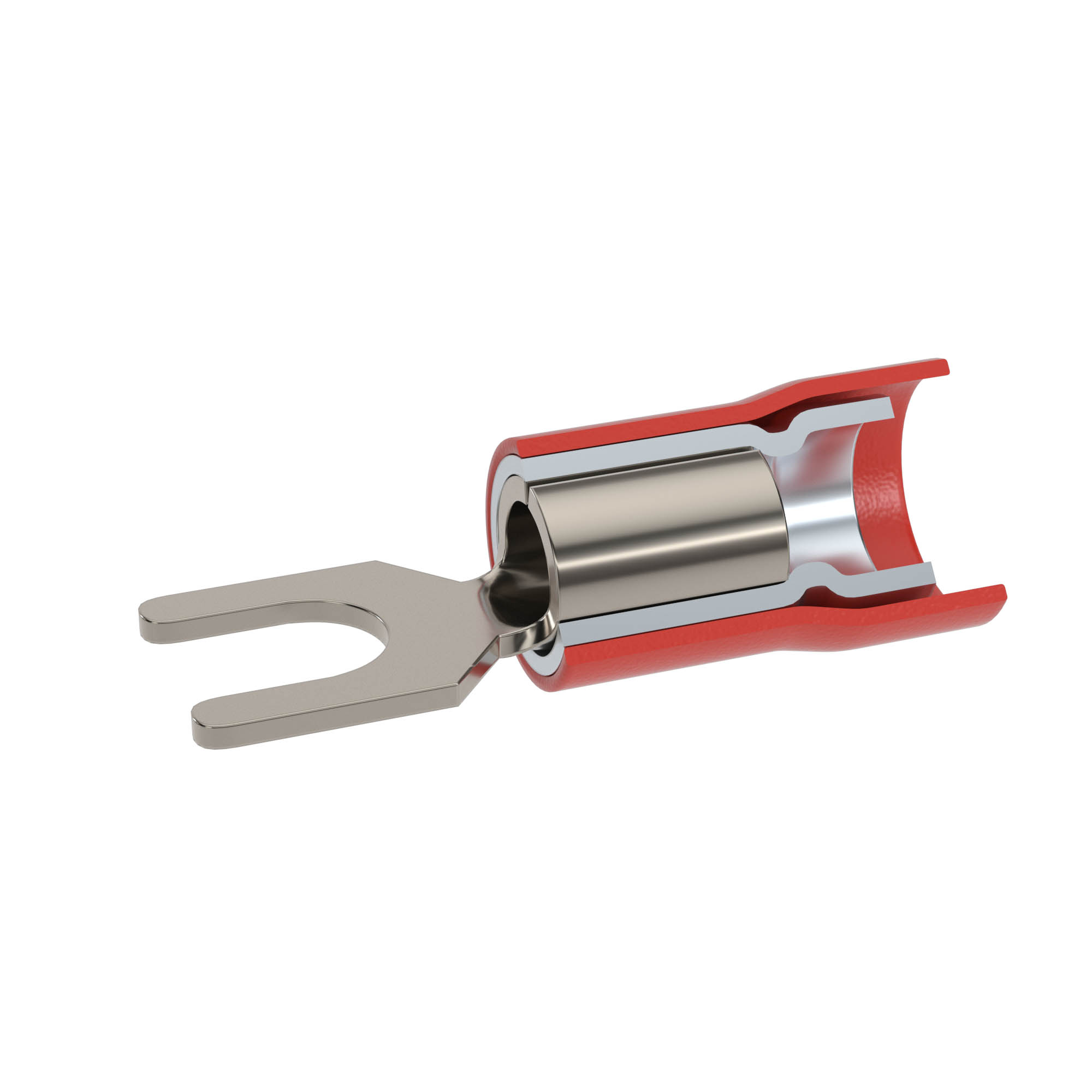

Fork-type cable lug,PVC, double sleeve, 1,5 sq. d.6,4
Code:
2A16P-DS-PVC
Fork-type cable lug,PVC, double sleeve, 1,5 sq. d.6,4
Code:
2A16P-DS-PVC
Flange shape | Fork shape |
Bolt dimension (metric) | 6 |
Nominal cross section, mm² | 0.5...1.5 |
According to DIN | Yes |
Material | Copper |
Surface protection | Tinned |
Insulation | Polyvinyl chloride (PVC) |
Max. current (Imax), A | 19 |
Suitable for fine strand conductors | Yes |
Suitable for flat conductors | Yes |
Suitable for high temperatures (to 650 °C) | Yes |
Suitable for insulated varnish | Yes |
Suitable for solid cores | Yes |
Useful for stranded conductors | Yes |
Suitable for round conductors | Yes |
Colour insulation | Grey |
Sleeve type | double |
Drawings
Seria | Name | Eplan |
---|---|---|
Cable terminals -"Quadro"
|
