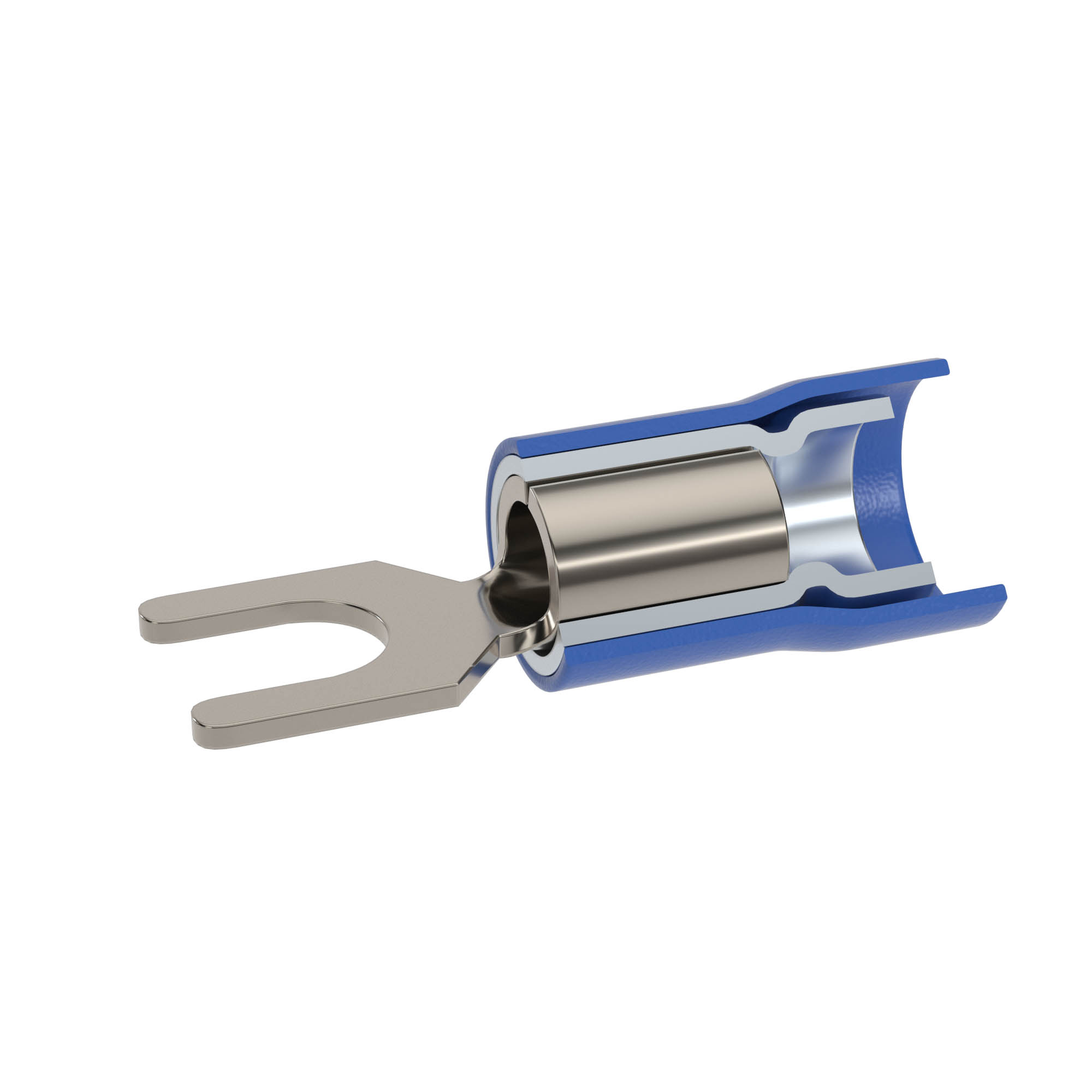

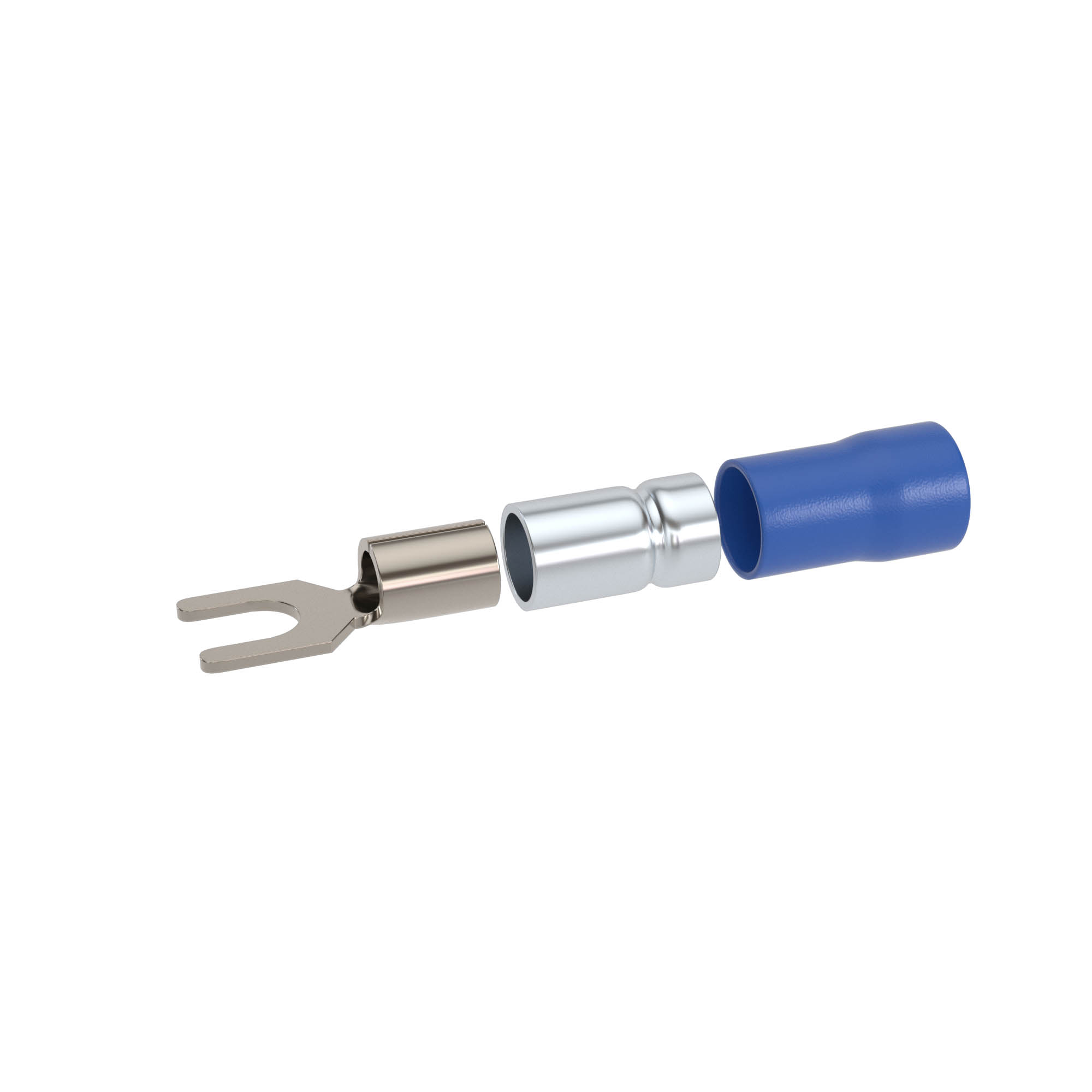

Fork-type cable lug,PVC, double sleeve, 2,5 sq. d.8,4
Code: 2B18P-DS-PVC
Fork-type cable lug,PVC, double sleeve, 2,5 sq. d.8,4
Code: 2B18P-DS-PVC
Flange shape | Fork shape |
Bolt dimension (metric) | 8 |
Nominal cross section, mm² | 2.5...2.5 |
According to DIN | Yes |
Material | Copper |
Surface protection | Tinned |
Insulation | Polyvinyl chloride (PVC) |
Max. current (Imax), A | 27 |
For pull protected connections | Yes |
Reel/roll packaging | Yes |
AWG-range | 14...14 |
Suitable for fine strand conductors | Yes |
Suitable for flat conductors | Yes |
Suitable for high temperatures (to 650 °C) | Yes |
Suitable for insulated varnish | Yes |
Suitable for solid cores | Yes |
Useful for stranded conductors | Yes |
Suitable for round conductors | Yes |
Colour insulation | Grey |
Sleeve type | double |
