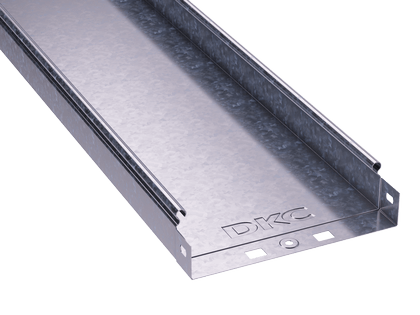

Non-perforated tray 200x100 L2000, RAL9003
Code: 35113RAL9003
Non-perforated tray 200x100 L2000, RAL9003
Code: 35113RAL9003
| Width, mm | 200 |
| Height, mm | 100 |
| Surface protection | Sendzimir galvanized |
| Material thickness, mm | 0.7 |
| Material quality | Steel |
| Length, mm | 2000 |
| Useful cross section, mm² | 20000 |
| Colour | Light grey |
| Model | Without connector |
| Side wall perforation | Yes |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Non perforated straight elements |
| Type | Metal sheet trays - " S5 Combitech" |
| Height | 100 mm |
| Length | 2000 mm |
| Thickness | 0.7 mm |
| Material | Paint coating |
| Width | 200 mm |
Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
