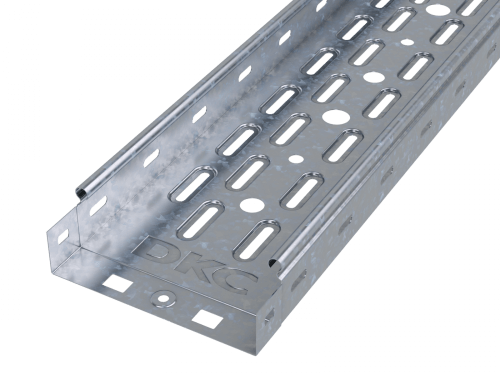

Perforated tray 200х80 L3000, RAL9010

Code: 35304RAL9010
Perforated tray 200х80 L3000, RAL9010
Perforated tray 200х80 L3000, RAL9010

Perforated tray 200х80 L3000, RAL9010

Code: 35304RAL9010
Width, mm 200
Height, mm 80
Surface protection Sendzimir galvanized
Material thickness, mm 0.7
Material quality Steel
Length, mm 3000
Useful cross section, mm² 16000
Colour Light grey
Model Without connector
Side wall perforation Yes
Material Steel
Mounting perforation in bottom Yes
Suitable for circuit integrity Yes
Type Metal sheet trays - " S5 Combitech"
Thickness 0.7 mm

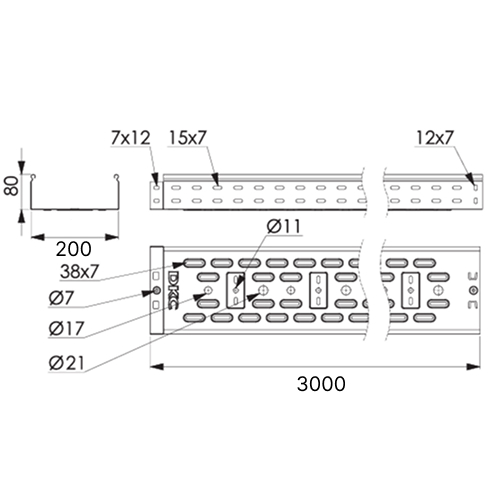

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
726.23 Kb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
16.42 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
11.67 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
5.28 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
11.99 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
17.15 Mb
Certificates
Name Document
Certificate of conformity to GOST R for metal sheet trays
PDF
435.66 kB
Exemption Letter for metal trays and its accessories
PDF
3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity to seismic impact resistance for system of cable trays "S5 Combitech" and fastening system "M5 Combitech"
PDF
907.27 kB
Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC, Electrocable Kolchuginsky Zavod and Zavod Energokabel
PDF
4.85 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines of the DKC and "SPKB Techno"
PDF
4.93 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of the DKC and "Rybinsk cable" for TRM 0004-2014
PDF
4.69 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_1
PDF
8.35 MB
Fire-resistant barriers_Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_2
PDF
12.31 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC and OJSC "Electrocable. Kolchugino Plant "on TRM 0005-2018
PDF
18.51 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC and "Concord" for TRM 0016-2017
PDF
11.34 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and "Rybinskelectrocable" for TRM 0006-2015
PDF
11.88 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, Sevkabel, Speckabel for TRM 0015-2017
PDF
11.35 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC, "Energokabel", "Electrocable. Kolchuginsky Zavod on the TRM 0015-2017
PDF
4.86 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, "Technocable" for TRM 0010-2015
PDF
5.01 MB
Fire-resistant barriers _Certificate of conformity FZ-123 on fire-resistant cable lines of DKC and "Expert-Cable"
PDF
13.54 MB
Certificate of conformity of GOST R 53316-2009 for fire resistant cable lines for fire protection systems such as "Lyudinovokabel - DKC"
PDF
5.93 MB
Certificate of conformity to GOST 30247.0-94, TRM 0001-2012 for the Fire resistant cable support constructions
PDF
2.97 MB
Certificate of conformity to fire safety to GOST R 53316-2009 for the Fire resistant cable support construction of DKC, OOO Kabel’niy zavod "ALUR", OOO "REK"
PDF
4.50 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC and "Paritet"
PDF
3.06 MB
Fire safety certificate for fireproof cable penetrations (IET 150 GOST R 53310-2009)
PDF
715.70 kB
