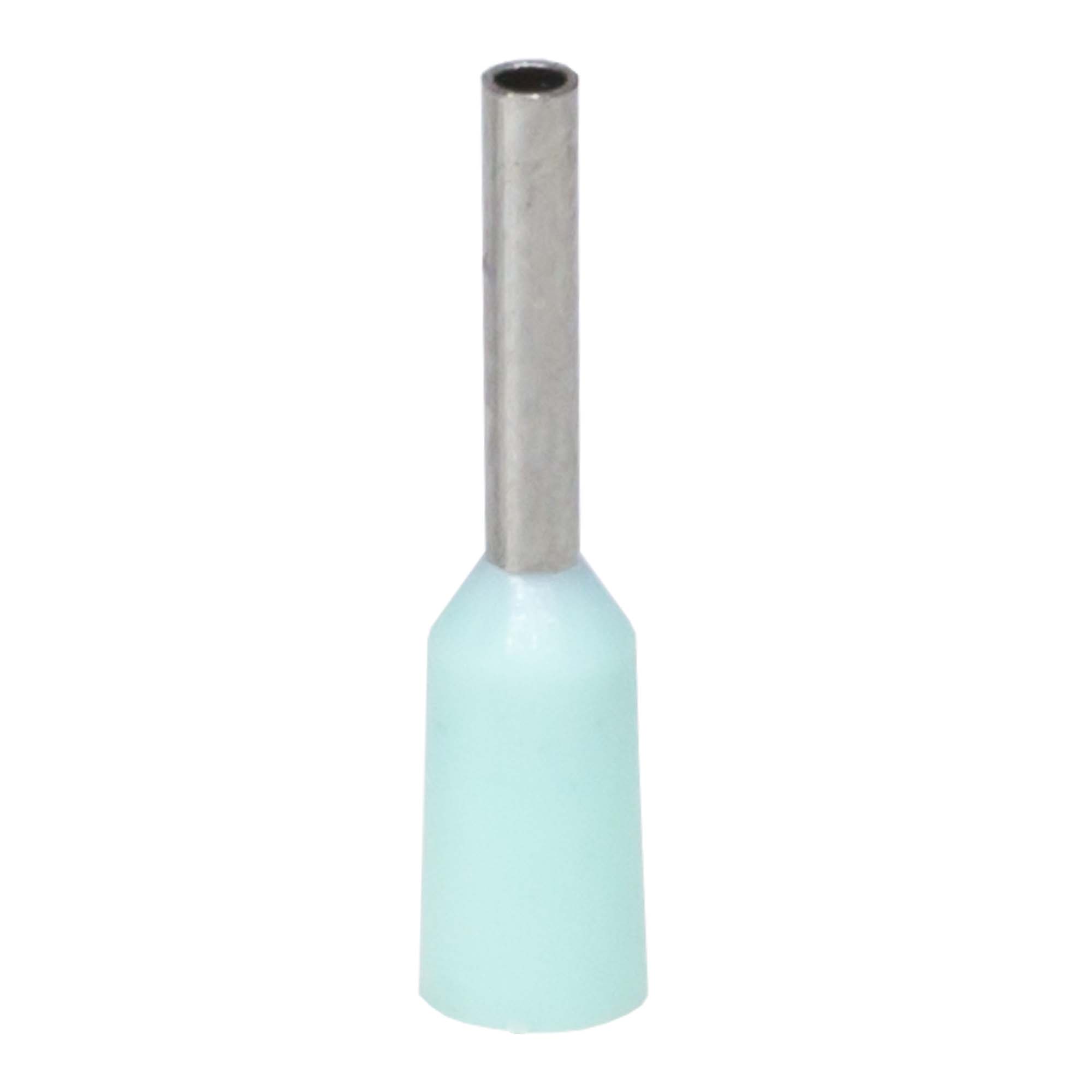

Insulated wire end ferrule for cable cross section 0,34sq.mm, contact length 8mm, turquoise
Code: IF0.34-08TQ
Insulated wire end ferrule for cable cross section 0,34sq.mm, contact length 8mm, turquoise
Code: IF0.34-08TQ
Colour | Turquoise |
Sleeve length, mm | 8 |
Insulated | Yes |
Halogen free | Yes |
Surface protection | Tinned |
Construction type | Standard |
Nominal cross section, mm² | 0.34 |
For cables resistant to short circuit | Yes |
Reel/roll packaging | Yes |
Material | Copper |
With identification flag | No |
Material insulation | Polypropylene (PP) |
AWG size | 22 |
Drawings
Seria | Name | Eplan |
---|---|---|
Cable terminals -"Quadro"
|
