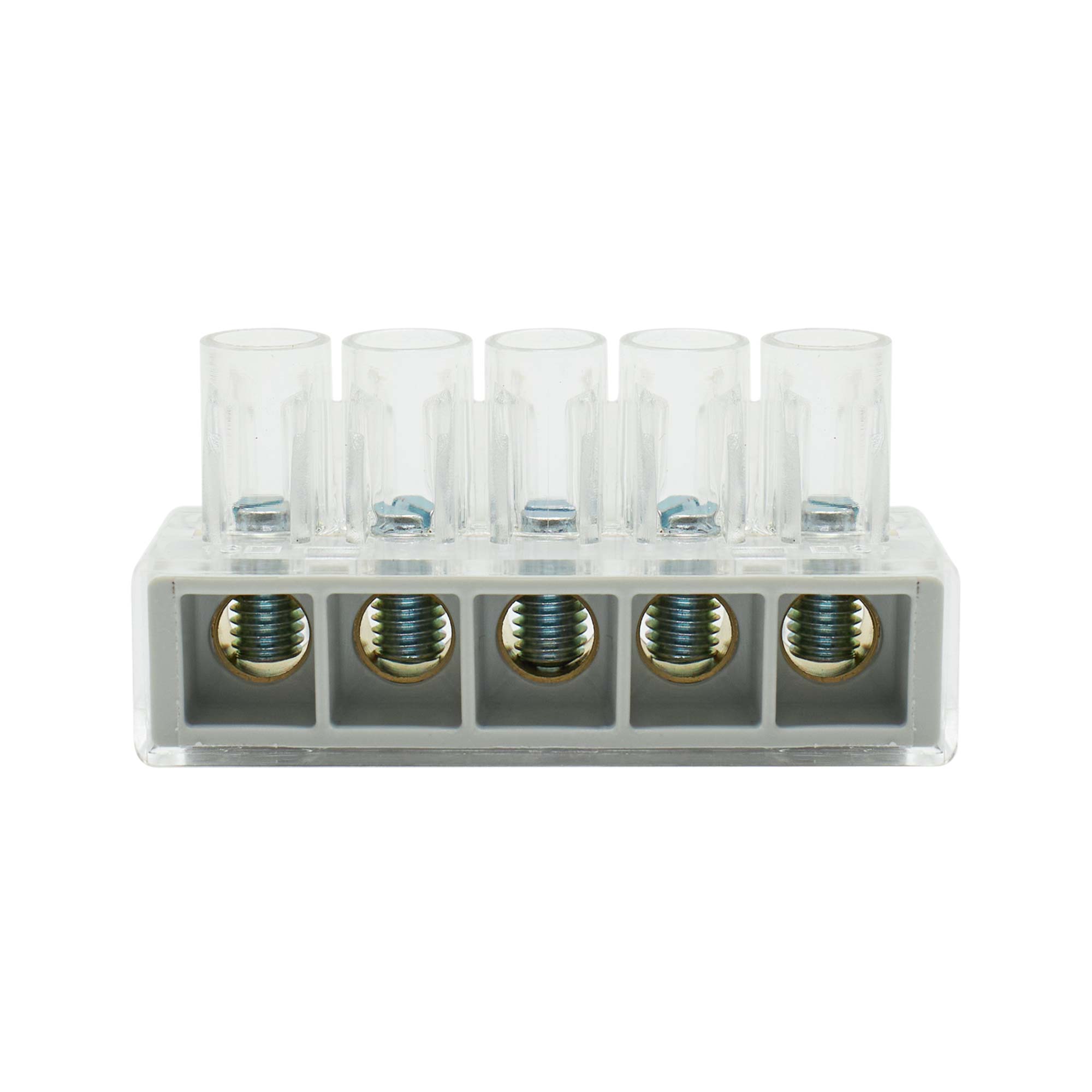

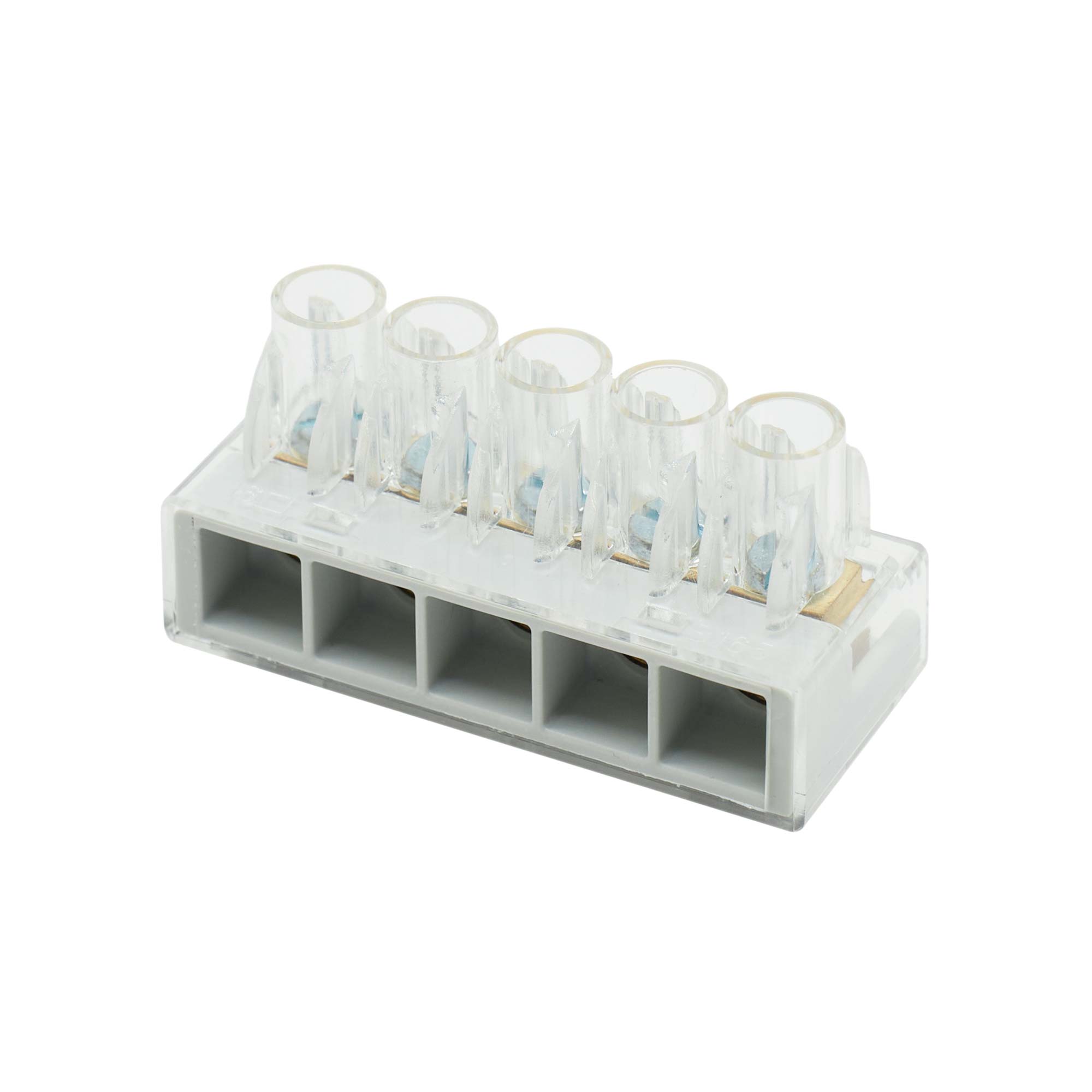

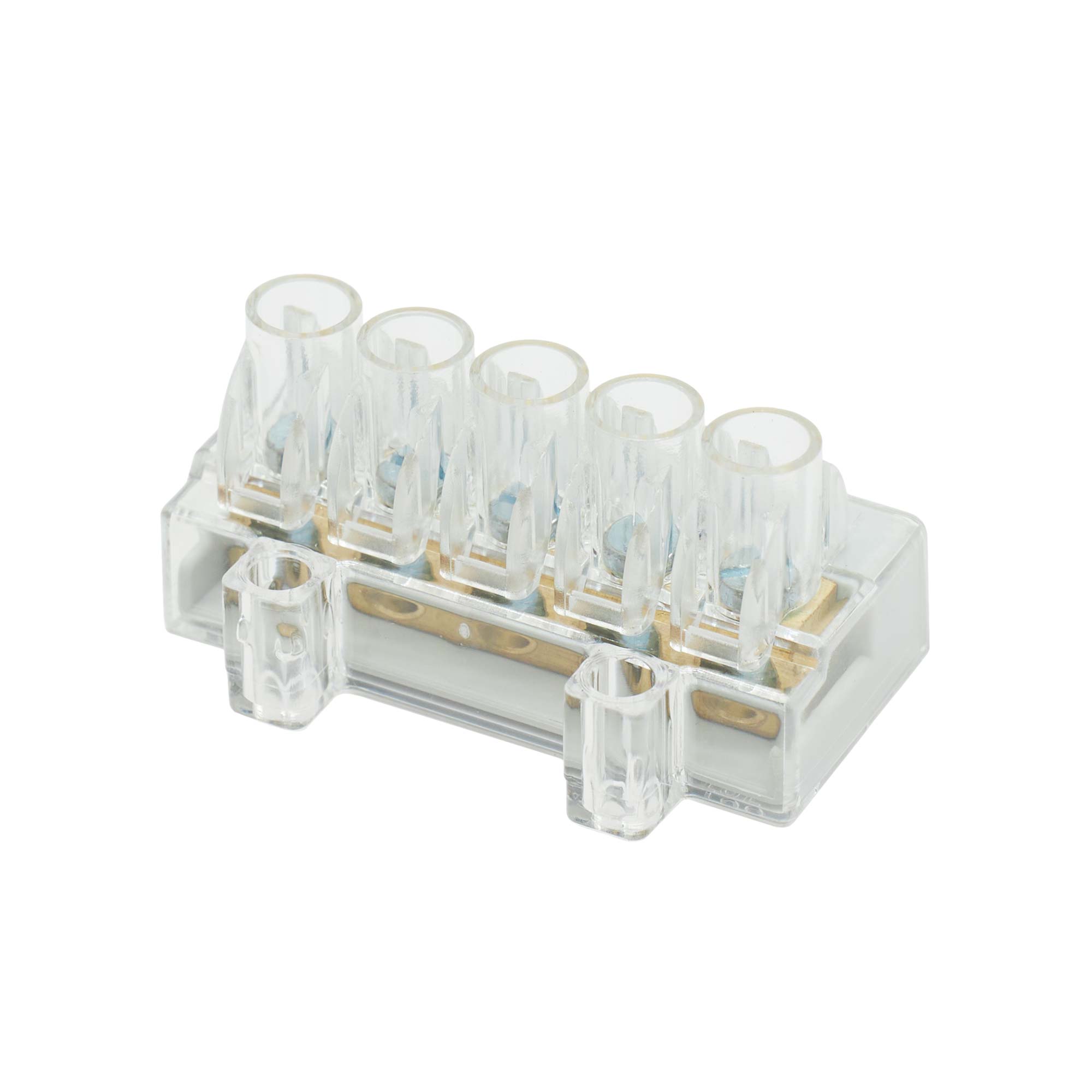

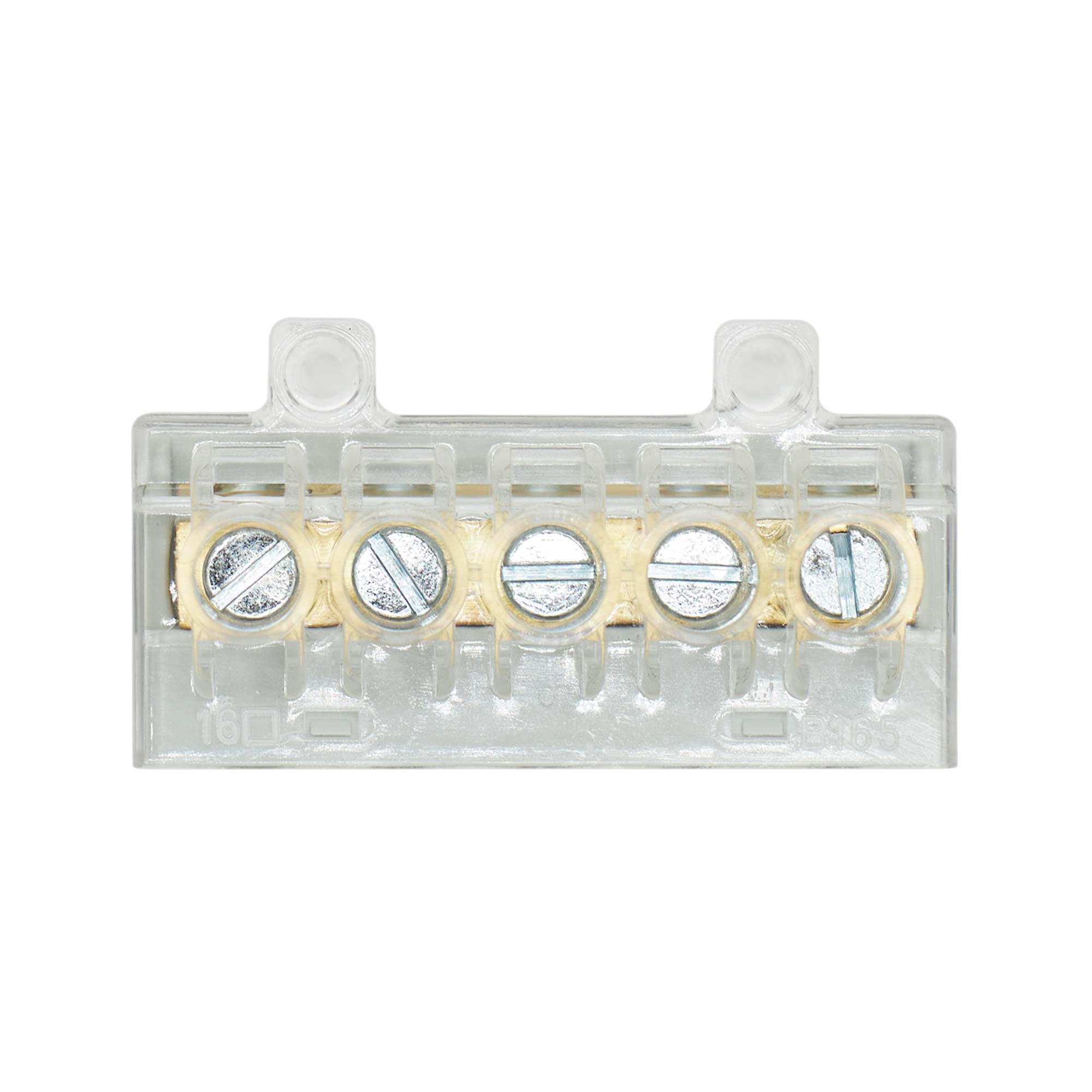

Unipolar terminal blocks 5х6mm
Code: B165
Unipolar terminal blocks 5х6mm
Code: B165
| Mounting method | Other |
| Colour | Grey |
| Rated voltage, V | 500 |
| Number of poles | 1 |
| Length, mm | 25 |
| Operating temperature, °C | -5…85 |
| Number of clamp positions per pole | 5 |
| Width/grid dimension, mm | 50 |
| Closing plate required | Нет |
| Transparent | Нет |
| Connectable conductor cross section multi-wired, mm² | 6...16 |
| Explosion-tested version 'Ex e' | Нет |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Polycarbonate (PC) |
| Connection position | Sideways |
| Product type | Connecting terminal blocks |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Terminal blocks - "Quadro"
|
