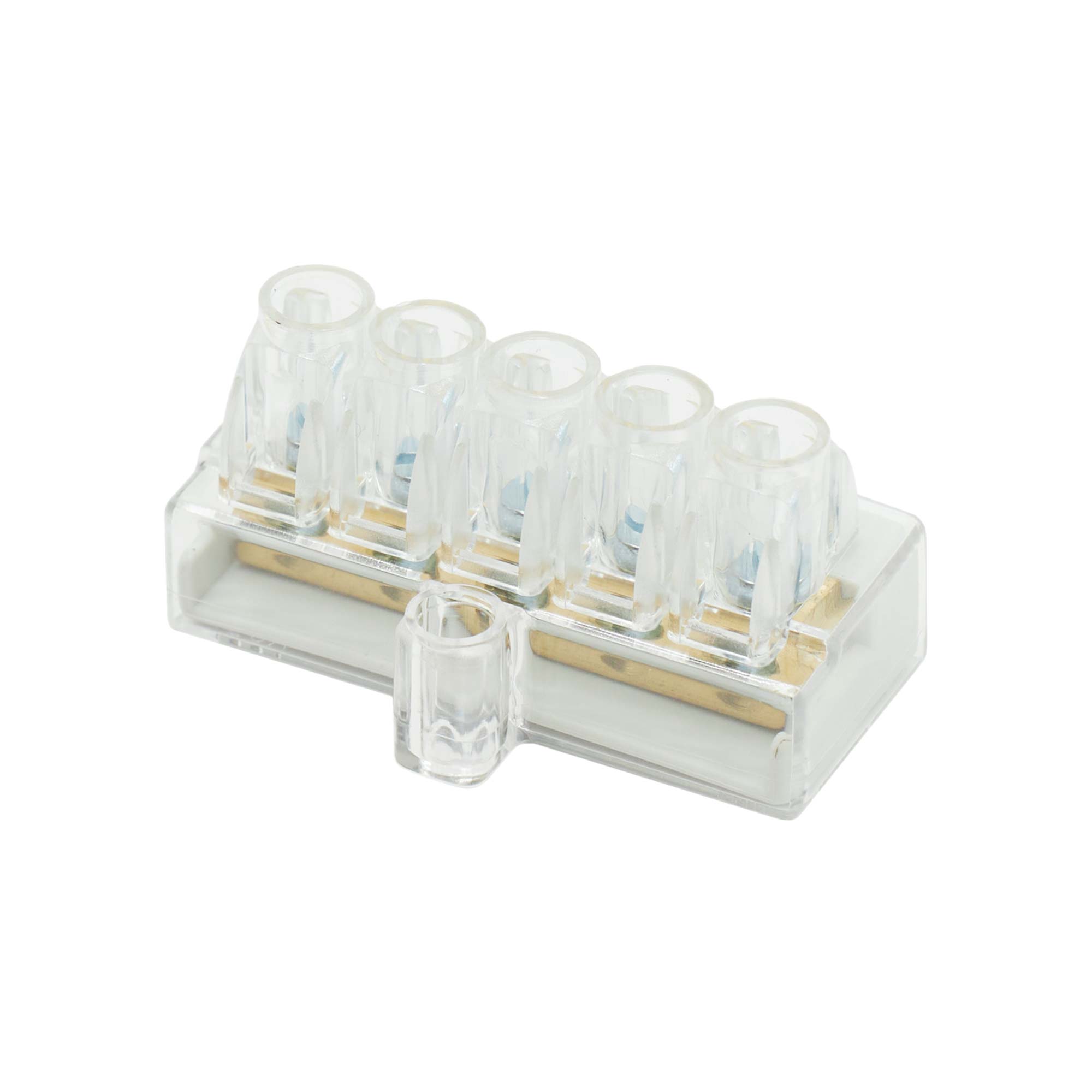

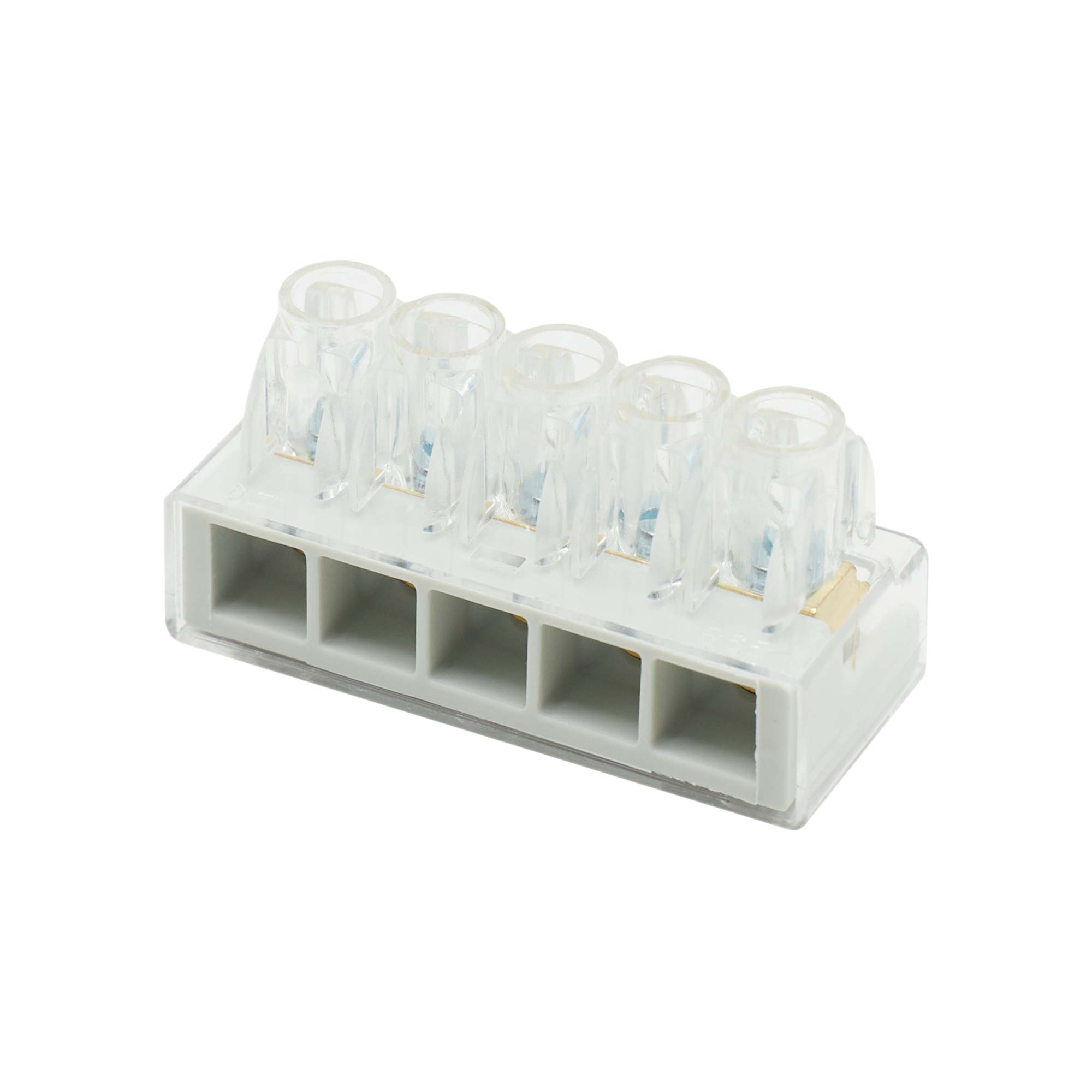

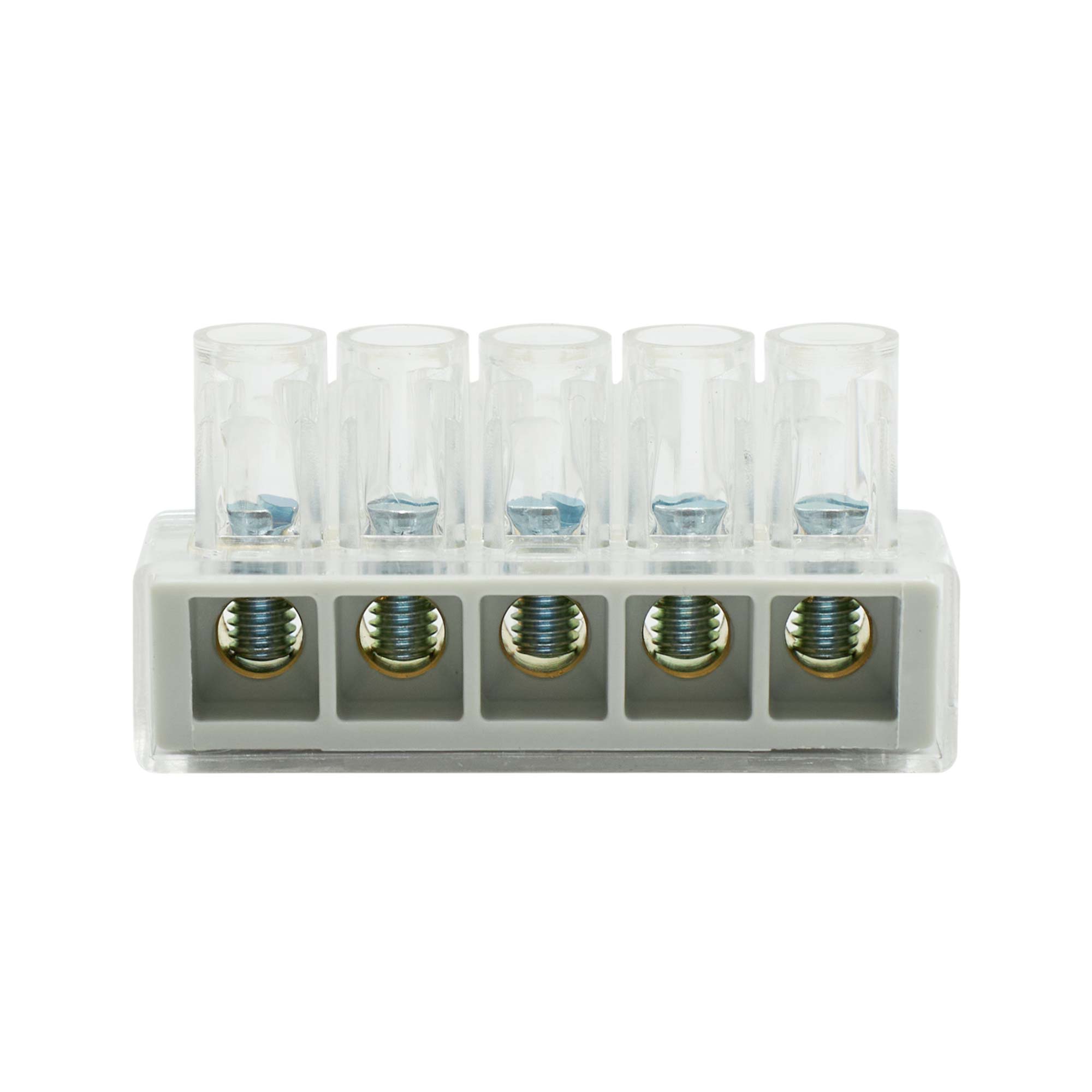

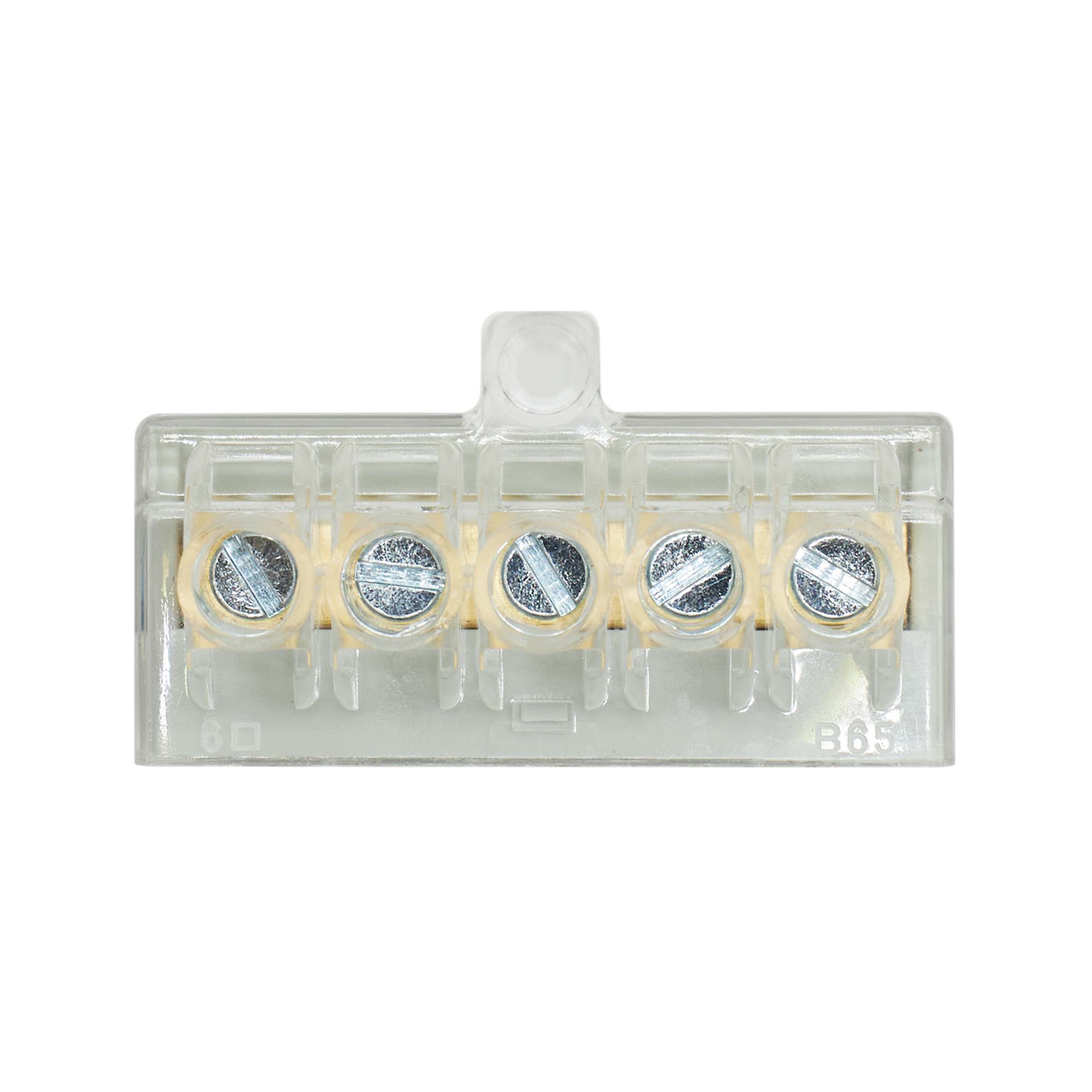

Unipolar terminal blocks 5х4,5mm
Code: B65
Unipolar terminal blocks 5х4,5mm
Code: B65
Mounting method | Other |
Colour | Grey |
Rated voltage, V | 450 |
Number of poles | 1 |
Length, mm | 23 |
Operating temperature, °C | -5…85 |
Number of clamp positions per pole | 5 |
Width/grid dimension, mm | 42 |
Closing plate required | Нет |
Transparent | Нет |
Connectable conductor cross section multi-wired, mm² | 2.5...6 |
Explosion-tested version 'Ex e' | Нет |
Inflammability class of insulation material according to with UL94 | Other |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Material insulation body | Polycarbonate (PC) |
Connection position | Sideways |
Product type | Connecting terminal blocks |
Drawings
Seria | Name | Eplan |
---|---|---|
Terminal blocks - "Quadro"
|
