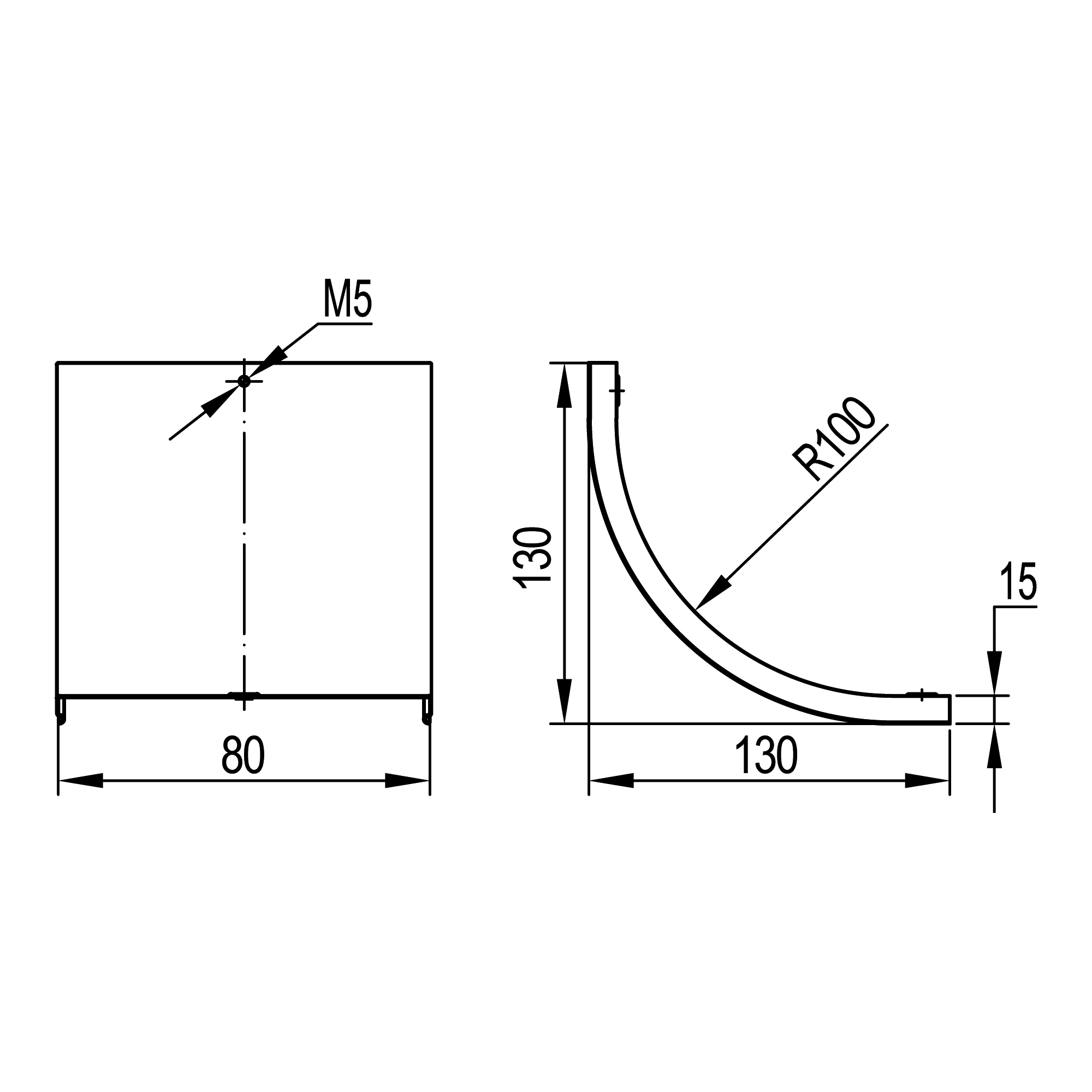

Cover Rising Elbow 90° b. 80 INOX
Code: 38201INOX
Cover Rising Elbow 90° b. 80 INOX
Code: 38201INOX
Colour | Light grey |
Width, mm | 80 |
Surface protection | Bare |
Deflection (angle) | 90° |
Hinging | Yes |
Material quality | Stainless steel |
Length, mm | 130 |
Material | Steel |
Type of fastening | Snapped on |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Change of direction | Vertically rising |
Product type | Covers for system accessories |
Type of accessories | Cover for 90º vertical inner bend |
Material | Stainless steel AISI 304 |
Width | 80 mm |
