Perforated Straight Element 100х100 L 3000 INOX
Code: 35341INOX
Perforated Straight Element 100х100 L 3000 INOX
Code: 35341INOX
Colour | Light grey |
Width, mm | 100 |
Model | Without connector |
Height, mm | 100 |
Surface protection | Bare |
Material thickness, mm | 0.7 |
Side wall perforation | Yes |
Material quality | Stainless steel |
Length, mm | 3000 |
Material | Steel |
Mounting perforation in bottom | Yes |
Useful cross section, mm² | 9800 |
Suitable for circuit integrity | Yes |
Stainless steel, pickled | Yes |

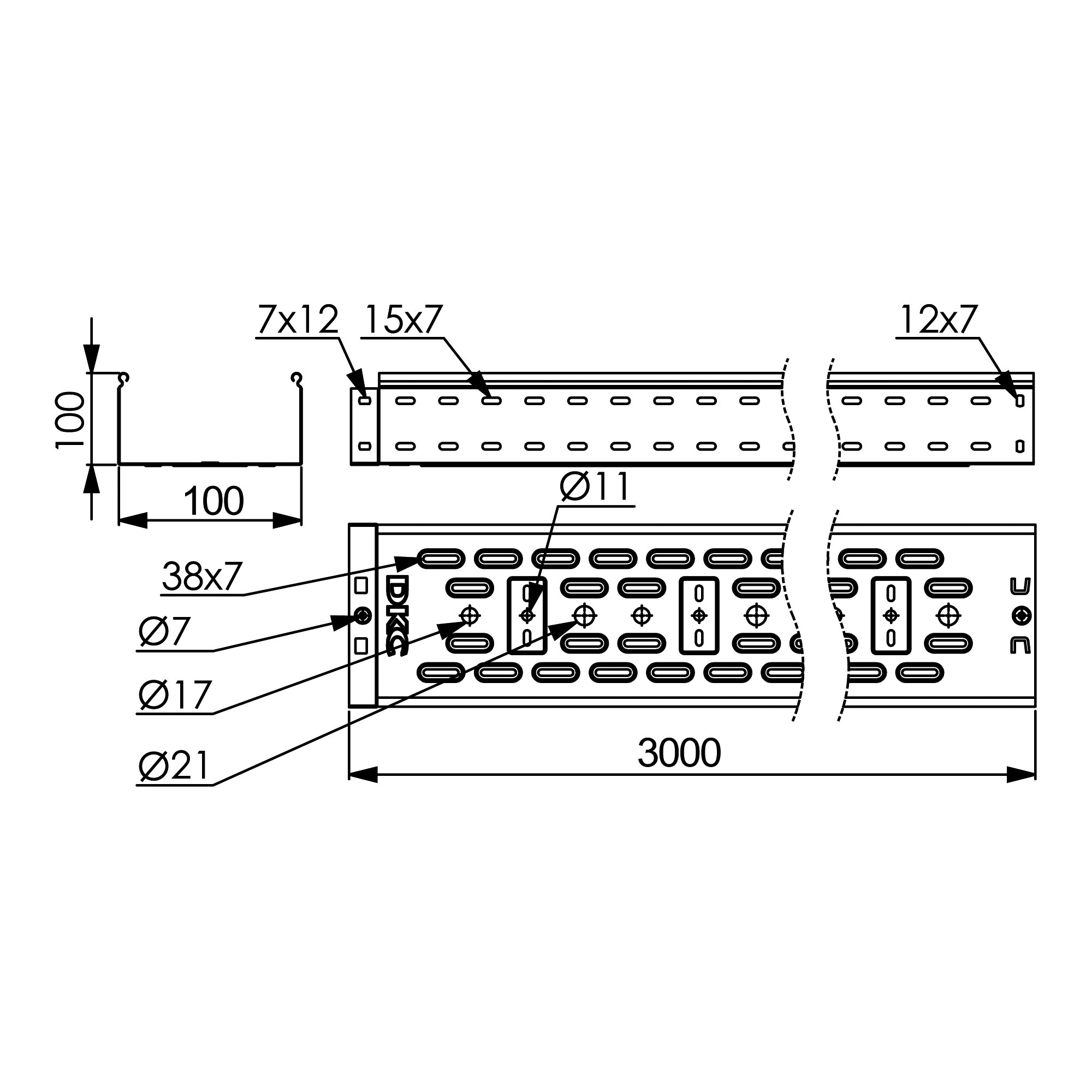

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
