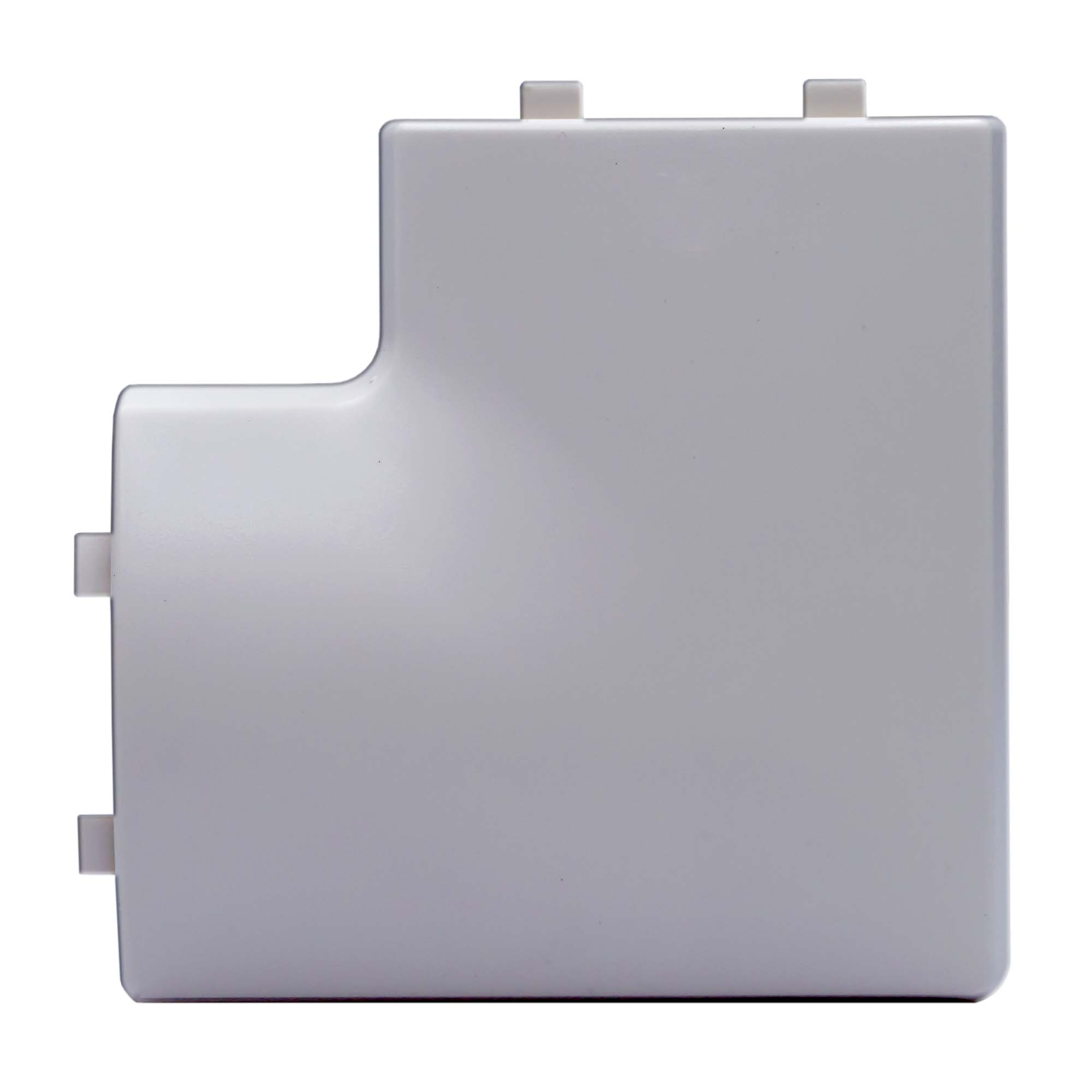

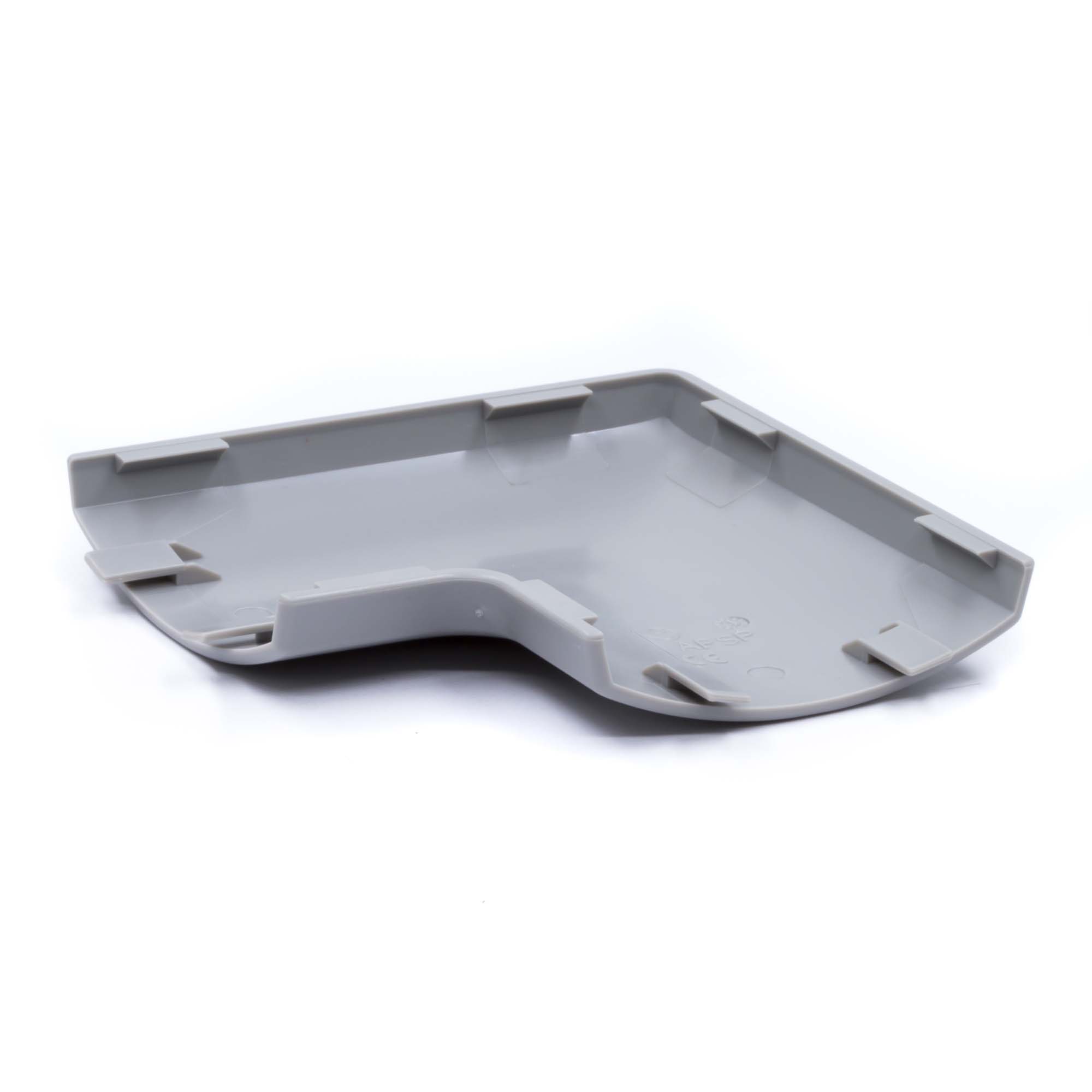

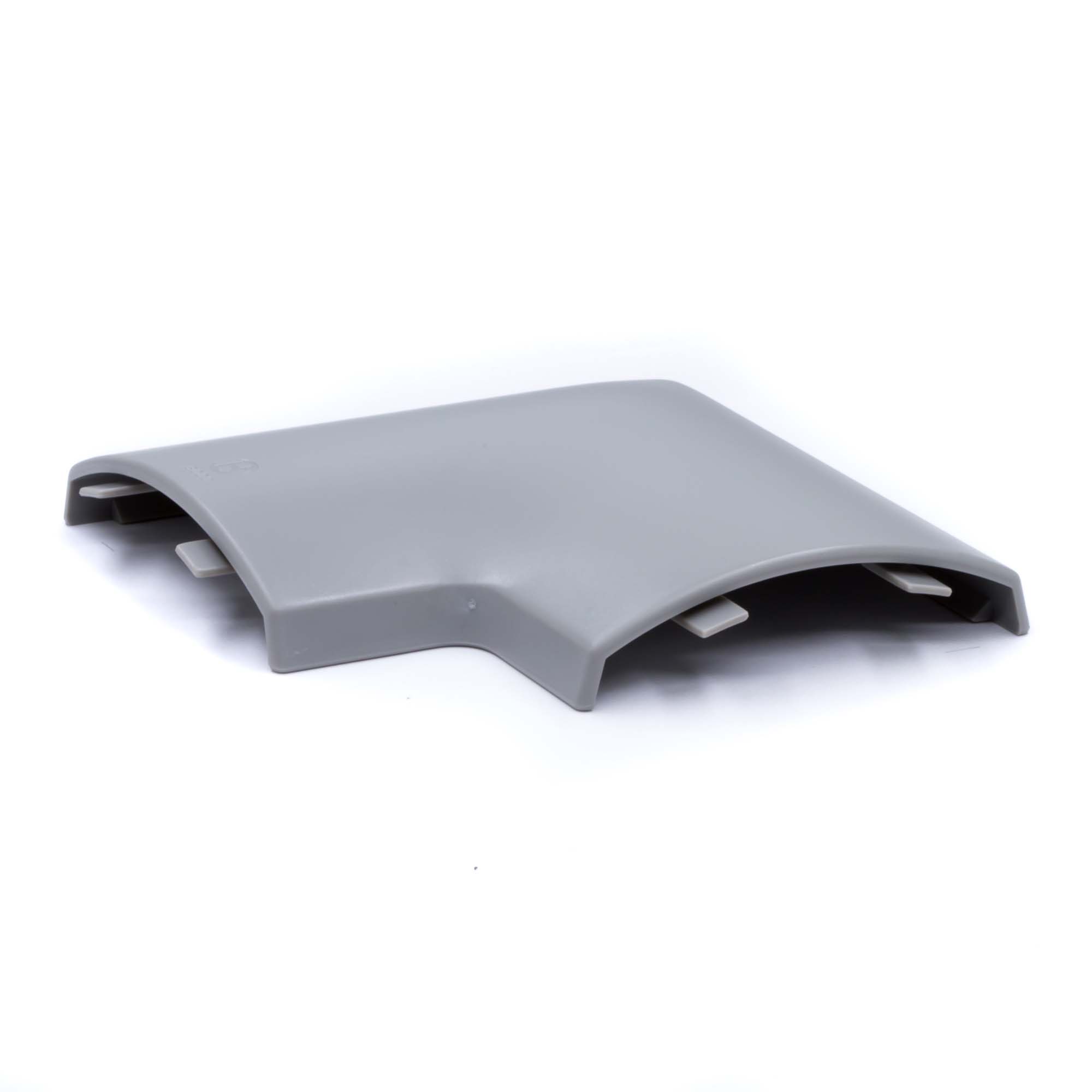

Flat L-form angle for cable duct floor 75х17 mm, APSP G, gray

Code: 05912
  • To ask a question

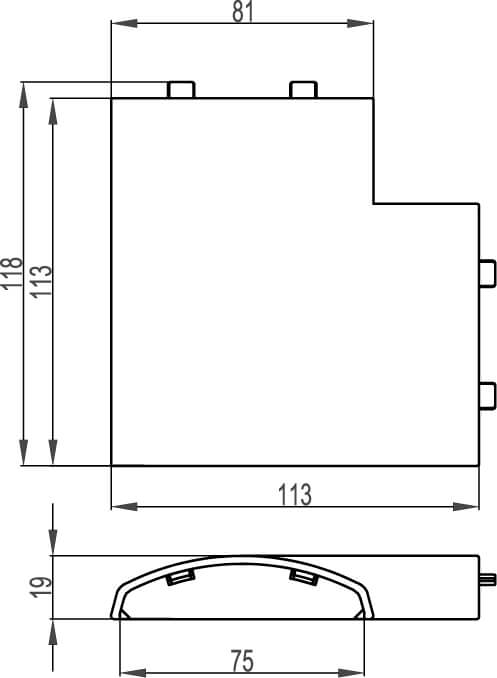

Width, mm 95.1
Height, mm 17.5
Colour Light grey
Material Plastic
Material ABC-plastic
Temperature of mounting, °C +5°С ... +60°С
Width (nominal), mm 75
Ingress Protection rating, IP IP40
Temperature of operation, °C +5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 17
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Flat angle
