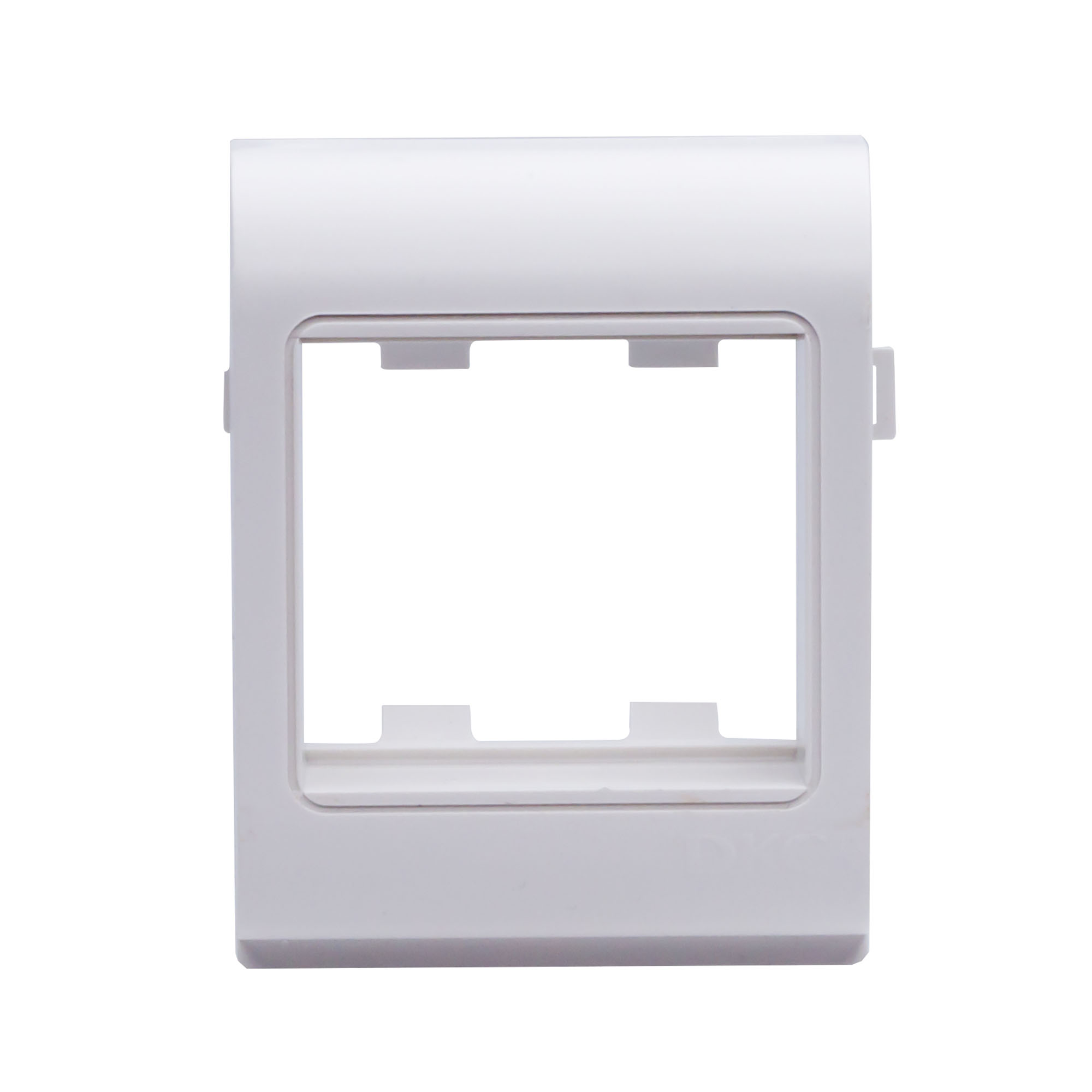

PDA-45N 80 Frame-support 2 mod. 45x45 mm

Code: 00513
  • To ask a question
Colour White
Width, mm 80
Halogen free Yes
Height, mm 80
Depth, mm 26.4
Number of units 2
With hinged lid Yes
Surface protection Decor
Built-in height, mm 45
Built-in width, mm 45
Label space/information surface Yes
Material Plastic
Type of fastening Clamp mounting
Mounting direction Vertical
Degree of protection (IP) IP40
Suitable for floor box Yes
Transparent Yes
Surface finishing Glossy
Suitable for wall duct Yes
Suitable for flush-mounted installation Yes
Suitable for built-in installation Yes
Number of units horizontal 1
Number of units vertical 1
Number of modules 2
Decoration Декор по эскизу
Without bridge Yes
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 80
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Supporting plate
