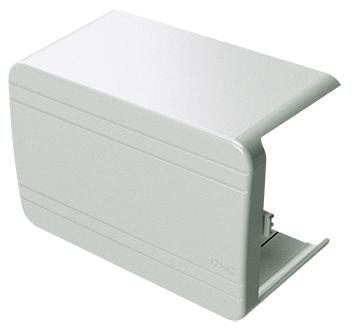

NTAN 100x60 T-form angle (branch), white
Code:
01761
NTAN 100x60 T-form angle (branch), white
Code:
01761
| Colour | Pure white |
| Width, mm | 100 |
| Model | Base unit and cover |
| Halogen free | Yes |
| Depth, mm | 60 |
| RAL-number | 9016 |
| Width branch, mm | 100 |
| Material quality | Polyvinyl chloride (PVC) |
| Material | Plastic |
| Mounting method cover | Inner lying |
| Number of covers | 1 |
| Mounting perforation in bottom | Yes |
| With cable fixing clip | Yes |
| With duct connector | Yes |
| With protection film | Yes |
| Symmetric | Yes |
| Surface protection | Untreated |
| Material | ABC-plastic |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 100 |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Q'ty of bays | 1 |
| Height (nominal), mm | 60 |
| Q'ty of holes | 2 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Product type | T-branch |
