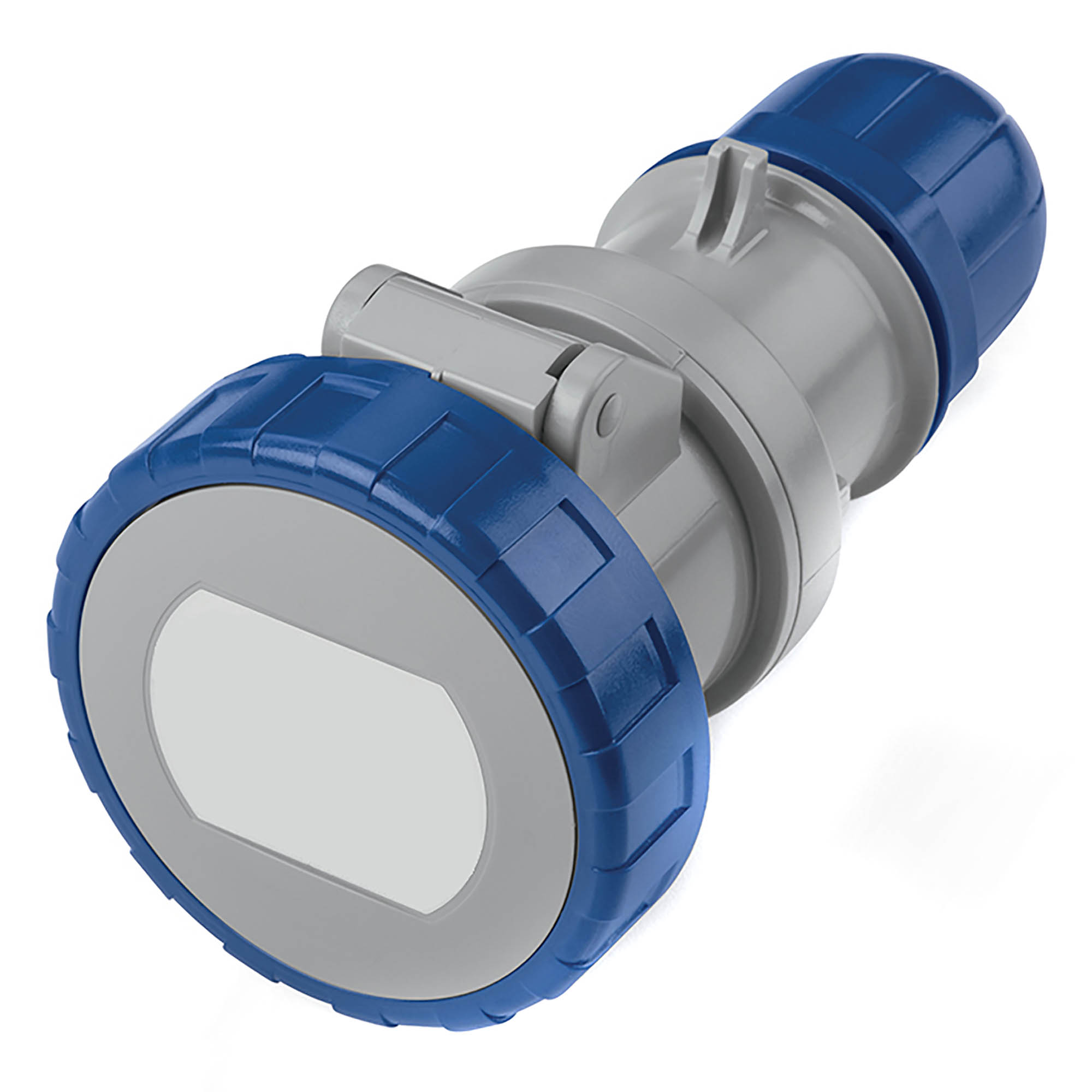

Cable socket screwless IP67 16A 2P+E 230V
Code: DIS3181643P
Cable socket screwless IP67 16A 2P+E 230V
Code: DIS3181643P
Model | Surface mounted (plaster) |
Number of poles | 3 |
Material | Plastic |
Type of fastening | External mounting |
IEC-amperage, A | 16 |
Degree of protection (IP) | IP67 |
Military model | No |
Identification colour | Blue |
Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
Connection system | Screw less terminal |
Contact less detection of the sense of rotation | No |
Angle of plug | Right-angled |
For heavy conditions (according to VDE) | No |
Phase inverter | No |
Empty locations on mounting rail | No |
Number of height units | 1 |
With earth leakage switch | No |
Total number of groups | 1 |
Width of device | 73 |
Height of device | 75 |
Depth of device | 142 |
Temperature of operation, °C | 60 |
Shock resistance, J | 5 |
Product type | Cable socket |
Voltage | 230 V |

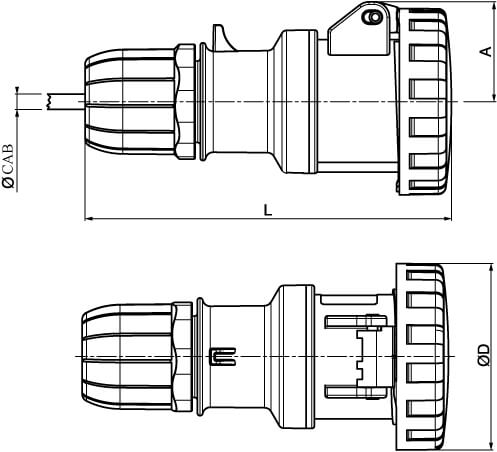

Drawings
Seria | Name | DWG | Eplan |
---|---|---|---|
