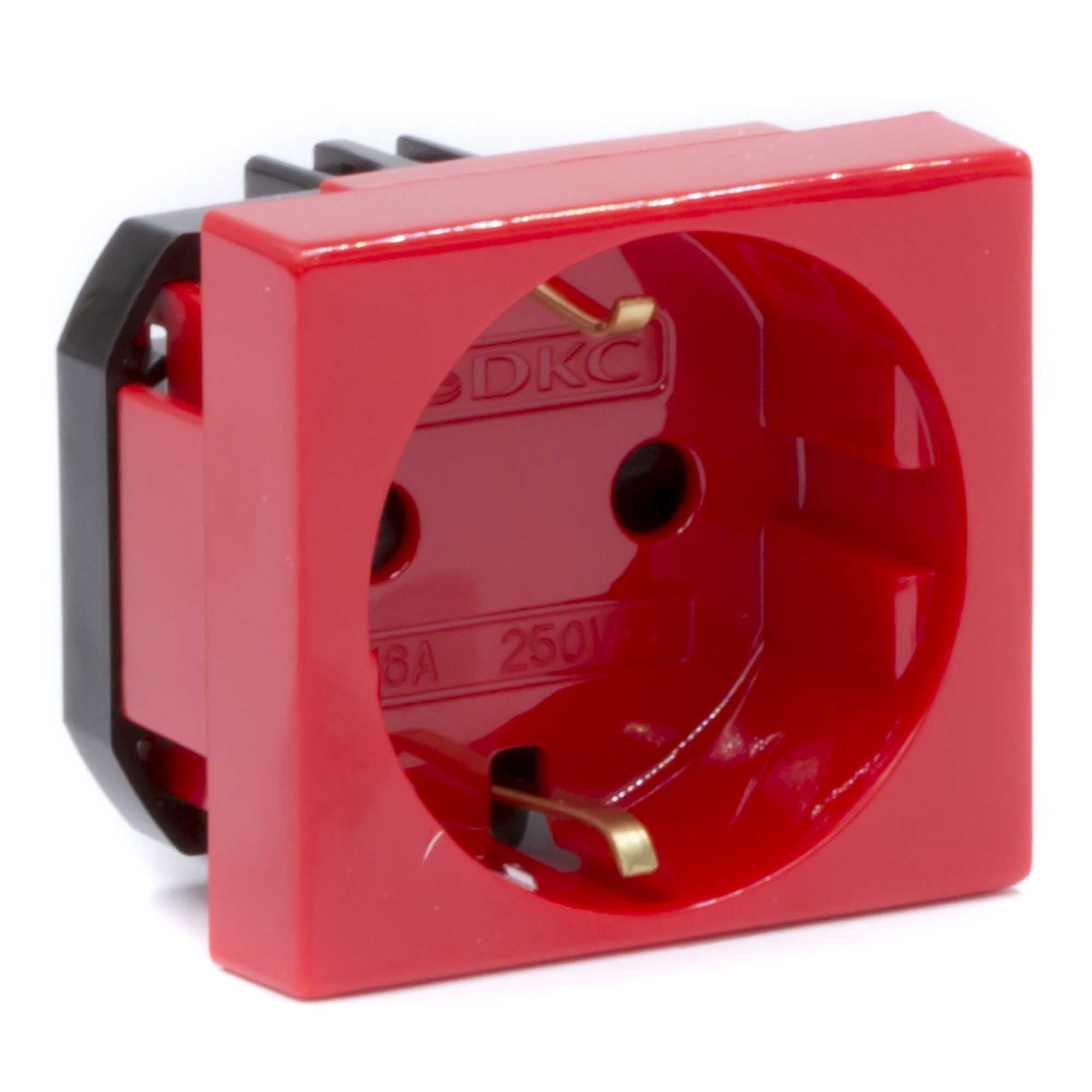

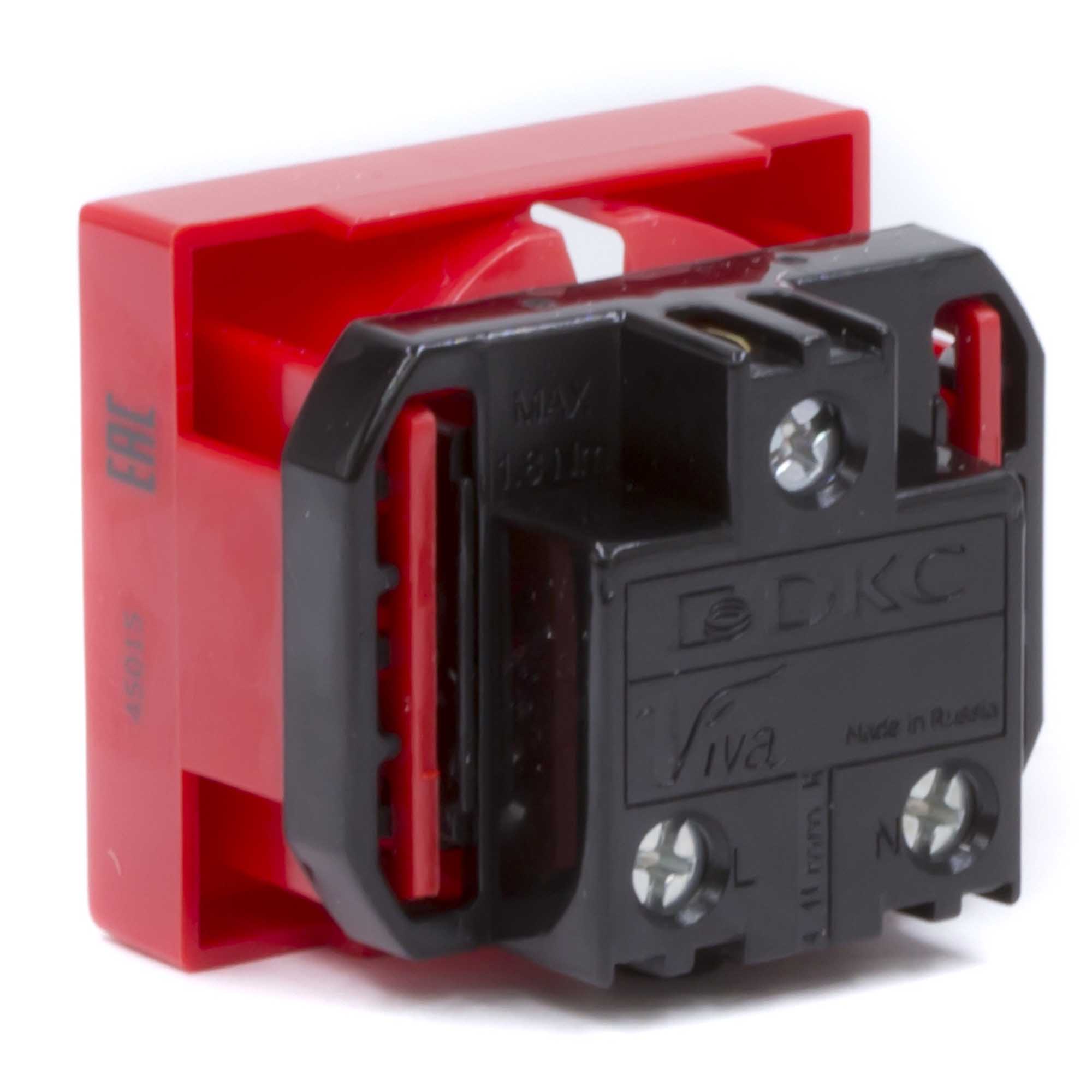

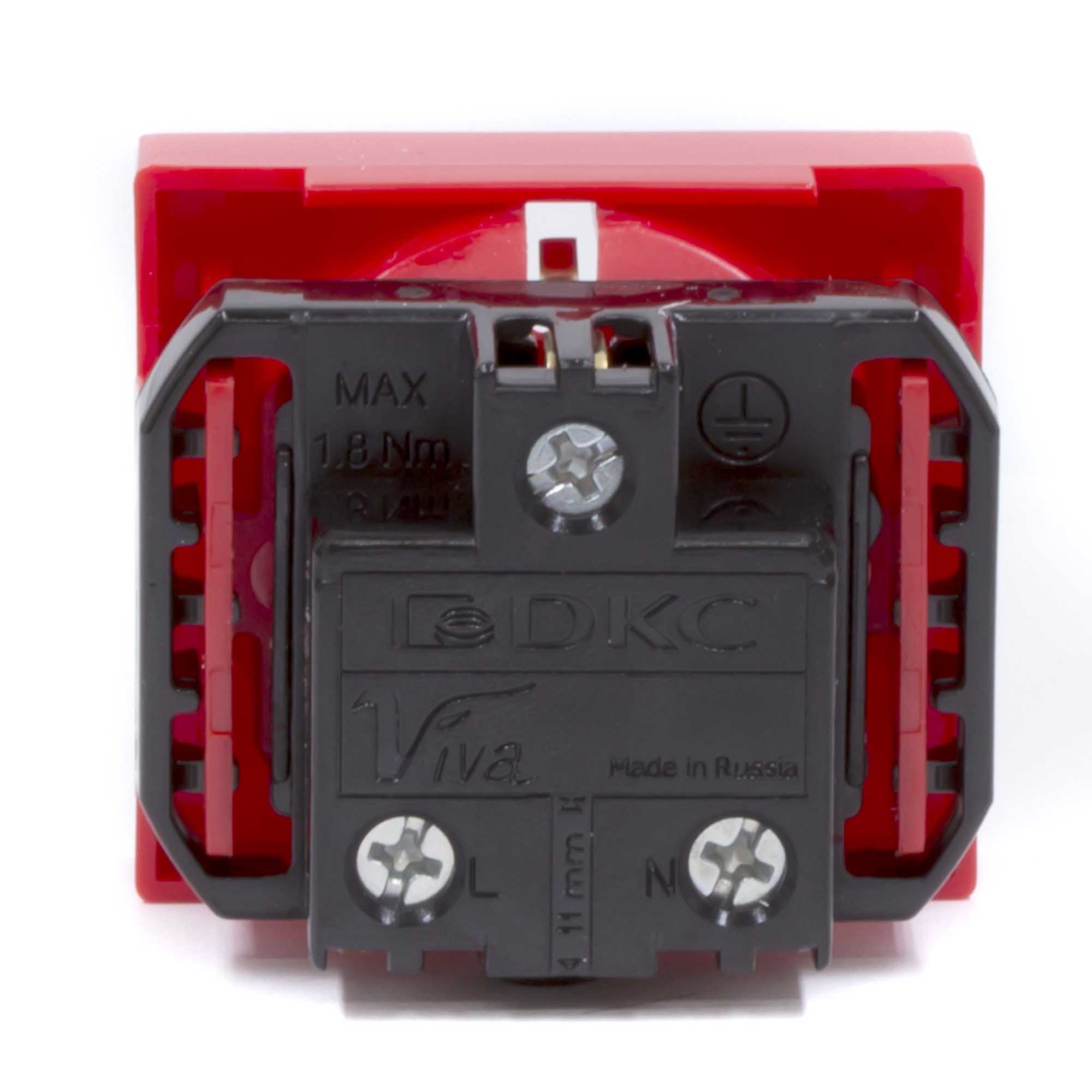

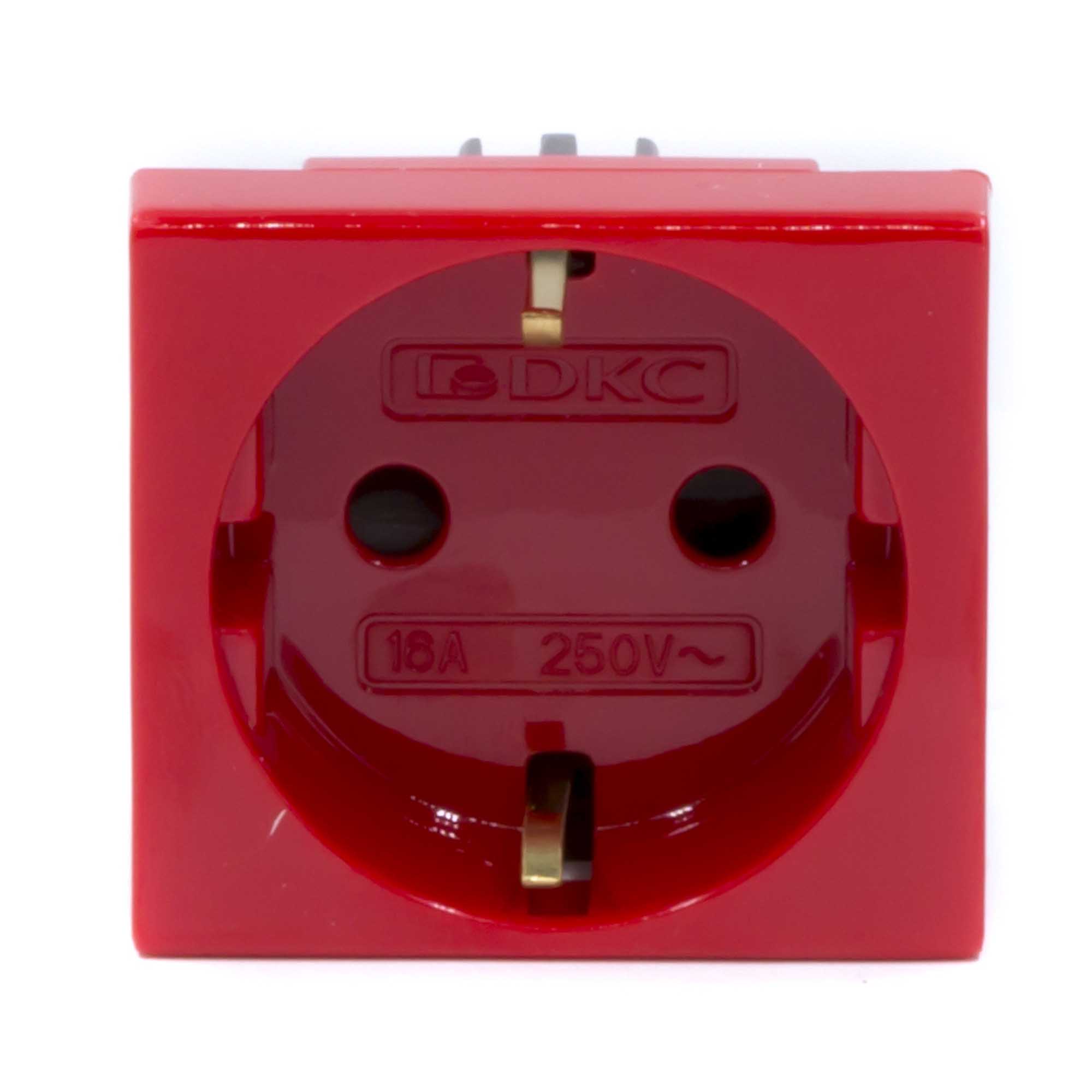

Outlet 2Р+Е, Viva, with safety shutters, 2 mod., red

Code: 45015
Outlet 2Р+Е, Viva, with safety shutters, 2 mod., red
  • To ask a question
Nominal current, A 16
Nominal voltage, V 220...250
Mounting method Wall duct
Colour Red
Model Protective contact (SCHUKO)
Halogen free Yes
Number of units 1
Lockable Yes
With hinged lid Yes
Surface protection Decor
With child-protection Yes
Label space/information surface Yes
Eject-mechanism Yes
Material quality Thermoplastic
Rotated central insert Yes
Over voltage protection Yes
Fault current protection Yes
Material Plastic
Type of fastening Mounting with screw
For heavy conditions (according to VDE) Yes
Imprint/indication Without imprint
Transparent Yes
Surface finishing Glossy
With miniature fuse Yes
Suitable for degree of protection (IP) IP20
Phase pickup None

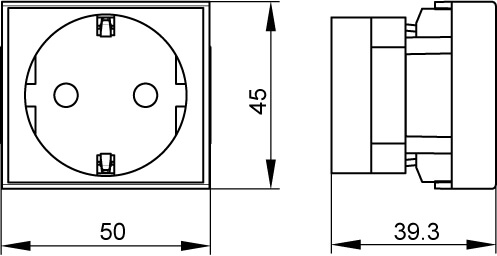

Width of device, mm 50
Height of device, mm 45
Depth of device, mm 39.3
With function lighting Yes
With orientation lighting Yes
Special power supply No special power supply
Cover Central cover plate
Number of modules 2
Assembly arrangement Basic element with central cover plate
Connection type Screwed terminal
Complete with plug Yes
Decoration Декор по эскизу
Antibacterial treatment No
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 50
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL3
Height (nominal), mm 45
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
