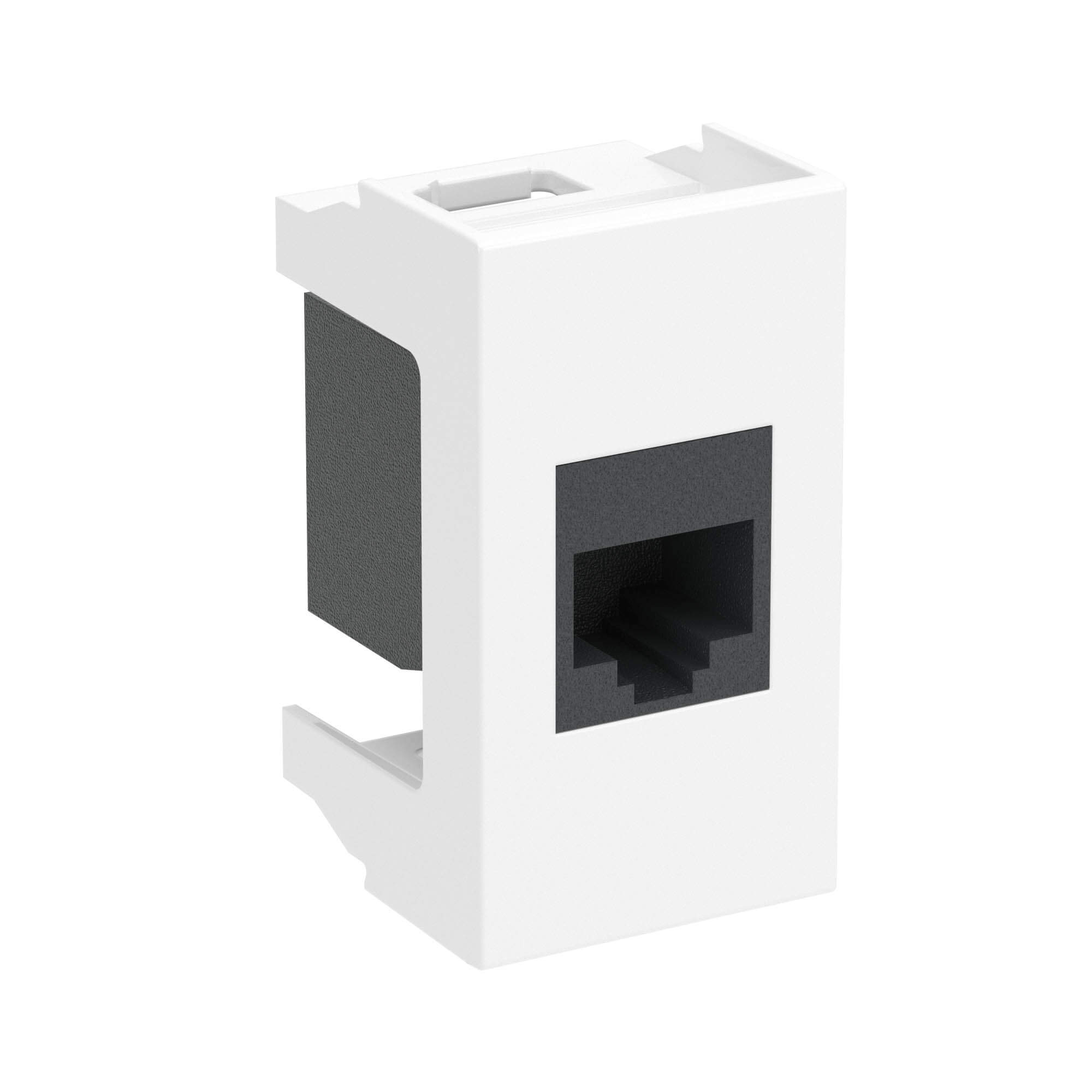

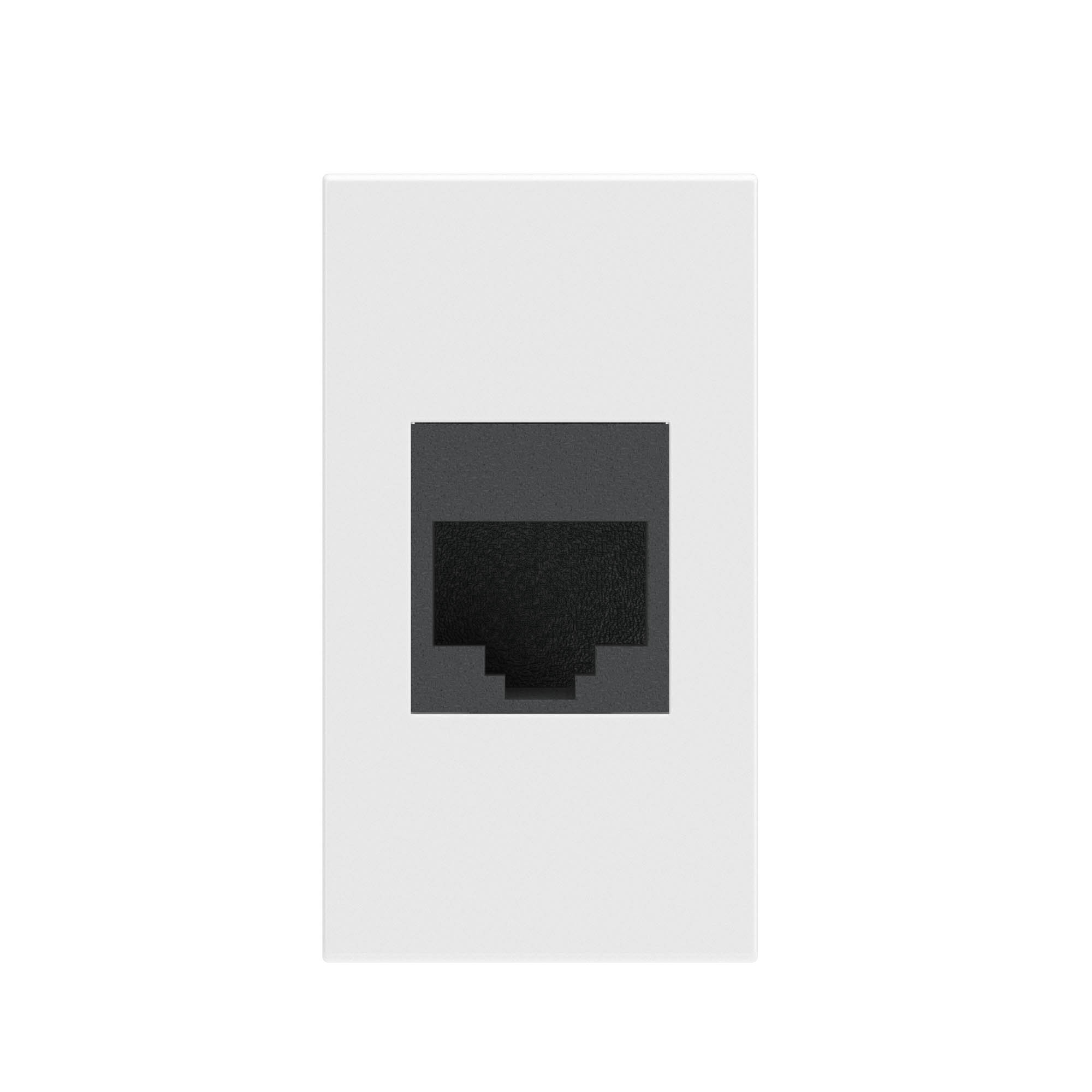

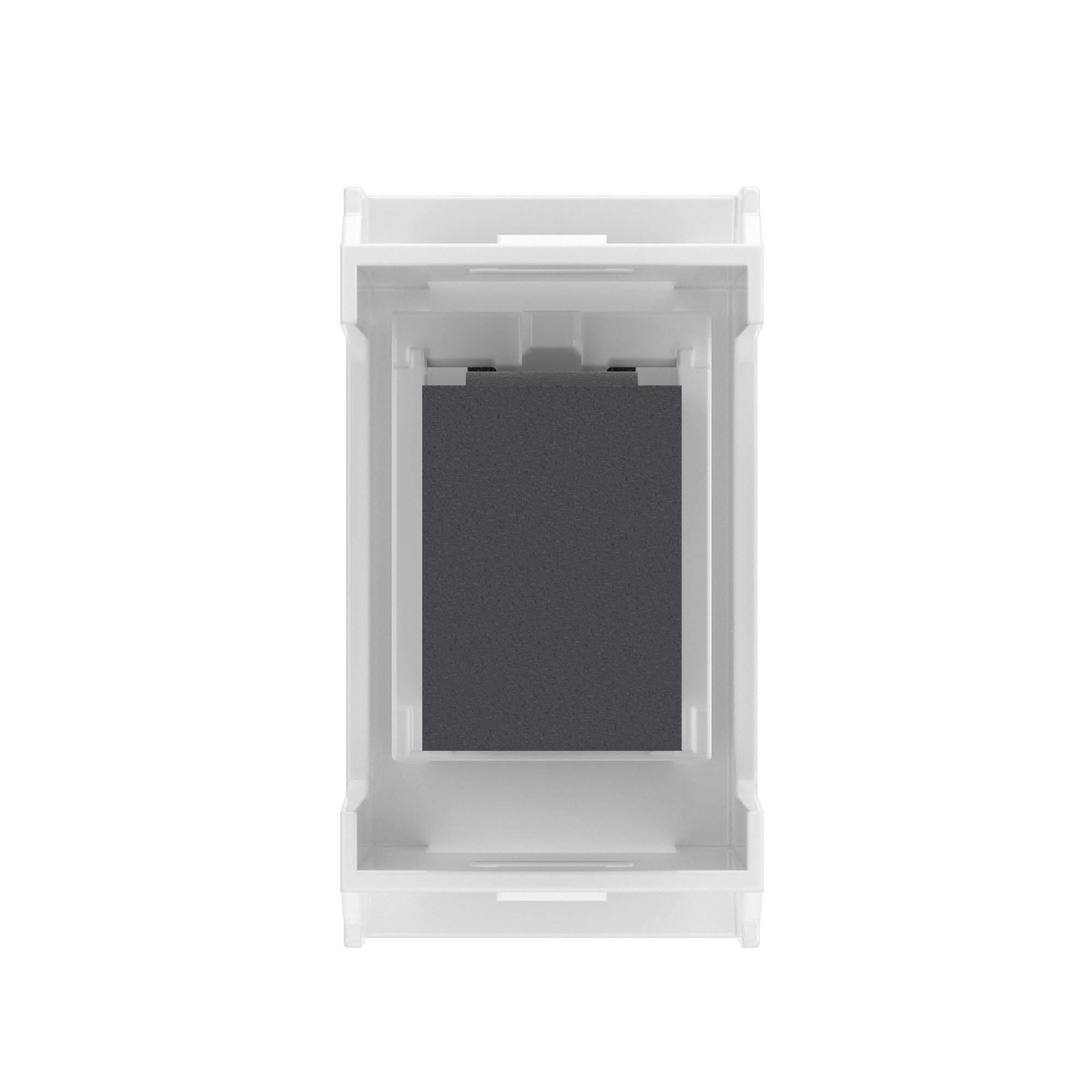

Computer socket RJ-45, 5e, Viva, 1 mod., white

Code: 45037
Computer socket RJ-45, 5e, Viva, 1 mod., white
  • To ask a question
Mounting method Wall duct
Assembly arrangement Central cover plate
Colour White
Halogen free Yes
With hinged lid Yes
Utilization For data connection housing
Surface protection Decor
With strain relief Yes
Material quality Thermoplastic
Material Plastic
Type of fastening Mounting with screw
Luster terminal Yes
With dust cover Yes
With imprint Yes
Support ring Yes
Transparent Yes
Surface finishing Glossy
Suitable for degree of protection (IP) IP20
Imprintable label Without indication field
With buses/couplings Yes
Suitable for number of connectors 1
Outlet direction Straight
Material of case ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С

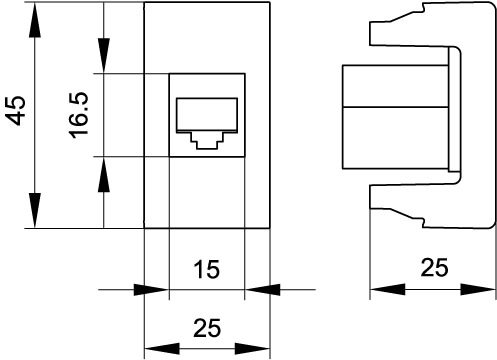

Width (nominal), mm 25
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL3
Height (nominal), mm 45
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
