Computer socket RJ-45, 5e FTP, Viva, 1 mod., white

Code: 45047
Code: 45047
  • To ask a question
Modular version Yes
Category 5E
Duct installation Yes
Type of connector RJ45 8(8)
Floor box/sub-floor mounted Yes
With label space No
Design suitable Yes
Degree of protection (IP) IP20

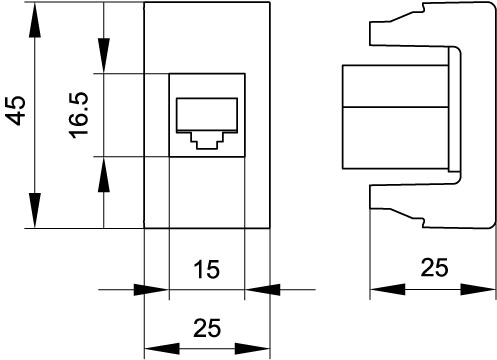

Width of device, mm 25
Height of device, mm 45
Depth of device, mm 25
Mounting method Surface mounted (plaster)
Assembly arrangement Basic element with central cover plate
Colour White
Outlet direction Straight
Suitable for number of connectors 1
Type of fastening Engage (snap)
Shielded buses Yes
With dust cover No
With buses/couplings Yes
Connection type Other
Material Plastic
Surface finishing Glossy
Material of case ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 25
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL3
Height (nominal), mm 45
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Color White
Number of modules 1
Product type Computer socket
Type of installation Modular product
