Modular wall box for wiring devices VIVA, IP40, 2 modules
Code: 54640
Modular wall box for wiring devices VIVA, IP40, 2 modules
Code: 54640
Colour | Grey |

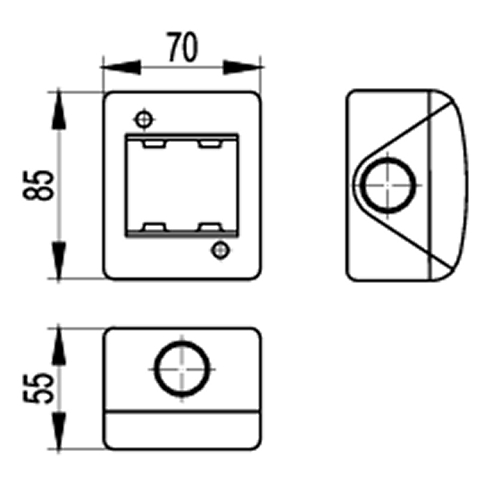

Width, mm | 70 |
Depth, mm | 55 |
Surface protection | Untreated |
Length, mm | 85 |
Sealable | Yes |
Circuit integrity | None |
Material | Plastic |
Number of inlets | 1 |
Explosion-tested version | Yes |
Cover attachment | Screwed |
With screening | Yes |
Degree of protection (IP) | IP40 |
Inlet from the rear | Yes |
For Ex-zone gas | None |
Tackable | Yes |
For Ex-Zone dust | None |
Shape | Rectangular |
For tube diameter | 20 mm |
Type of housing feed-through | Preembossing |
Equipped with | None |
Color | gray |
Material | ABC-plastic |
-5°С ... +60°С | -5°С ... +60°С |
Ingress Protection rating, IP | IP40 |
от -25°С до +60°С | from -25°С to +60°С |
Product type | Wall box |
ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
3 года | 3 years |
Number of modules | 2 |
Type of installation | Open installation |
