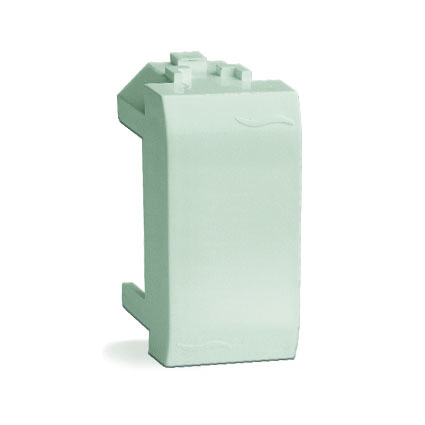

Blanking plate, 1 mod., beige
Code:
75616S
Blanking plate, 1 mod., beige
Code:
75616S
| Colour | Beige |
| Model | Central cover plate |
| Utilization | Blind plate |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Engage (snap) |
| Imprint/indication | Without imprint |
| Monitoring window/light outlet | No |
| Impact strength | IK04 |
| With label area | No |
| With exchangeable lens/symbol | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Number of modules (module system) | 1 |
| Material of case | ABC-plastic |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 21.5 |
| Ingress Protection rating, IP | IP20 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL3 |
| Height (nominal), mm | 43 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Color | Ivory |
| Type of installation | Modular product |
| Product type | Plug |
| Number of modules | 1 |
