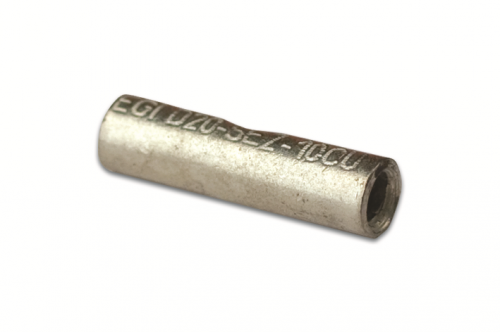

Butt-connectors 25 mm²
Code: 2F20
Butt-connectors 25 mm²
Code: 2F20
Surface protection | Tinned |
Material | Copper |
Model | Standard version |
Type of connection | Percussion connector |
Insulation | None |
Oil stop/centre bar | No |
For pull protected connections | Yes |
Colour insulation | None |
Number of branches | 1 |
Nominal cross section, mm² | 25 |
Suitable for fine strand conductors | Yes |
Suitable for flat conductors | No |
Suitable for high temperatures (to 650 °C) | No |
Suitable for insulated varnish | Yes |
Suitable for solid cores | Yes |
Useful for stranded conductors | Yes |
Suitable for round conductors | Yes |
Sleeve form | Long |
Insulation | Not isolated |
Flange shape | Sleeve |
Product type | Non insulated terminals |
nominal cross section | 25 mm² |
