Model | Singular profile |
Height, mm | 29 |
Surface protection | Hot-dip galvanized |
Material thickness, mm | 2.5 |
With toothing | Yes |
Length, mm | 6000 |
Material | Steel |
Type of perforation | 3 sides punched |
Profile shape | U-profile |
Slit width, mm | 26.5 |
Hole width, mm | 10.5 |
Snap-off | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Material | Hot-dip galvanized |
Accessories

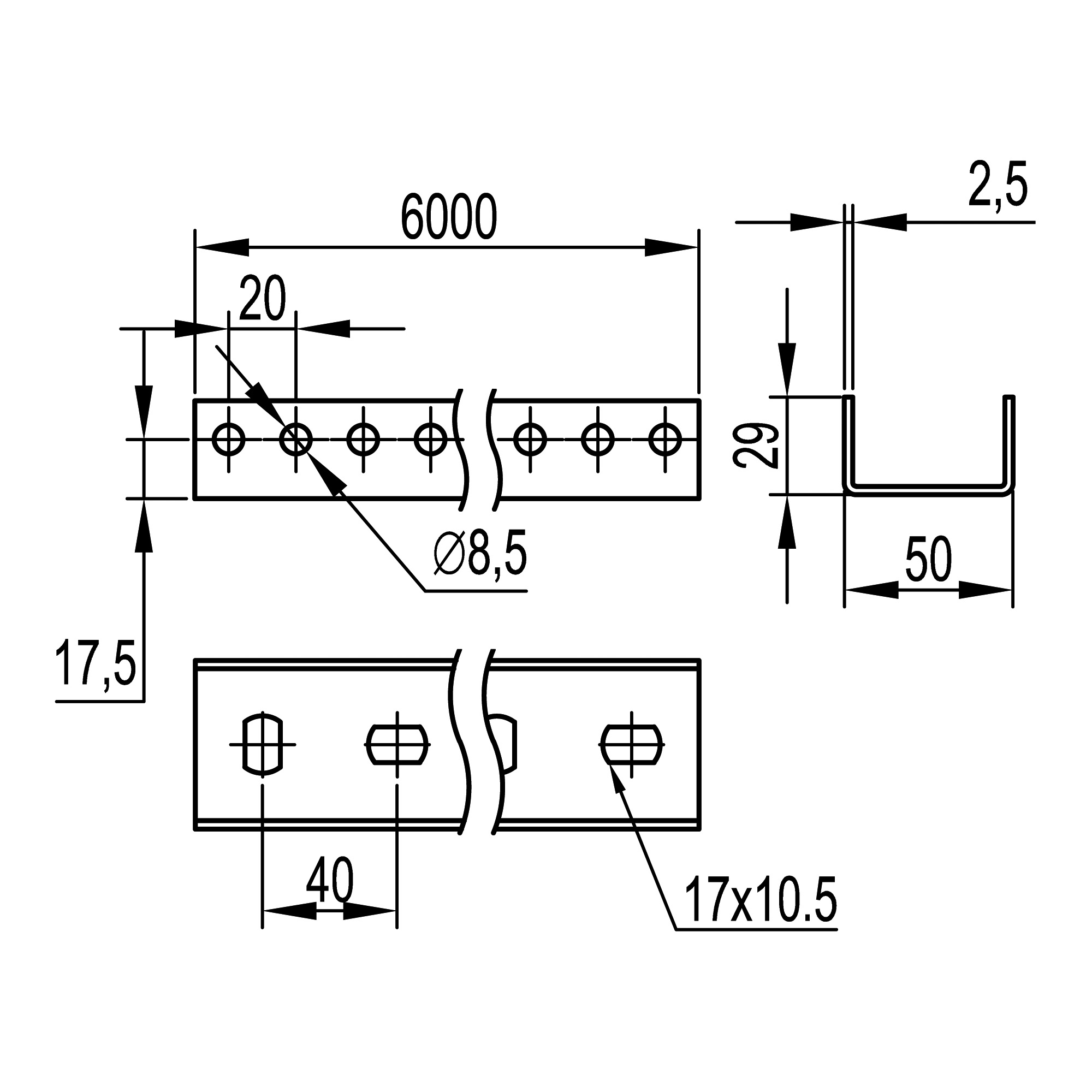

Drawings
