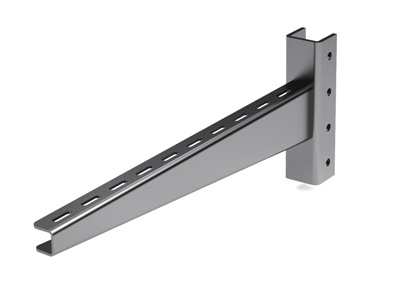

Bracket with quick hookup BBF, L200, thickness 2,5 mm

Code: BBF6020
Bracket with quick hookup BBF, L200, thickness 2,5 mm
Bracket with quick hookup BBF, L200, thickness 2,5 mm

Bracket with quick hookup BBF, L200, thickness 2,5 mm

Code: BBF6020
Colour Light grey
Width, mm 51
Model Clamping console
Height, mm 200
Surface protection Sendzimir galvanized
Length, mm 271
Material Steel
Load bearing capacity, kN 4.4
Suitable for circuit integrity Yes
Material Pre-galvanized
Accessories
Analogs

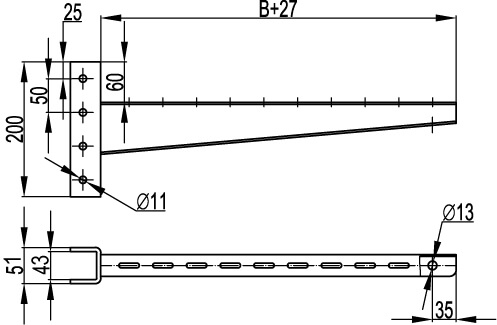

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
ZIP
1.4 Mb
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
RAR
313.39 Kb
ZIP
726.23 Kb
RAR
5.28 Mb
ZIP
16.63 Mb
RAR
13.65 Mb
