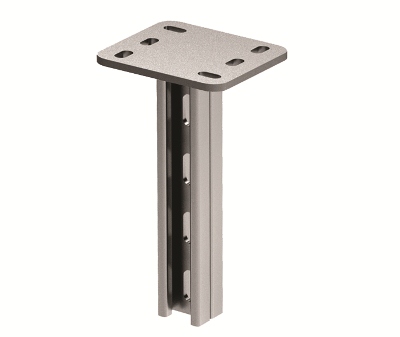

Double vertical bracket support 41х21, L1000, thickness 2,5mm
Code:
BSD2110
Double vertical bracket support 41х21, L1000, thickness 2,5mm
Code:
BSD2110
Colour | Light grey |
Width, mm | 120 |
Model | Pendant bar |
Height, mm | 120 |
Surface protection | Galvanic/electrolytic zinc plated |
Diameter, mm | 10.5 |
Adjustable | No |
Hinging | No |
Material quality | Other |
Length, mm | 1000 |
Material | Steel |
Thread size (metric) | 10 |
Suitable for circuit integrity | No |
Width, mm | 120 |
Length, mm | 1000 |
Thickness of metal sheet, mm | 2,5 |
Type | Vertical supports and traverses |
Material | Pre-galvanized |
Accessories
Analogs

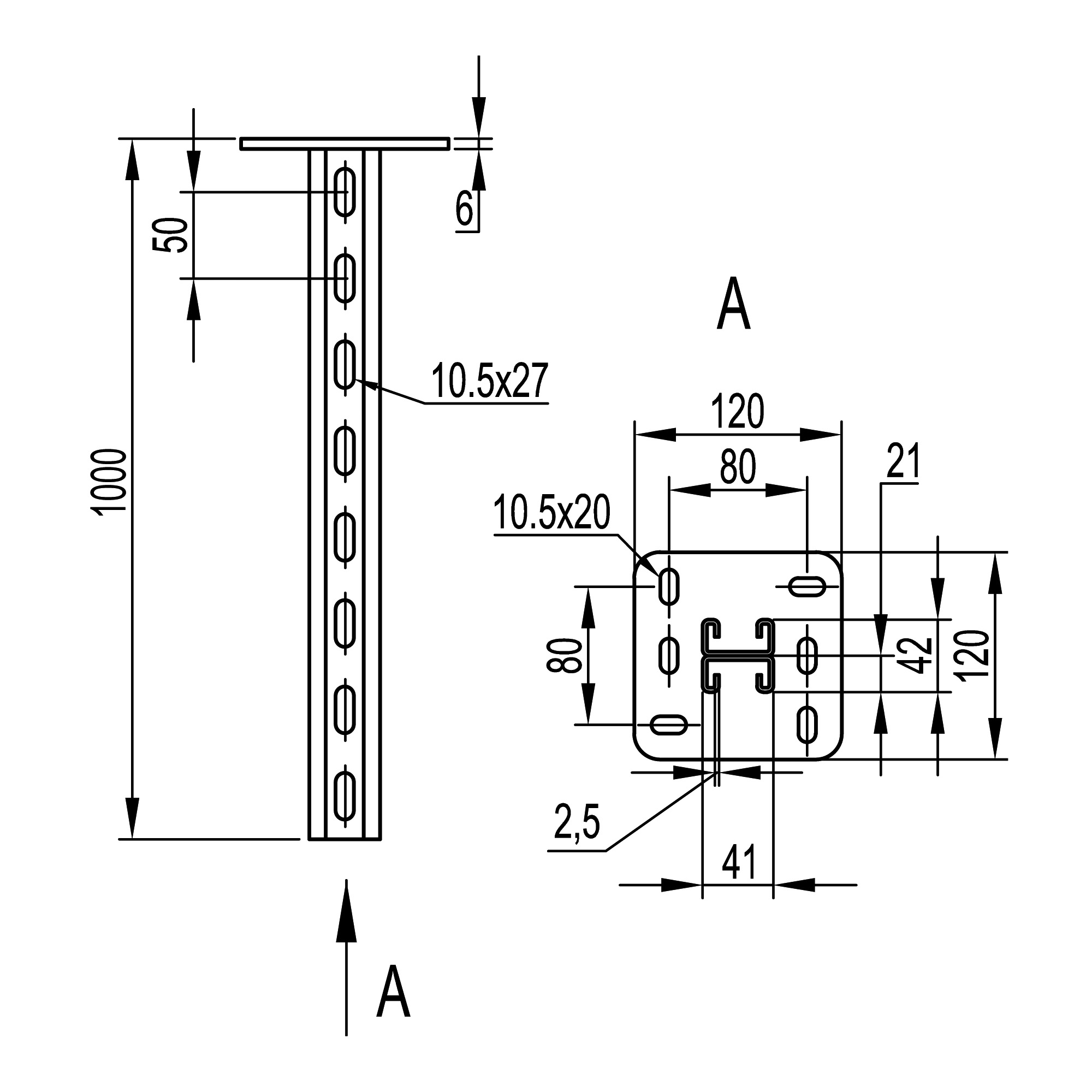

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
